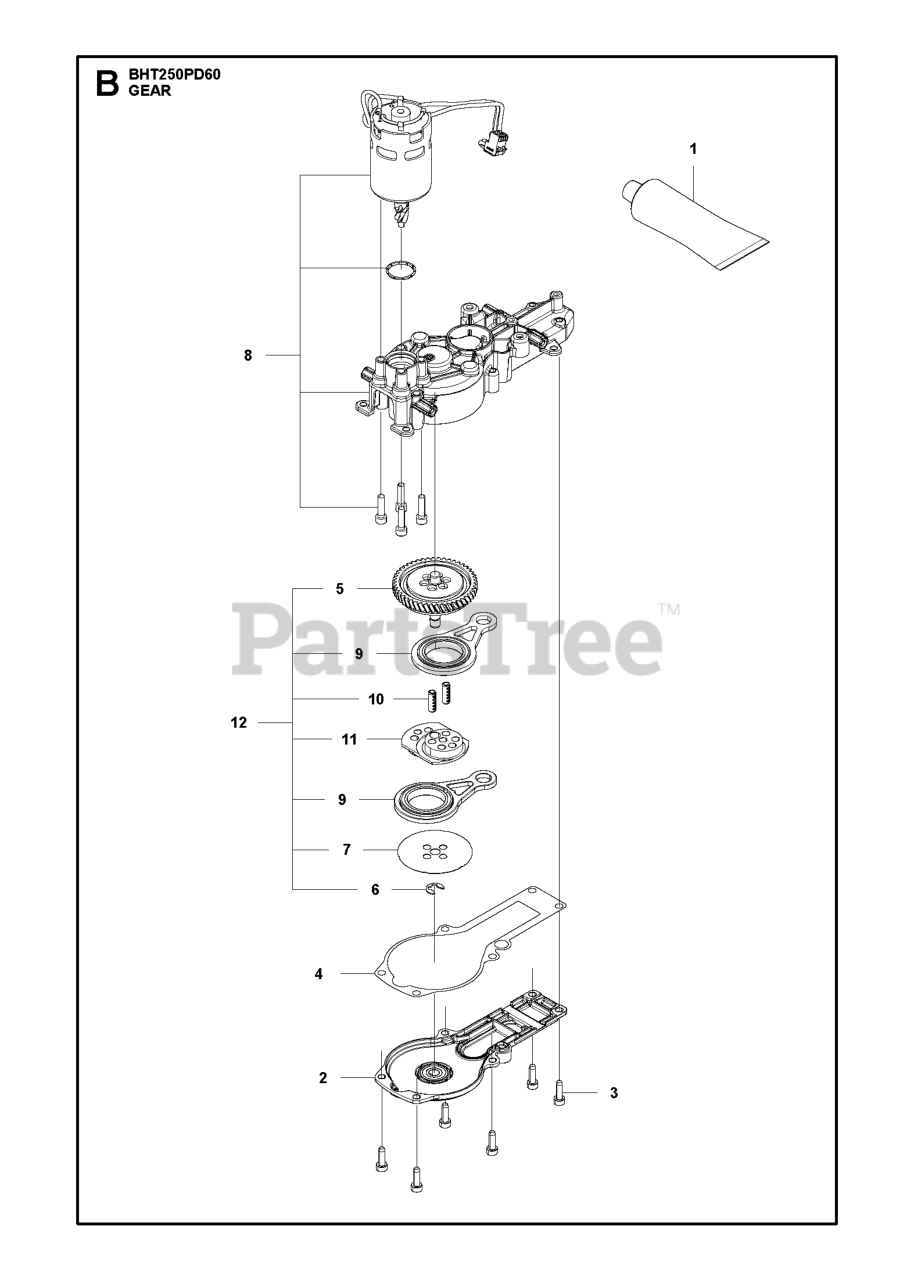

BHT 250 PD-60 - RedMax Hedge Trimmer GEARS Parts Diagram

Hedge Trimmer

GEARS Parts Diagram

  • Title

1

RedMax 503989603

GREASE 20G HEDGE TRIMMER GEAR

$34.99

$

Usually ships in 3-10 days

0

2

RedMax 577834503

BASEPLATE ASSEMBLY UNBRANDED

$

$

Not available

3

RedMax 503216872

SCREW IHSCFT

$6.49

$

Usually ships in 3-10 days

0

4

RedMax 584411001

GASKET

$5.99

$

Usually ships in 3-10 days

0

5

RedMax 582363001

HELICAL GEAR CPL DC

$145.99

$

Usually ships in 3-10 days

0

6

RedMax 578054901

LOCK WASHER

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 522714601

WASHER DISK DISC

$6.99

$

Usually ships in 3-10 days

0

8

RedMax 582386701

MOTOR ASSY MOTOR-GEARBOX ASSY

$193.99

$

Usually ships in 3-10 days

0

9

RedMax 582363101

CONNECTING ROD ASSY

$72.99

$

Usually ships in 3-10 days

0

10

RedMax 578002701

HEAVY DUTY DOWEL PIN PROJEKT 1

$3.49

$

Usually ships in 3-10 days

0

11

RedMax 581838501

ECCENTRIC DISC

$

$

Not available

12

RedMax 582837001

GEAR HELICAL KIT 536LIHD60X/ 5

$241.99

$

Usually ships in 3-10 days

0
