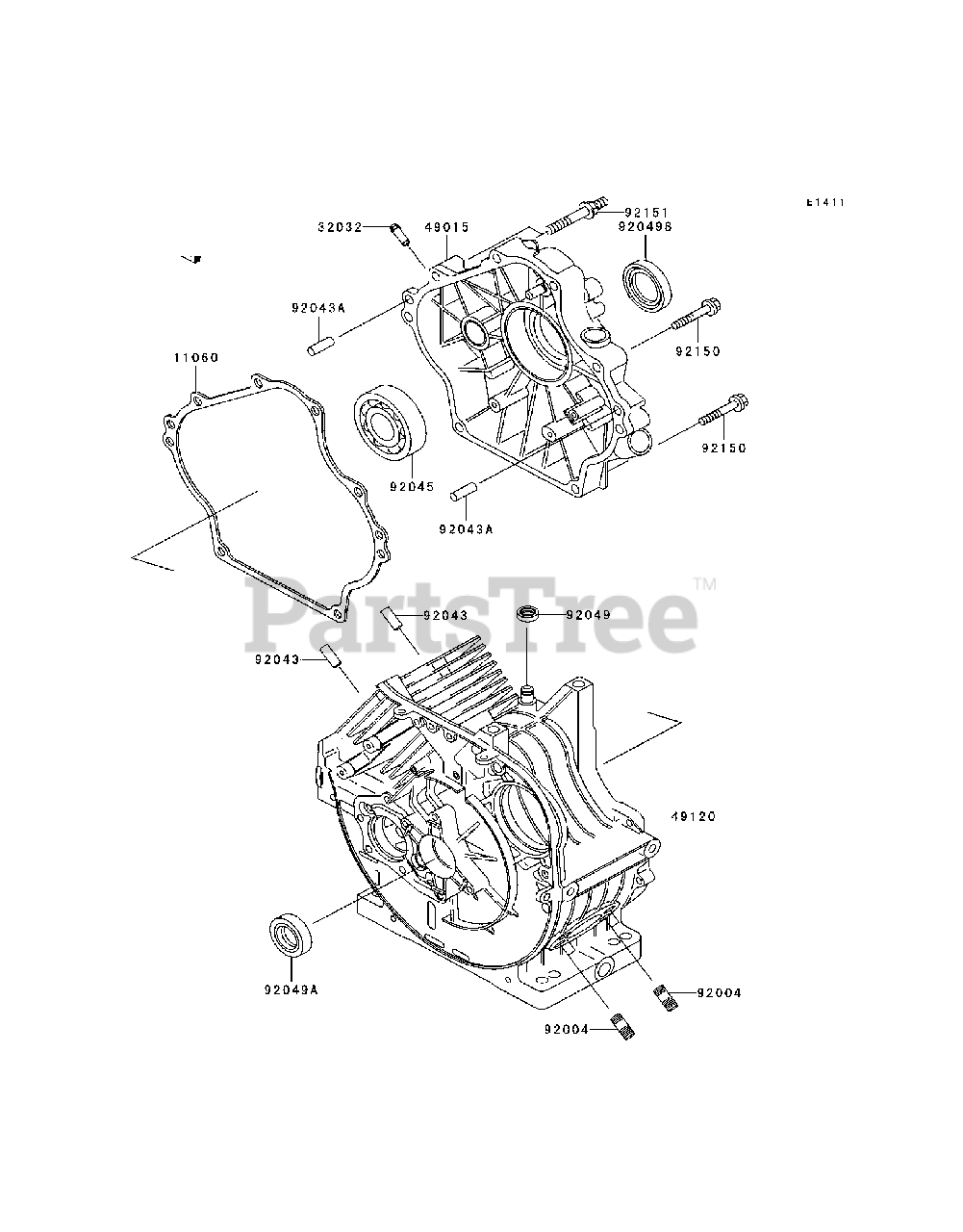

Big Country 414 (37AN414G710) - Cub Cadet 4x2 Utility Vehicle Engine Crankcase Parts Diagram

4x2 Utility Vehicle

Engine Crankcase Parts Diagram

  • Title

11060

Cub Cadet KM-11060-2122

Gasket,Crankcase Cover

$11.99

$

In Stock, Qty 5

0

32032

Cub Cadet KM-32032-3001

Pipe, Pulse

$

$

Not available

49015

Cub Cadet KM-49015-6264

Cover, Crankcase

$

$

Not available

49120

Cub Cadet KM-49120-2211

Crankcase-Comp

$

$

Not available

92004

Cub Cadet KM-92004-2083

Stud, 6 x 14

$1.99

$

Usually ships in 2-5 days

0

92043

Cub Cadet KM-92043-1037

Pin, Dowel, 10 x 14

$0.99

$

In Stock, Qty 18

0

92043A

Cub Cadet KM-92043-1263

Pin, 6.2 x 8 x 14

$0.99

$

In Stock, Qty 20+

0

92045

Cub Cadet KM-92045-2168

Bearing-Ball,6306JRCM

$41.99

$

Usually ships in 2-5 days

0

92049

Cub Cadet KM-92049-2097

Seal-Oil, VC-6X10X2.5

$2.49

$

In Stock, Qty 10

0

92049A

Cub Cadet KM-92049-2199

Seal-Oil

$6.49

$

In Stock, only 1 left!

0

92049B

Cub Cadet KM-92049-2220

Seal-Oil

$9.49

$

In Stock, only 3 left!

0

92150

Cub Cadet KM-92150-2252

Bolt, 8 x 45

$2.49

$

Usually ships in 2-5 days

0

92151

Cub Cadet KM-92151-2060

Bolt

$5.49

$

Usually ships in 2-5 days

0
