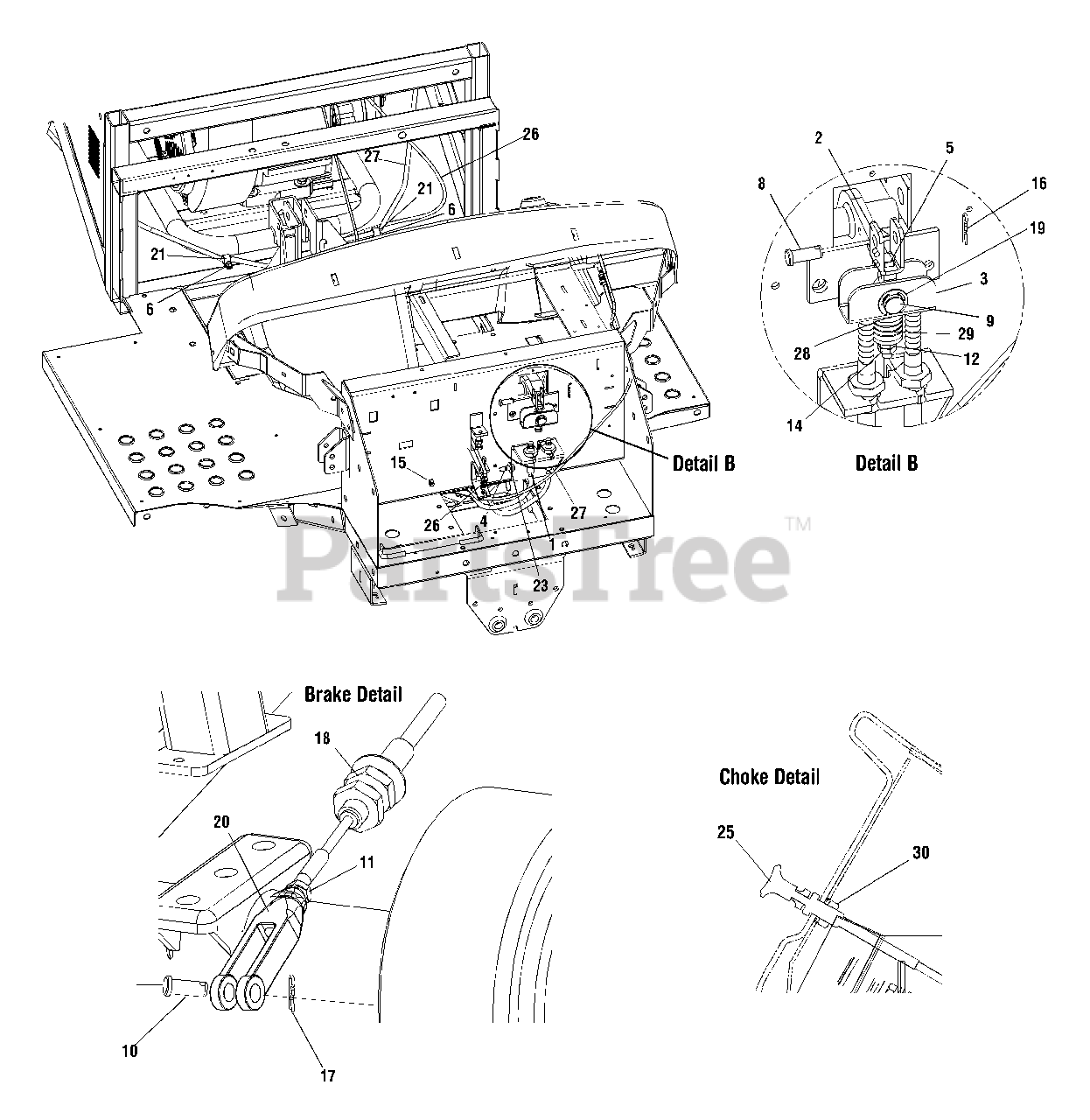

Big Country 414 (37AN414J710) - Cub Cadet 4x2 Utility Vehicle Cables Parts Diagram

4x2 Utility Vehicle

Cables Parts Diagram

  • Title

1

Cub Cadet 746-04072A

Cable, Control, Brake

$

$

Not available

2

Cub Cadet 707-04199

Mount,Cable
(Superseded to 707Z04199)

$17.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-04200

Bracket, Equalizer

$33.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04027

Screw, Shoulder, .375 x .375

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-1266

Screw, 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0599

Screw, Self-Tapping

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-0173

Pin, Clevis 375 x.969
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

9

Cub Cadet 711-04024

Pin, Clevis.625 OD x 1.37
(Superseded to 911-04024)

$25.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-0653

Pin, Clevis.312 OD x 1.0

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0256

Nut, Jam 5/16-24

$

$

Not available

12

Cub Cadet 712-3010

Nut, Hex 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3007

Nut, Jam 5/16-18

$6.99

$

In Stock, Qty 5

0

15

Cub Cadet 712-3009

Hexlock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0104

Pin, Cotter, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0507

Pin, Cotter 3-32 x.750

$4.49

$

In Stock, only 4 left!

0

18

Cub Cadet 716-0104

E-Ring for.500 Dia Shaft
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 17

0

19

Cub Cadet 716-0106A

E-Ring.625 Shaft

$5.49

$

In Stock, Qty 15

0

20

Cub Cadet 719-3018

Yoke, 5/16-24

$43.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 726-04000

Clamp

$

$

Not available

23

Cub Cadet 736-0159

Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 746-04136

Cable, Control, Choke

$61.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 746-04140

Cable, Control, Throttle
(Superseded to 946-04140)

$89.99

$

In Stock, only 2 left!

0

27

Cub Cadet 746-04124

Cable, Control, Brake
(Superseded to 946-04124)

$

$

Not available

28

Cub Cadet 750-04194

Spacer,.466 OD x.443

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-04099

Washer, Belleville,.937 x.328 x.07

$

$

Not available

30

Cub Cadet 712-0181

Nut, 3/8-16 T-Lock

$4.49

$

In Stock, Qty 5

0
