Big Country 414 (37AN414J710) - Cub Cadet 4x2 Utility Vehicle Engine - Converter Cover/Drive Belt Parts Diagram

4x2 Utility Vehicle

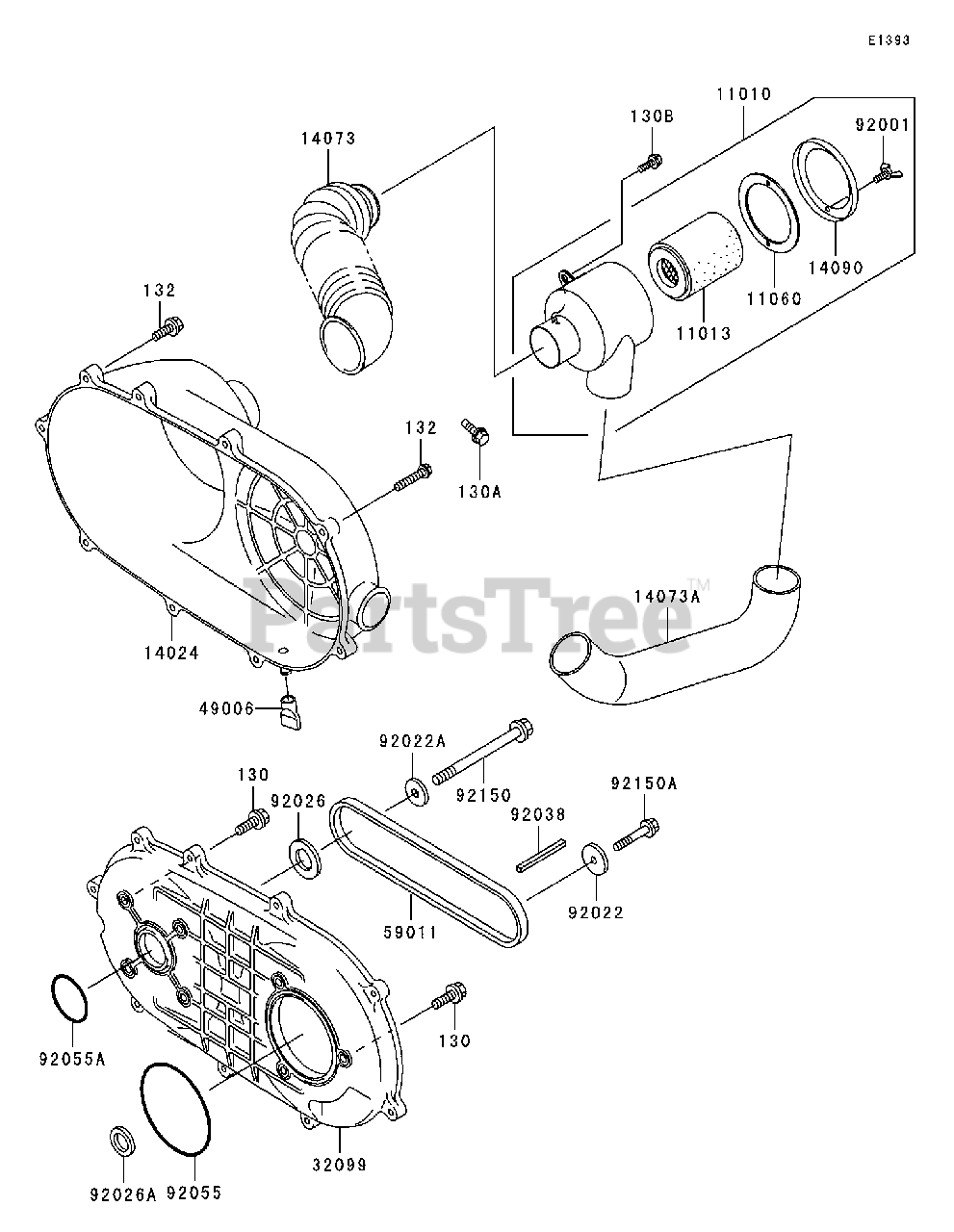

Engine - Converter Cover/Drive Belt Parts Diagram

  • Title
11010

Cub Cadet KM-11010-1735

Filter-Ass'y-Air

$

$

Not available

11013

Cub Cadet KM-11013-1263

Element-Air Filter

$

$

Not available

11060

Cub Cadet KM-11060-1975

Gasket, Air Filter Case

$

$

Not available

14024

Cub Cadet KM-14024-1981

Cover, Belt Converter

$

$

Not available

14073

Cub Cadet KM-14073-1492

Duct, Belt Converter

$

$

Not available

14073A

Cub Cadet KM-14073-1681

Duct, Air Filter

$

$

Not available

14090

Cub Cadet KM-14090-1766

Cover, Air Filter

$

$

Not available

32099

Cub Cadet KM-32099-1125

Case, Belt Converter

$

$

Not available

$

$

Not available

$

$

Not available

92001

Cub Cadet KM-92001-1703

Bolt, Wing, 6 x 15

$

$

Not available

92022

Cub Cadet KM-92022-1633

Washer, 8.5 x 36 x 4

$

$

Not available

92022A

Cub Cadet KM-92022-1641

Washer, 10 x 32 x 4.5

$

$

Not available

$

$

Not available

92026A

$

$

Not available

$

$

Not available

$

$

Not available

92055A

Cub Cadet KM-92055-1501

Ring-O, 50 x 4

$

$

Not available

92150

Cub Cadet KM-92150-1441

Bolt, 10 x 102

$

$

Not available

92150A

$

$

Not available

130

Cub Cadet KM-130D0820

Bolt - Flanged

$

$

Not available

130A

Cub Cadet KM-130J0616

Bolt-Flanged,6X16,Black

$

$

Not available

130B

Cub Cadet KM-130J0816

Bolt-Flanged,8X16,Black

$

$

Not available

132

Cub Cadet KM-132J0630

Bolt-Flanged-Small
(Superseded to KM-132BB0630)

$

$

Not available
