Big Country 414 (37AN414J710) - Cub Cadet 4x2 Utility Vehicle Engine - Crankshaft/Piston Parts Diagram

4x2 Utility Vehicle

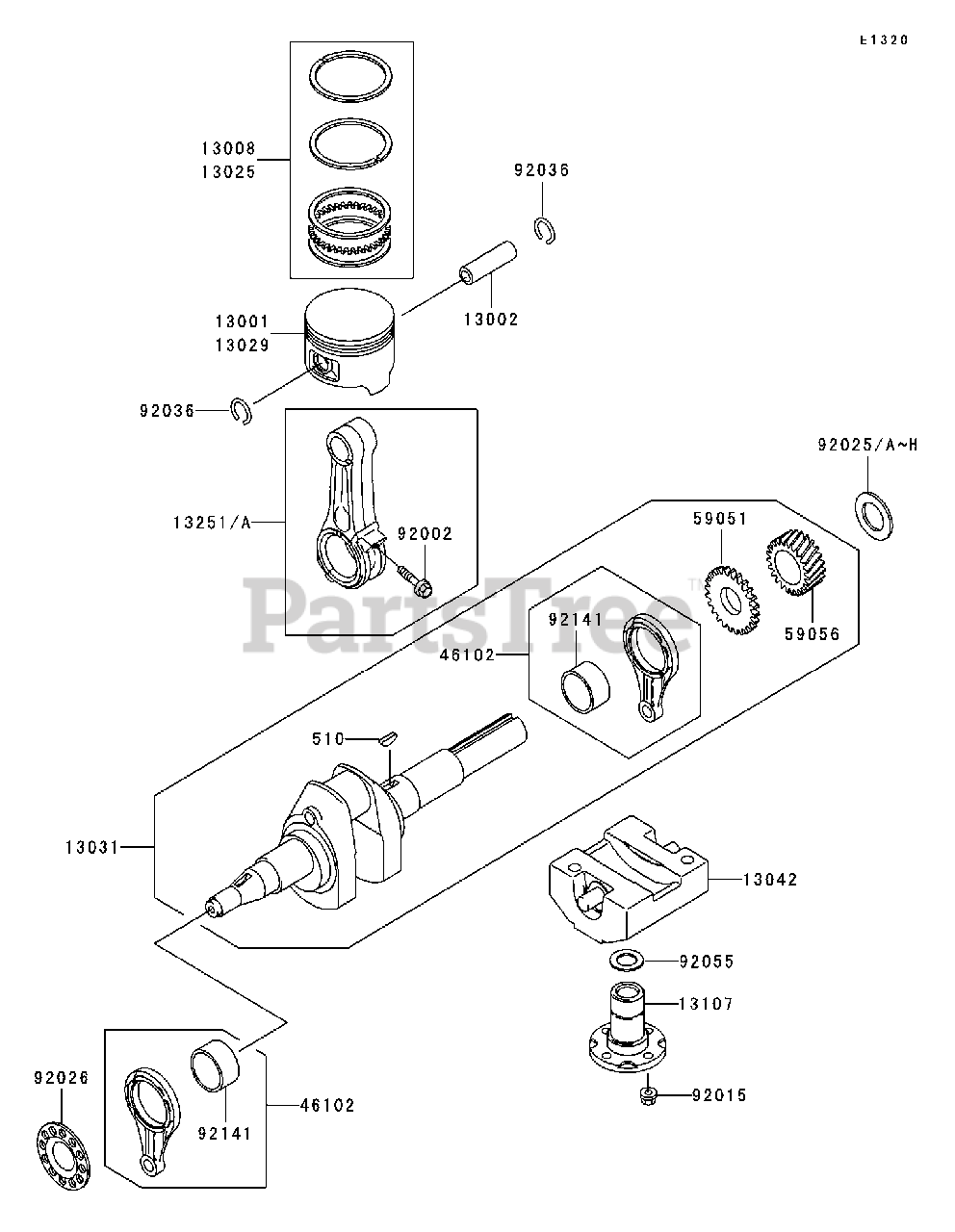

Engine - Crankshaft/Piston Parts Diagram

  • Title

13001

Cub Cadet KM-13001-2125

Piston-Engine, Std

$

$

Not available

13002

Cub Cadet KM-13002-2069

Pin-Piston

$10.99

$

In Stock, only 1 left!

0

13008

Cub Cadet KM-13008-6007

Ring-Set-Piston, Std

$37.99

$

In Stock, Qty 8

0

13025

Cub Cadet KM-13025-2074

Ring-Set-Piston L, 0.50

Note: As Required

$44.99

$

Usually ships in 2-5 days

0

13029

Cub Cadet KM-13029-2101

Piston-Engine L, 0.50
(Superseded to KM-13029-2128)

Note: As Required

$42.16

$

Usually ships in 2-5 days

0

13031

Cub Cadet KM-13031-2060

Crankshaft, Comp

$396.99

$

Usually ships in 2-5 days

0

13042

Cub Cadet KM-13042-6009

Weight

$128.99

$

Usually ships in 2-5 days

0

13107

Cub Cadet KM-13107-2088

Shaft

$21.99

$

In Stock, only 2 left!

0

13251

Cub Cadet KM-13251-6034

Rod-Assy-Conn, US=0.5
(Superseded to KM-13251-2079)

Note: As Required

$78.99

$

Usually ships in 2-5 days

0

13251A

Cub Cadet KM-13251-6056

Rod-Assy-Connecting
(Superseded to KM-13251-2077)

$71.99

$

In Stock, only 4 left!

0

46102

Cub Cadet KM-46102-6004

Rod

$43.99

$

In Stock, only 3 left!

0

59051

Cub Cadet KM-59051-2097

Gear-Spur

$31.99

$

Usually ships in 2-5 days

0

59056

Cub Cadet KM-59056-2993

Gear-Helical

$41.99

$

In Stock, only 1 left!

0

92002

Cub Cadet KM-92002-2053

Bolt

$6.99

$

In Stock, only 1 left!

0

92015

Cub Cadet KM-92015-1193

Nut, Flanged,6MM
(Superseded to KM-92015-1367)

$4.49

$

In Stock, Qty 7

0

92025

Cub Cadet KM-92025-2168

Shim, T=1.13

Note: As Required

$4.49

$

Usually ships in 2-5 days

0

92025A

Cub Cadet KM-92025-2169

Shim, T=1.18

Note: As Required

$4.99

$

Usually ships in 2-5 days

0

92025B

Cub Cadet KM-92025-2170

Shim, T=1.23

Note: As Required

$4.99

$

In Stock, only 1 left!

0

92025C

Cub Cadet KM-92025-2171

Shim, T=1.28

Note: As Required

$4.99

$

Usually ships in 2-5 days

0

92025D

Cub Cadet KM-92025-2172

Shim, T=1.33

Note: As Required

$4.99

$

Usually ships in 2-5 days

0

92025E

Cub Cadet KM-92025-2173

Shim, T=1.38

Note: As Required

$4.99

$

Usually ships in 2-5 days

0

92025F

Cub Cadet KM-92025-2174

Shim, T=1.43

Note: As Required

$4.99

$

Usually ships in 2-5 days

0

92025G

Cub Cadet KM-92025-2175

Shim, T=1.48

Note: As Required

$4.99

$

Usually ships in 2-5 days

0

92025H

Cub Cadet KM-92025-2207

Shim, T=1.53

Note: As Required

$4.99

$

In Stock, only 1 left!

0

92026

Cub Cadet KM-92026-2052

Spacer

$14.99

$

In Stock, only 1 left!

0

92036

Cub Cadet KM-92036-008

Ring-Snap, Piston Pin

$0.99

$

In Stock, Qty 20+

0

92055

Cub Cadet KM-92055-2072

Ring-O

$1.49

$

In Stock, Qty 20+

0

92141

Cub Cadet KM-92141-2090

Bearing-Plane

$8.49

$

In Stock, Qty 7

0

510

Cub Cadet KM-510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 10

0
