Big Country 420 (37AR420A100) - Cub Cadet 4x2 Utility Vehicle Transmission Input Shaft Assembly Parts Diagram

4x2 Utility Vehicle

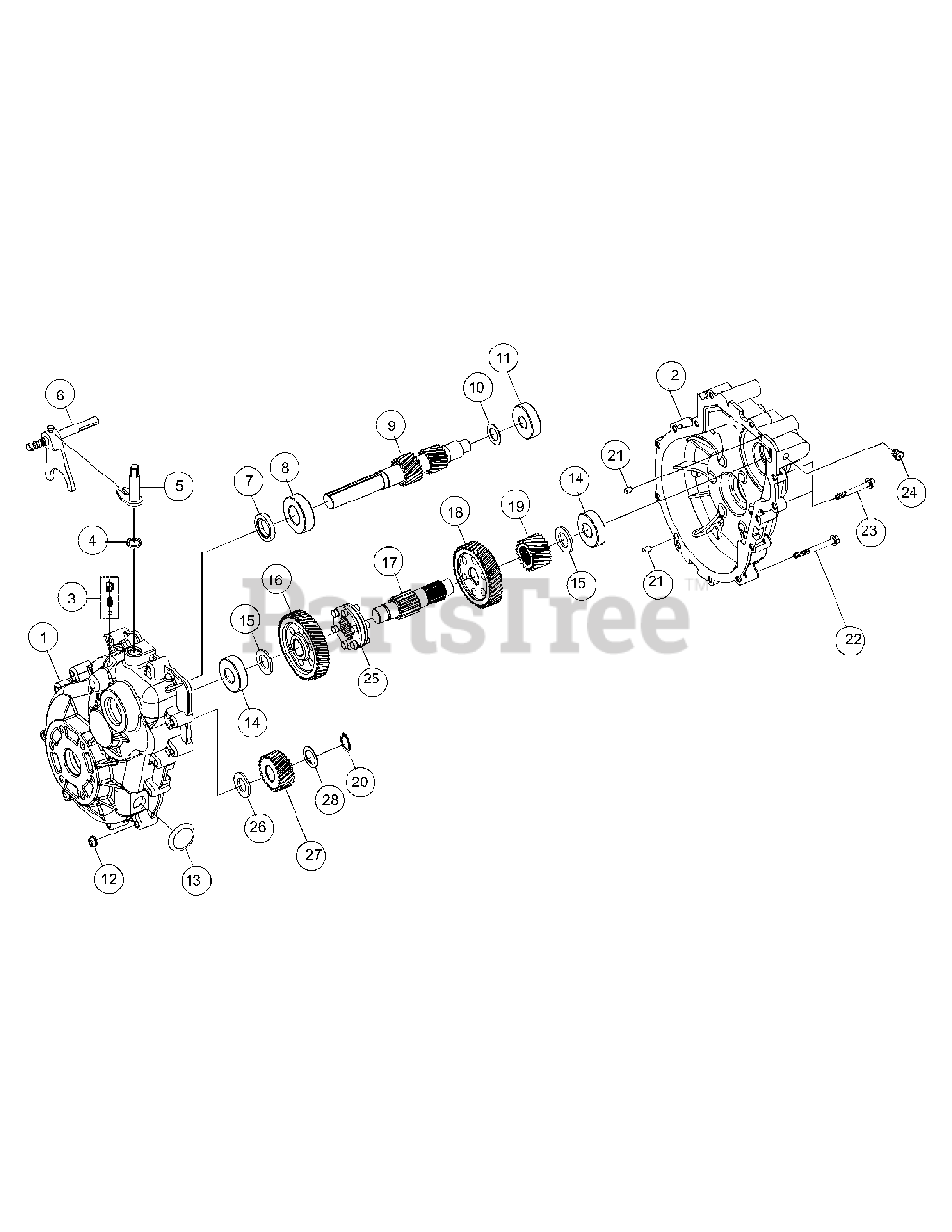

Transmission Input Shaft Assembly Parts Diagram

  • Title

1

Cub Cadet DC-012CH254-3

Housing, Axle, w/Idler Shaft

Note: ( use Loctite 518 or equivalent between housings)

$

$

Currently unavailable

2

Cub Cadet DC-012CH240

Housing, Axle, Finished

Note: ( use Loctite 518 or equivalent between housings)

$245.99

$

Usually ships in 3-6 days

0

3

Cub Cadet DC-012LK133

Kit, Detent

$

$

Not available

4

Cub Cadet DC-012HH122

Seal, Oil

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet DC-012GV164X

Assembly, Actuator

$

$

Not available

6

Cub Cadet DC-012SV112X

Assembly, Shift Rod

$61.99

$

Usually ships in 3-6 days

0

7

Cub Cadet DC-012HH128

Seal, Oil

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet DC-585965

Bearing, Ball

$21.99

$

Usually ships in 3-6 days

0

9

Cub Cadet DC-012GS307

Shaft, Input

$397.99

$

Usually ships in 3-6 days

0

10

Cub Cadet DC-012LK134

Kit, Shim

Note: (as required)

$

$

Not available

11

Cub Cadet DC-012HD111

Bearing, Ball

$14.99

$

Usually ships in 3-6 days

0

12

Cub Cadet DC-012HN120

Nut, Lock

$5.49

$

Usually ships in 3-6 days

0

13

Cub Cadet DC-41356

Plug, Rubber
(Superseded to DC-002HG101)

$16.99

$

Usually ships in 3-6 days

0

14

Cub Cadet DC-012HD129

Bearing, Ball

$36.99

$

Usually ships in 3-6 days

0

15

Cub Cadet DC-012HS121

Spacer, Flat

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet DC-012GS202X

Gear Assembly, Forward

$188.99

$

Usually ships in 3-6 days

0

17

Cub Cadet DC-012GS200

Shaft, Intermediate

$112.99

$

Usually ships in 3-6 days

0

18

Cub Cadet DC-012GS204X

Gear Assembly, Reverse

$252.99

$

Usually ships in 3-6 days

0

19

Cub Cadet DC-012GS215

Gear, Helical (Pinion)

$84.99

$

Usually ships in 3-6 days

0

20

Cub Cadet DC-012HR128

Ring Retaining

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet DC-012HP120

Pin, Dowel

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet DC-012HM110-1

Screw, Flange Head

$5.49

$

Usually ships in 3-6 days

0

23

Cub Cadet DC-012HM110-2

Screw, Flange Head

$

$

Not available

24

Cub Cadet DC-012HN140

Vent

$7.49

$

Usually ships in 3-6 days

0

25

Cub Cadet DC-012GS302

Gear, Clutch

$140.99

$

Usually ships in 3-6 days

0

26

Cub Cadet DC-012HS126

Washer, Thrust

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet DC-012GS207X

Gear, Assembly, Idler

$

$

Not available

28

Cub Cadet DC-012HS125

Washer, Thrust

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet DC-012KD114

Ball Bearings Kit

Note: (not shown, includes ref. no. 8, 11, 14)

$

$

Currently unavailable

Cub Cadet DC-012KG106

Internal Gears Kit

Note: (not shown, includes ref. no. 9, 16, 18, 19, 27)

$

$

Currently unavailable
