Big Country 430D Yellow (37AB430D710) - Cub Cadet 4x2 Utility Vehicle Electrical System (Part 2) Parts Diagram

4x2 Utility Vehicle

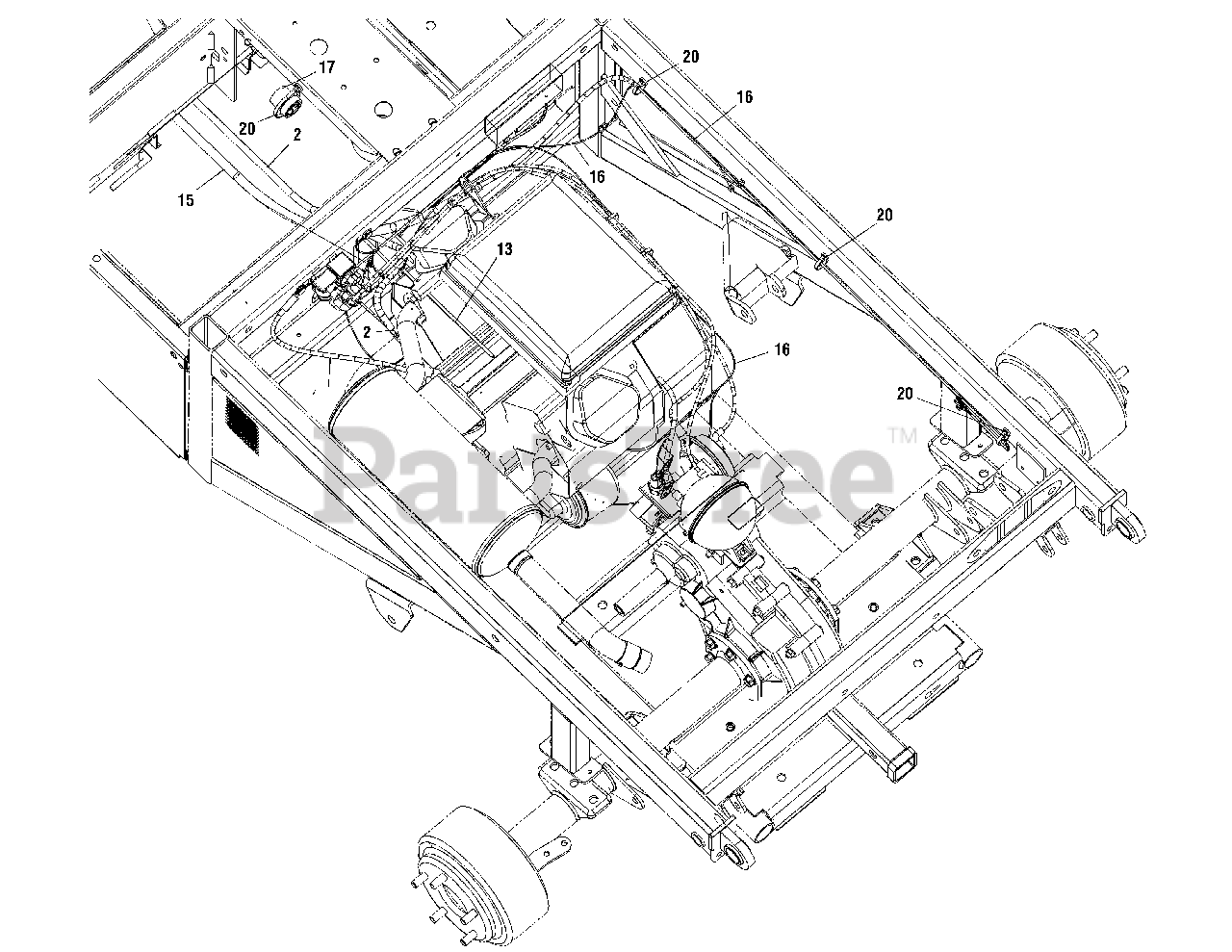

Electrical System (Part 2) Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Retainer Hook
(Superseded to 96606)

$6.99

$

In Stock, Qty 14

0

2

Cub Cadet 629-04054

Harness Assembly, Starter
(Superseded to 929-04054)

$

$

Not available

3

Cub Cadet 629-04060

Harness Assembly, Motor Ground

$

$

Not available

4

Cub Cadet 710-04030

Screw, 1/4-20 x .50

$

$

Not available

5

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0607

Screw, Self-tapping, 5/16-18 x .50

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0703

Screw, Hex Carriage, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0788

Screw, Self-tapping, 1/4-20 x 1.000

$6.99

$

In Stock, only 4 left!

0

9

Cub Cadet 710-3009

Screw, #10-24 x 0.75

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 721-3049

Cover, Protective

$

$

Not available

12

Cub Cadet 723-3064

Strap, Battery

$27.99

$

In Stock, only 4 left!

0

13

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

14

Cub Cadet 725-04059A

Control, Shaft

$142.99

$

In Stock, only 1 left!

0

15

Cub Cadet 725-04295

Harness, Utility Main
(Superseded to 925-04295)

$

$

Not available

16

Cub Cadet 629-04140

Harness, Motor Kohler

$

$

Not available

17

Cub Cadet 725-04069

Control, Reverse
(Superseded to 925-04069)

$131.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725-1657A

Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

19

Cub Cadet 725-1738A

Battery
(Superseded to 925-1707D)

$

$

Not available

20

Cub Cadet 726-0154

Cable Tie Push Mount 7.5 LG
(Superseded to 926-0154)

$5.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

23

Cub Cadet 728-04004

Pop Rivet.188
(Superseded to 928-04004)

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet 736-0222

Lock Washer 1/4 exterbak

$5.49

$

In Stock, only 3 left!

0

25

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable
