Big Country 431 Camo (37AB431D710) - Cub Cadet 4x2 Utility Vehicle Air Intake/Filtration Parts Diagram

4x2 Utility Vehicle

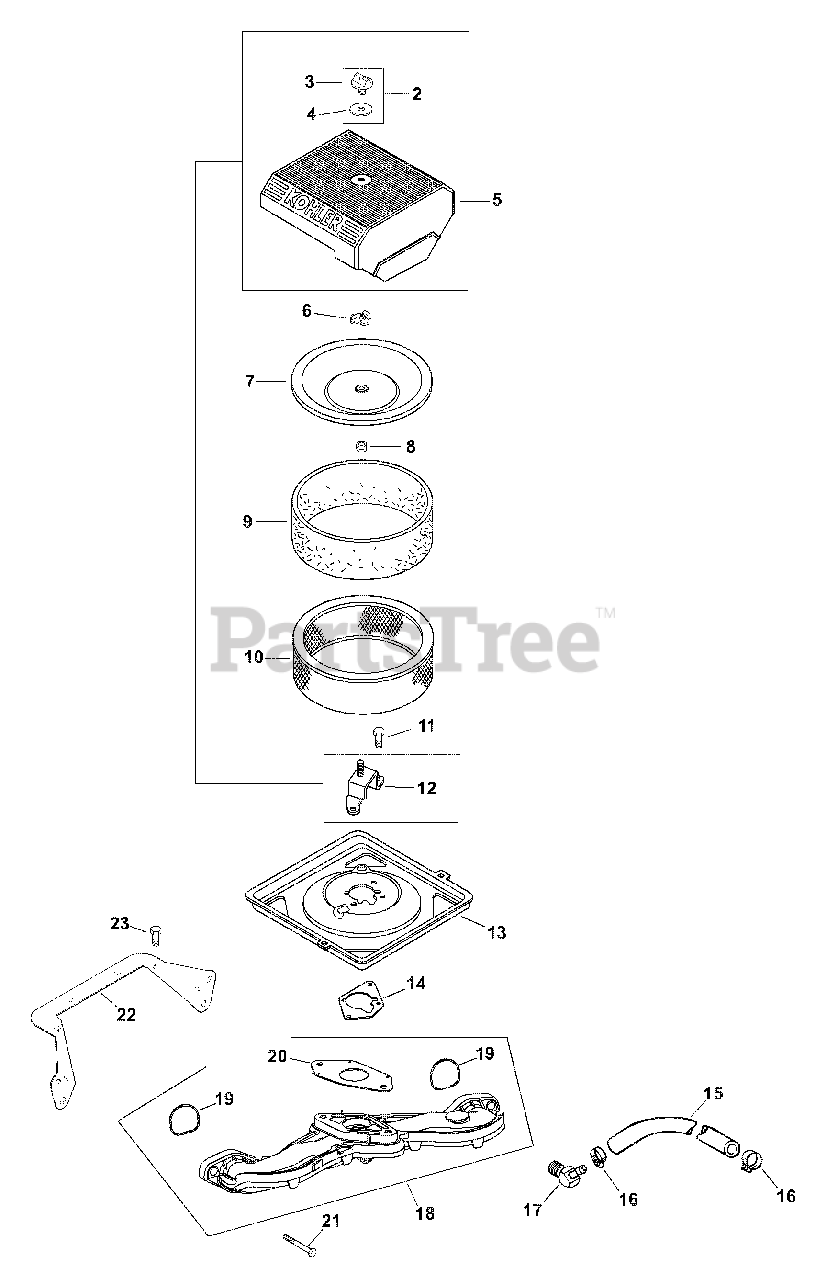

Air Intake/Filtration Parts Diagram

  • Title

1

Cub Cadet KH-24-743-08

Kit, air cleaner cover

Note: (Includes 2-5,12)

$

$

Not available

2

Cub Cadet KH-54-755-01-S

Kit, knob with seal

Note: (Includes 3,4)

$9.49

$

In Stock, Qty 18

0

3

Cub Cadet KH-20-341-01-S

Knob, cover
(Superseded to KH-25-341-04-S)

$7.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-153-20-S

Seal, air cleaner cover knob

$3.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-096-69-S

Cover, air cleaner

$47.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-100-01

Wing Nut

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-24-096-01

Cover, inner air cleaner

$

$

Not available

8

Cub Cadet KH-24-032-03

Seal, inner air cleaner

$4.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-083-02

Precleaner, element
(Superseded to 4788303S1C)

$27.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-47-083-03

Element, air cleaner
(Superseded to 4788303S1C)

$27.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-24-086-53-S

Screw, hex. flange M6x1.0x16

$2.99

$

In Stock, only 3 left!

0

12

Cub Cadet KH-24-126-21

Bracket, air cleaner base
(Superseded to KH-24-126-206-S)

$10.99

$

In Stock, only 2 left!

0

13

Cub Cadet KH-24-094-24-S

Base, air cleaner
(Superseded to KH-24-094-84-S)

$18.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-24-041-06

Gasket, air cleaner base

$2.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-15-353-02

Line, fuel
(Superseded to 751-10349-22)

$

$

Not available

16

Cub Cadet KH-25-237-14-S

Clamp, hose
(Superseded to KH-25-237-31-S)

$5.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-25-155-02

Connector, pulse fitting

$

$

Not available

18

Cub Cadet KH-24-164-55-S

Manifold, intake
(Superseded to KH-24-164-93-S)

Note: (Includes 19,20)

$232.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-24-153-27-S

O-Ring, intake port

$3.99

$

In Stock, Qty 8

0

20

Cub Cadet KH-24-041-53-S

Gasket, carburetor

$3.49

$

In Stock, only 2 left!

0

21

Cub Cadet KH-M-651040-S

Screw, hex. flange M6x1.0x40

$2.49

$

In Stock, only 3 left!

0

22

Cub Cadet KH-24-126-130-S

Bracket, air cleaner

$10.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-M-545010

Screw, hex. flange M5x0.8x10
(Superseded to KH-M-0545010)

$

$

Not available
