Big Country 435D Sports Edition Green (37AB435D710) - Cub Cadet 4x2 Utility Vehicle Engine - Blower Housing & Baffles Parts Diagram

4x2 Utility Vehicle

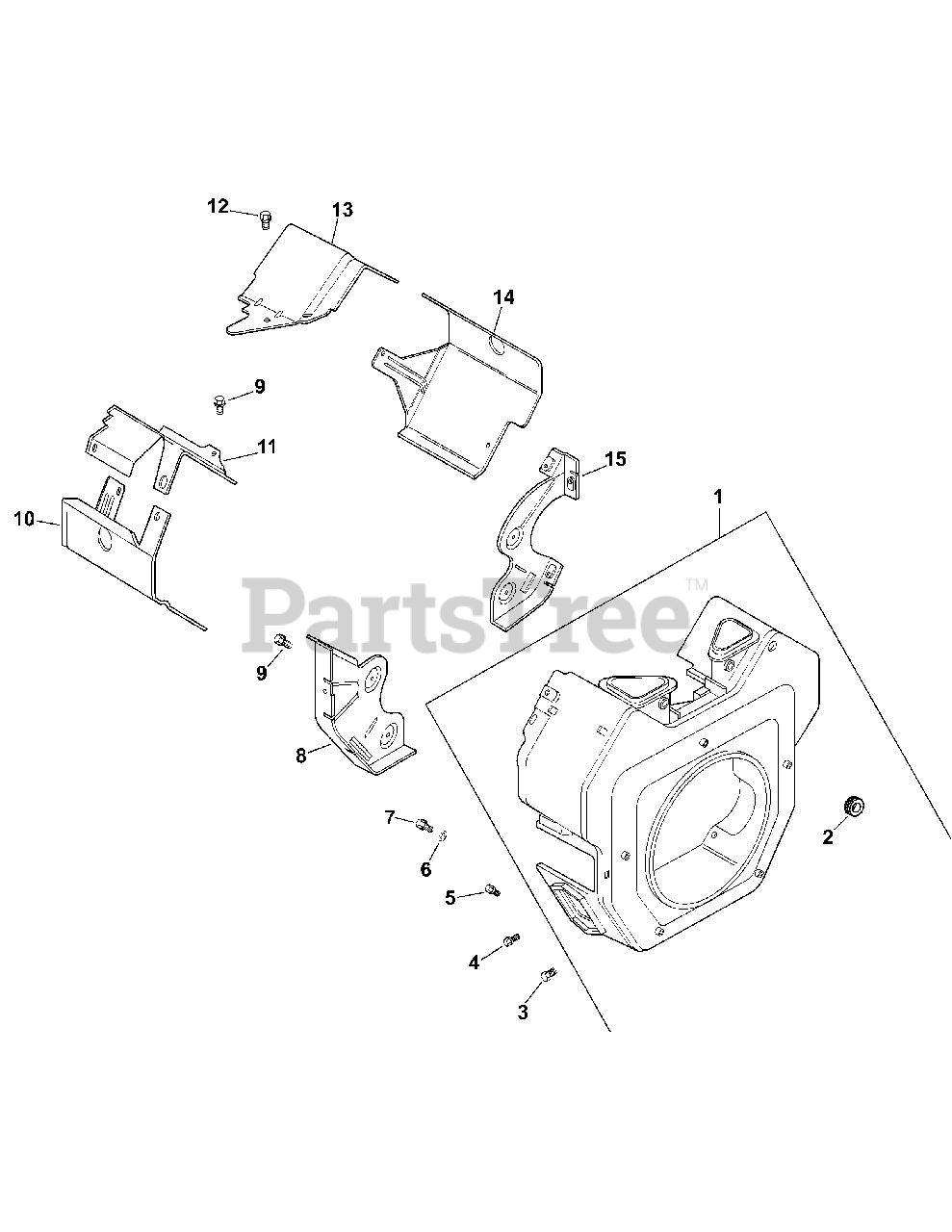

Engine - Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-163-S

Housing, blower

$

$

Not available

2

Cub Cadet KH-25-313-06-S

Grommet

$

$

Not available

3

Cub Cadet KH-M-551016-S

Screw, hex. flange M5x0.8x16

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-M-545016-S

Screw, hex. flange M5x0.8x16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-545020-S

Screw, hex. flange M5x0.8x20
(Superseded to KH-25-086-473-S)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-468-07-S

Washer, plain

$2.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-M-561025-S

Screw, hex. flange M5x0.8x25

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-146-16-S

Plate, backing - #2 side

$

$

Not available

9

Cub Cadet KH-M-645016-S

Screw, hex. flange M6x1.0x16

$4.99

$

In Stock, Qty 9

0

10

Cub Cadet KH-24-063-20

Baffle, cylinder barrel - #2 side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-063-70-S

Baffle, valley - #2 side

$

$

Not available

12

Cub Cadet KH-M-545010

Screw, hex. flange M5x0.8x10
(Superseded to KH-M-0545010)

$

$

Not available

13

Cub Cadet KH-24-063-59-S

Baffle, valley - #1 side
(Superseded to KH-24-063-93-S)

$5.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-063-58-S

Baffle, cylinder barrel - #1 side
(Superseded to KH-24-063-85-S)

$17.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-146-20-S

Plate, backing - #1 side

$

$

Not available

Cub Cadet KH-24-113-07

Decal, 18 HP (not shown)

$

$

Not available

Cub Cadet KH-25-113-39-S

Decal, clear lamination (not shown)
(Superseded to KH-25-113-79-S)

$2.49

$

In Stock, only 1 left!

0
