Big Country 640 (37AS640A100) - Cub Cadet 6x4 Utility Vehicle (SN: 1D302B & Before) Axle (Rear Suspension) Parts Diagram

6x4 Utility Vehicle

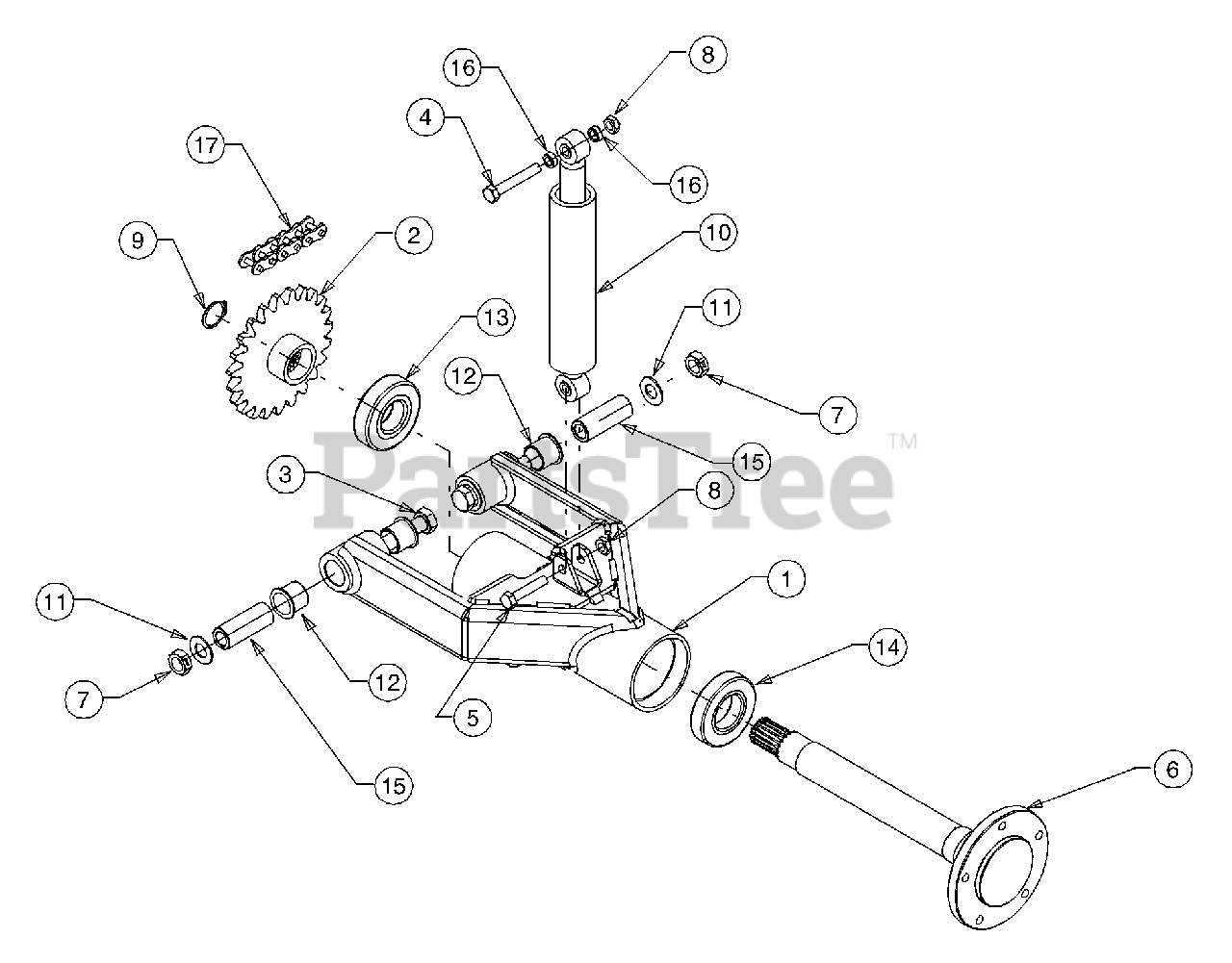

Axle (Rear Suspension) Parts Diagram

  • Title

1

Cub Cadet 607-0042

Axle Support Assembly, Rear Weld

$

$

Not available

2

Cub Cadet 607-04012

Sprocket Assembly, Rear, .75 - 23T
(Superseded to 713-04007)

$228.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0298

Screw, Hex, 5/8-18 x 3.5, Gr5

$9.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-04023

Screw, M10-1.25 x .65, Gr8

$

$

Not available

5

Cub Cadet 710-04024

Screw, M10-1.25 x .50, Gr8

$

$

Not available

6

Cub Cadet 711-1764

Axle Shaft, Rear Drive

$

$

Not available

7

Cub Cadet 712-0413

Jam Nut, Nylon Lock, 5/8-18

$6.99

$

In Stock, Qty 10

0

8

Cub Cadet 712-04006

Nut, Nylon Lock, M10 x 1.25

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 716-0401

Retaining Ring, External, 1.14

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-1189

Shock Absorber, 2.88 Stroke

$

$

Not available

11

Cub Cadet 736-0237

Washer, Flat, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 741-04001

Bearing, Flange, 1.0 x 1.125 x 1.0
(Superseded to 941-04030)

$

$

Not available

13

Cub Cadet 741-0759

Ball Bearing, Internal Axle

$47.99

$

In Stock, Qty 6

0

14

Cub Cadet 741-0760

Ball Bearing, External Axle

$50.99

$

In Stock, only 4 left!

0

15

Cub Cadet 750-04004

Spacer, .63 x 1.0 x 2.594

$

$

Not available

16

Cub Cadet 750-04014

Spacer, Shock

$

$

Not available

17

Cub Cadet 713-0605

Chain, #60 x 97 Pitch

$145.99

$

Usually ships in 3-6 days

0
