Big Country 640 (37AS640A100) - Cub Cadet 6x4 Utility Vehicle (SN: 2E012B & After) Electrical System (Part 1) Parts Diagram

6x4 Utility Vehicle

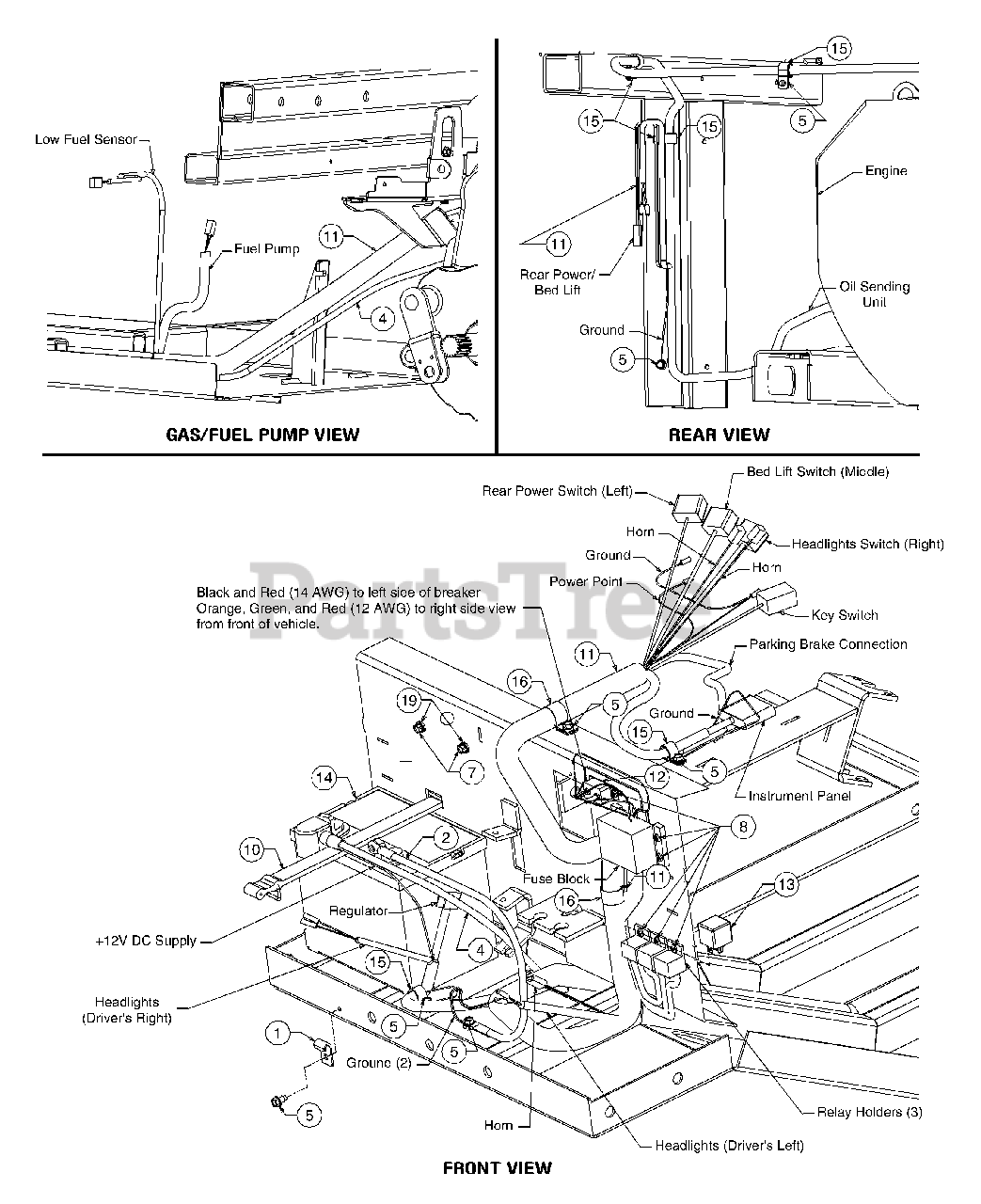

Electrical System (Part 1) Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Retainer Hook
(Superseded to 96606)

$7.99

$

In Stock, only 2 left!

0

2

Cub Cadet 629-04002

Harness Assembly, Utility Ground

$

$

Not available

?3

Cub Cadet 629-04005

Harness Assembly, Motor Ground

$

$

Not available

4

Cub Cadet 629-1107

Harness Assembly, Positive

$

$

Not available

5

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

?6

Cub Cadet 710-0703

Screw, Hex Carriage, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

7

Cub Cadet 710-0788

Screw, Self-tapping, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3009

Screw, #10-24 x 0.75

$7.99

$

Usually ships in 3-6 days

0

?9

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.99

$

In Stock, Qty 17

0

10

Cub Cadet 723-3064

Strap, Battery

$31.99

$

In Stock, only 3 left!

0

11

Cub Cadet 725-04007

Harness, Utility Wire

$

$

Not available

12

Cub Cadet 725-04013

Breaker, 25A

$

$

Not available

13

Cub Cadet 725-1718

Relay, 12V 40A
(Superseded to 925-1718)

$77.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725-1738

Battery, 300 CCA
(Superseded to 925-1707D)

$

$

Not available

15

Cub Cadet 726-04000

Clamp, #10

$

$

Not available

16

Cub Cadet 726-04001

Clamp, #14

$

$

Not available

?17

Cub Cadet 726-0469

Cable Tie, .16" x 8.35" Lg

$

$

Not available

19

Cub Cadet 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0
