Big Country 640 (37AS640B100) - Cub Cadet 6x4 Utility Vehicle (SN: 1D302B & Before) Dash Panel Parts Diagram

6x4 Utility Vehicle

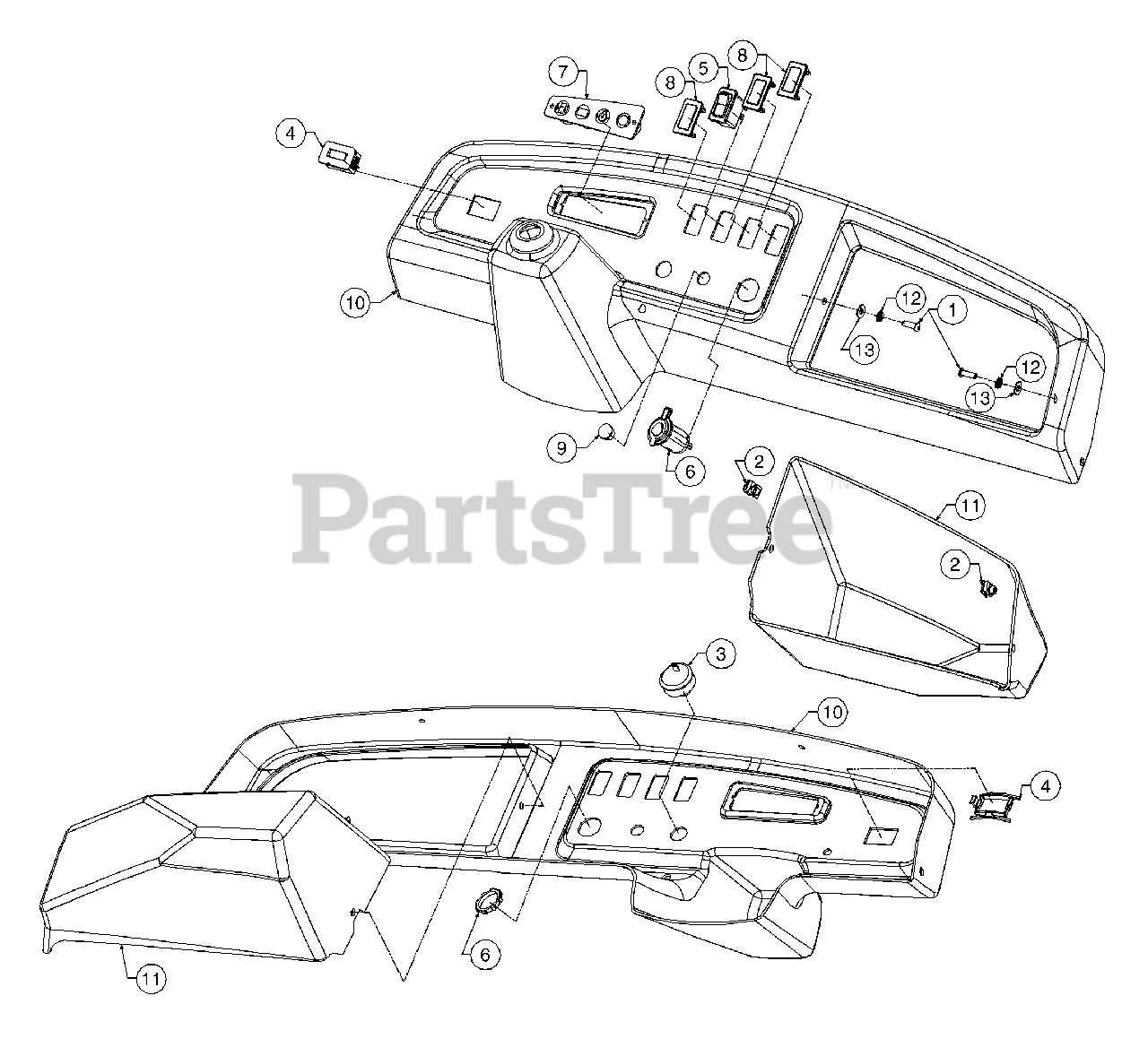

Dash Panel Parts Diagram

  • Title

1

Cub Cadet 710-0255

Screw, Machine, 1/4-20 x .75
(Superseded to 710-0924)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 712-04005

U-Nut, 1/4-20

$

$

Not available

3

Cub Cadet 725-04000

Switch, Key
(Superseded to 925-04000)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3476A

Ignition Key
(Superseded to 925-0201)

$9.99

$

In Stock, Qty 9

0

4

Cub Cadet 725-04005

Meter, Hour
(Superseded to 925-04005)

$

$

Not available

5

Cub Cadet 725-04006

Rocker Switch, Headlight

$50.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 725-2003

Recepticle, Power, 12v

$45.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 731-04008

Housing, Bulb

$

$

Not available

8

Cub Cadet 731-04010

Plug, Switch

$21.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-04023

Plug, Horn Switch

$

$

Not available

10

Cub Cadet 731-2838

Panel, Instrument

$

$

Not available

11

Cub Cadet 731-2839

Box, Glove

$

$

Not available

12

Cub Cadet 736-0329

Washer, Lock, 1/4, Regular Duty
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

13

Cub Cadet 736-3020

Washer, Flat, .271 x .630 x .065

$7.49

$

In Stock, Qty 9

0

Cub Cadet 731-04033

Tool Box

Note: Not Shown

$

$

Not available

Cub Cadet 731-2648

Cup Holder

Note: Not Shown

$

$

Not available

Cub Cadet 731-2952

Airbox

Note: Not Shown

$

$

Not available

Cub Cadet 731-2953

Shift Cover Panel
(Superseded to 931-2953A)

Note: Not Shown

$

$

Not available
