Big Country 640 (37AS640B100) - Cub Cadet 6x4 Utility Vehicle (SN: 2E012B & After) Axle (Center Suspension) Parts Diagram

6x4 Utility Vehicle

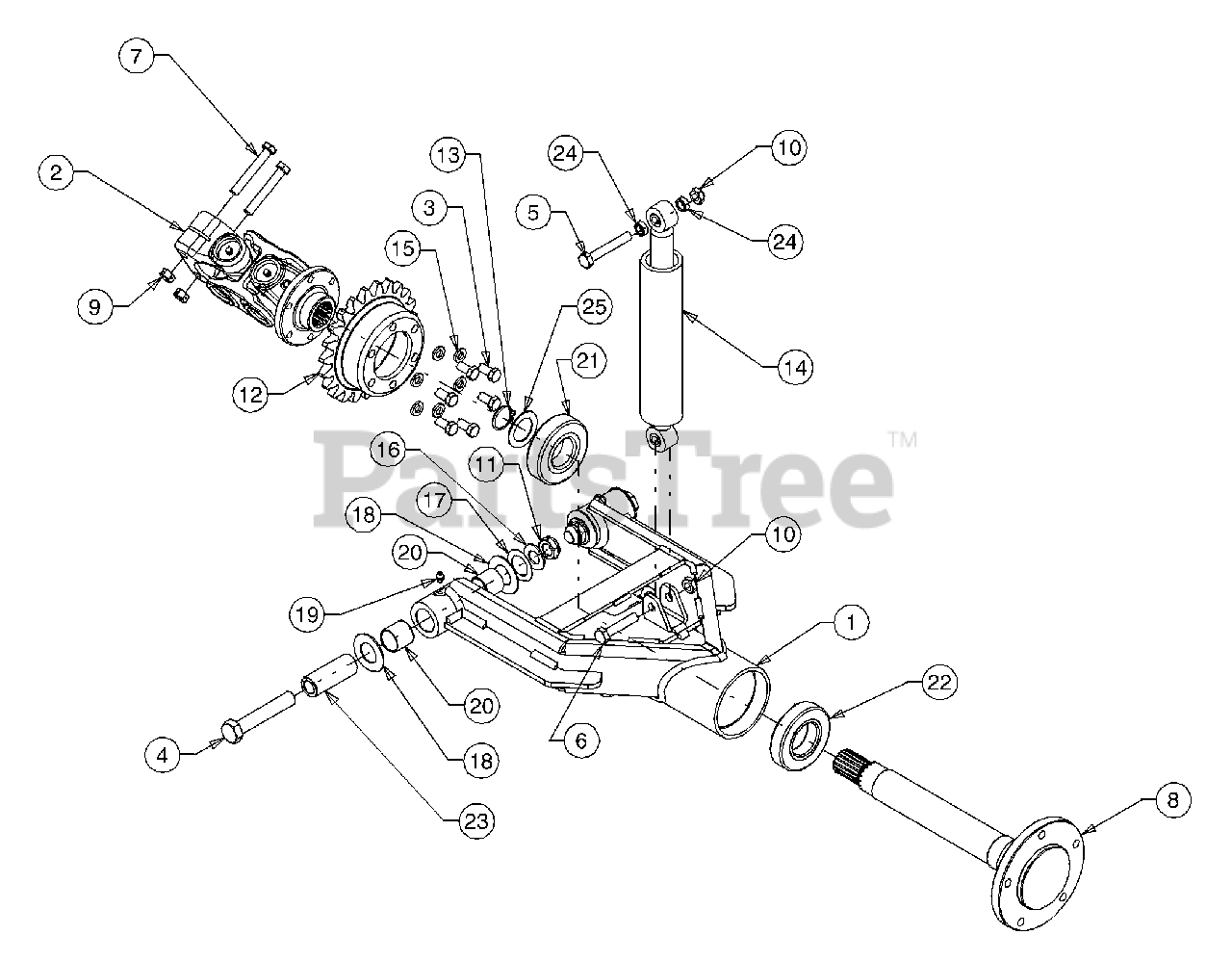

Axle (Center Suspension) Parts Diagram

  • Title

1

Cub Cadet 607-0043A

Axle Support Assembly, Center Weld
(Superseded to 607-0043A-0637)

Variations

Cub Cadet 607-0043A-0637

SUPPORT-CENTER AXL - POWDER BLACK (0637)

$472.99

$

Usually ships in 3-6 days

0

$472.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 623-0026A

Weld Coupling Assembly
(Superseded to 923-0026A)

$369.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0216

Screw, Hex, 3/8-16 x .75, Gr5

$3.99

$

In Stock, Qty 17

0

4

Cub Cadet 710-0298

Screw, Hex, 5/8-18 x 3.5, Gr5

$9.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-04023

Screw, M10-1.25 x .65, Gr8

$

$

Not available

6

Cub Cadet 710-04024

Screw, M10-1.25 x .50, Gr8

$

$

Not available

7

Cub Cadet 710-0859

Screw, Hex, 3/8-16 x 2.5, Gr5

Note: Used January 5, 2003 and prior

$6.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3229

Screw, Hex, 7/16-14 x 2.75, Gr5

Note: Used January 6, 2003 and after

$

$

Not available

8

Cub Cadet 711-1763

Axle Shaft, Drive Center

$441.99

$

In Stock, only 1 left!

0

9

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16

Note: Used January 5, 2003 and prior

$4.49

$

In Stock, Qty 12

0

Cub Cadet 712-0290

Nut, Hex Lock, 7/16-14

Note: Used January 6, 2003 and after

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet 712-04006

Nut, Nylon Lock, M10-1.25

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0413

Nut, Jam Lock, 5/8-18, Gr5

$5.99

$

In Stock, only 1 left!

0

12

Cub Cadet 713-0604

Sprocket, Hub, 1.75 - 23T
(Superseded to 713-04005)

$197.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 716-0401

Retaining Ring, External, 1.14

$7.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-1189

Shock Absorber, 2.88 Stroke

Note: Used January 5, 2003 and prior

$

$

Not available

Cub Cadet 732-04069

Shock Absorber, 2.9 Stroke
(Superseded to 932-04069)

Note: Used January 6, 2003 and after

$280.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0169

Washer, Lock, 3/8 , Regular Duty

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0237

Washer, Flat, .65 x 1.25 x .075

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0424

Washer, Flat, 1.06 x 1.56 x .020
(Superseded to 936-0424)

$6.49

$

In Stock, only 3 left!

0

18

Cub Cadet 736-3046A

Washer, Flat, 1.010 x 1.86 x .060

$8.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 741-04030

Bearing, 1.0 x 1.125 x 1.0
(Superseded to 941-04030)

$

$

Not available

21

Cub Cadet 741-0759

Ball Bearing, Internal Axle

$41.99

$

In Stock, Qty 6

0

22

Cub Cadet 741-0760

Ball Bearing, External Axle

$44.99

$

In Stock, only 4 left!

0

23

Cub Cadet 750-04004

Spacer, .63 x 1.0 x 2.594

$

$

Not available

24

Cub Cadet 750-04014

Spacer, Shock

$

$

Not available

25

Cub Cadet 750-1389

Spacer, 1.78 x 1.88

$

$

Not available
