Big Country 640 (37AS640B100) - Cub Cadet 6x4 Utility Vehicle (SN: 2E012B & After) Fenders (Rear) January 6, 2003 And Prior Parts Diagram

6x4 Utility Vehicle

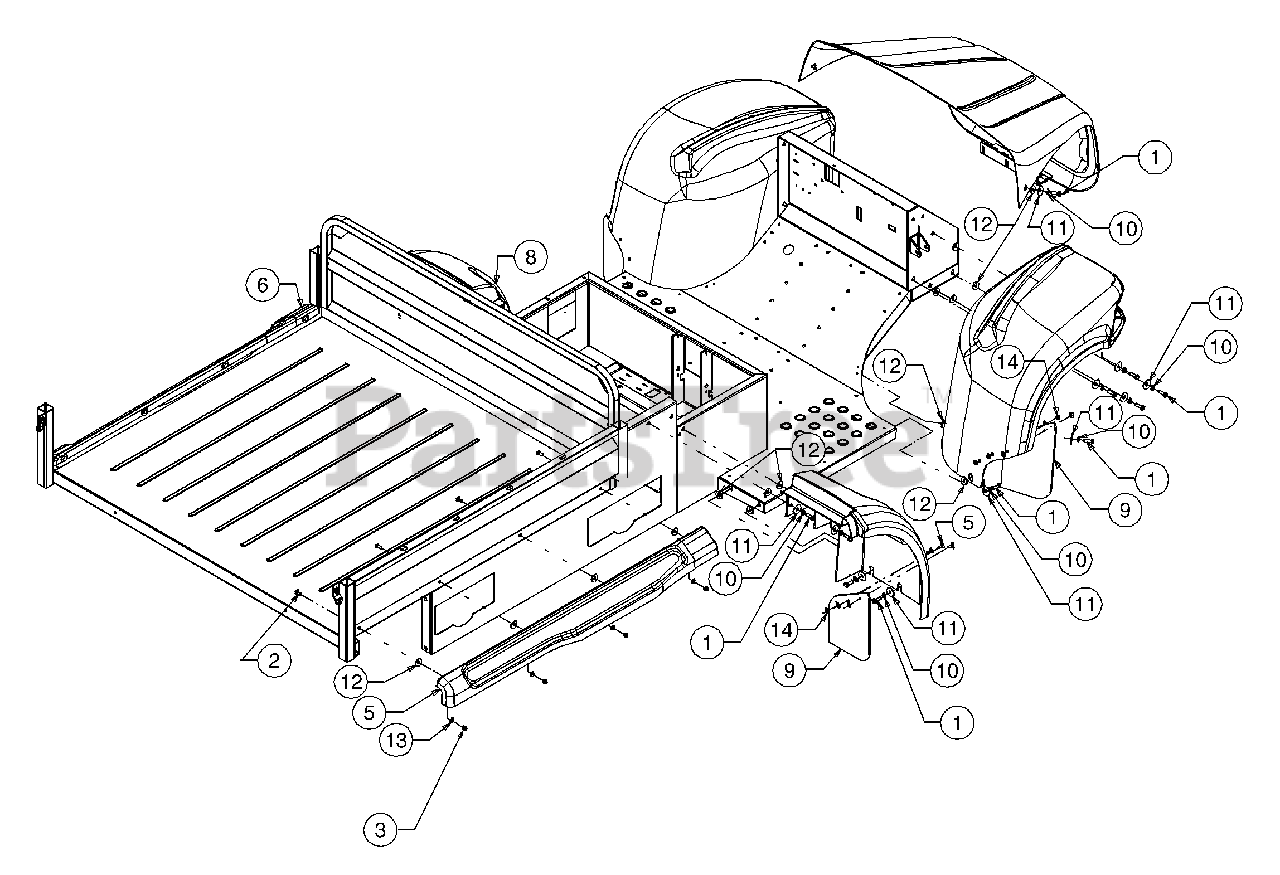

Fenders (Rear) January 6, 2003 And Prior Parts Diagram

  • Title

1

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00, Gr5

$3.99

$

In Stock, Qty 17

0

2

Cub Cadet 710-0703

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0324

Hex Lock Nut, Nylon, 1/4-20

$

$

Currently unavailable

?4

Pop Rivet

Note: Purchase Locally

$

$

Not available

5

Cub Cadet 731-2832

Panel, Bed Skirt, RH

$

$

Not available

6

Cub Cadet 731-2833

Panel, Bed Skirt, LH

$

$

Not available

?7

Cub Cadet 731-2836

Panel, Rear Fender, RH

$

$

Not available

8

Cub Cadet 731-2837

Panel, Rear Fender, LH

$

$

Not available

9

Cub Cadet 735-04003

Flap, Mud

$44.99

$

In Stock, only 1 left!

0

10

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-04004

Flat Washer, .350 x 1.25 x .06

$

$

Not available

12

Cub Cadet 736-04008

Washer, Rubber, .310 x 1.0 x .125

$

$

Not available

13

Cub Cadet 736-3020

Flat Washer, .271 x .630 x .065

$6.49

$

In Stock, Qty 9

0

14

Cub Cadet 736-0400

Flat Washer, .194 x .620 x .063

$4.99

$

In Stock, Qty 16

0
