Big Country 640 (37AS640B100) - Cub Cadet 6x4 Utility Vehicle (SN: 2E012B & After) Wheels Parts Diagram

6x4 Utility Vehicle

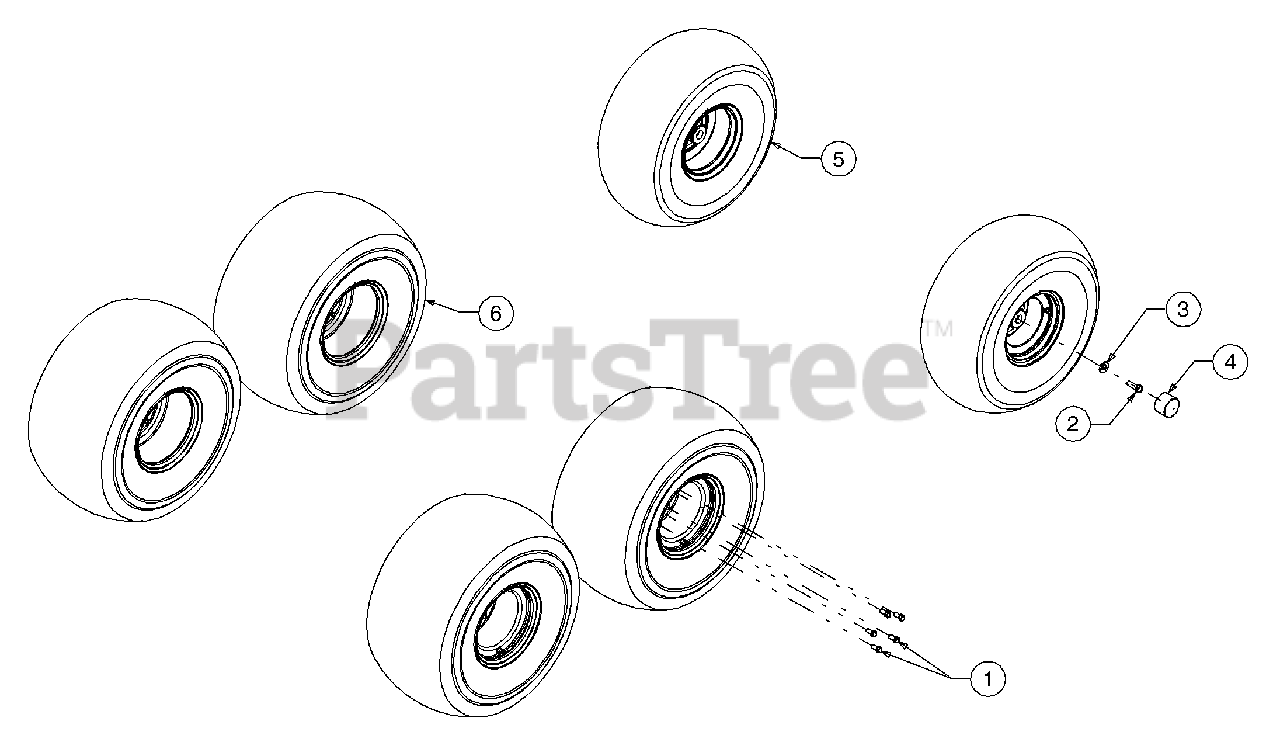

Wheels Parts Diagram

  • Title

1

Cub Cadet 710-04009

Hex Screw, 7/16-20 x 1.5, Gr5

$

$

Not available

2

Cub Cadet 710-3181

Hex Screw, 1/2-13 x 1.5, Gr5

$7.49

$

In Stock, only 1 left!

0

3

Cub Cadet 736-04019

Washer, Flat, .531 x 1.25 x .181

$8.49

$

In Stock, only 1 left!

0

4

Cub Cadet 731-04029

Dust Cover

$

$

Not available

5

Cub Cadet 634-0350

Wheel Assembly, 22.5 x 10 x 8 (Standard)
(Superseded to 634-0350A)

$

$

Not available

Cub Cadet 634-0352

Wheel Assembly, 22.5 x 10 x 8 (Knobby)

$

$

Not available

Cub Cadet 634-0354

Wheel Assembly, 22 x 12 x 8 (Heavy Duty)

$

$

Not available

Cub Cadet 634-04029

Wheel Assembly, 22 x 11-10 AT Tire Beige Rim RH

$

$

Not available

Cub Cadet 634-04030

Wheel Assembly, 22 x 11-10 AT Tire Beige Rim LH

$

$

Not available

6

Cub Cadet 634-0351

Wheel Assembly, 25 x 12 x 9 (Standard)

$

$

Not available

Cub Cadet 634-0353

Wheel Assembly, 25 x 12 x 9 (Knobby)

$

$

Not available

Cub Cadet 634-0355

Wheel Assembly, 25 x 13 x 9 (Heavy Duty)

$

$

Not available

Cub Cadet 634-04027

Wheel Assembly, 25 x 11-10 AT Tire Beige Rim RH

$

$

Not available

Cub Cadet 634-04028

Wheel Assembly, 25 x 11-10 AT Tire Beige Rim LH

$

$

Not available
