Big Country 640 (37AS640C100) - Cub Cadet 6x4 Utility Vehicle (SN: 1D302B & Before) Axle (Center Suspension) Parts Diagram

6x4 Utility Vehicle

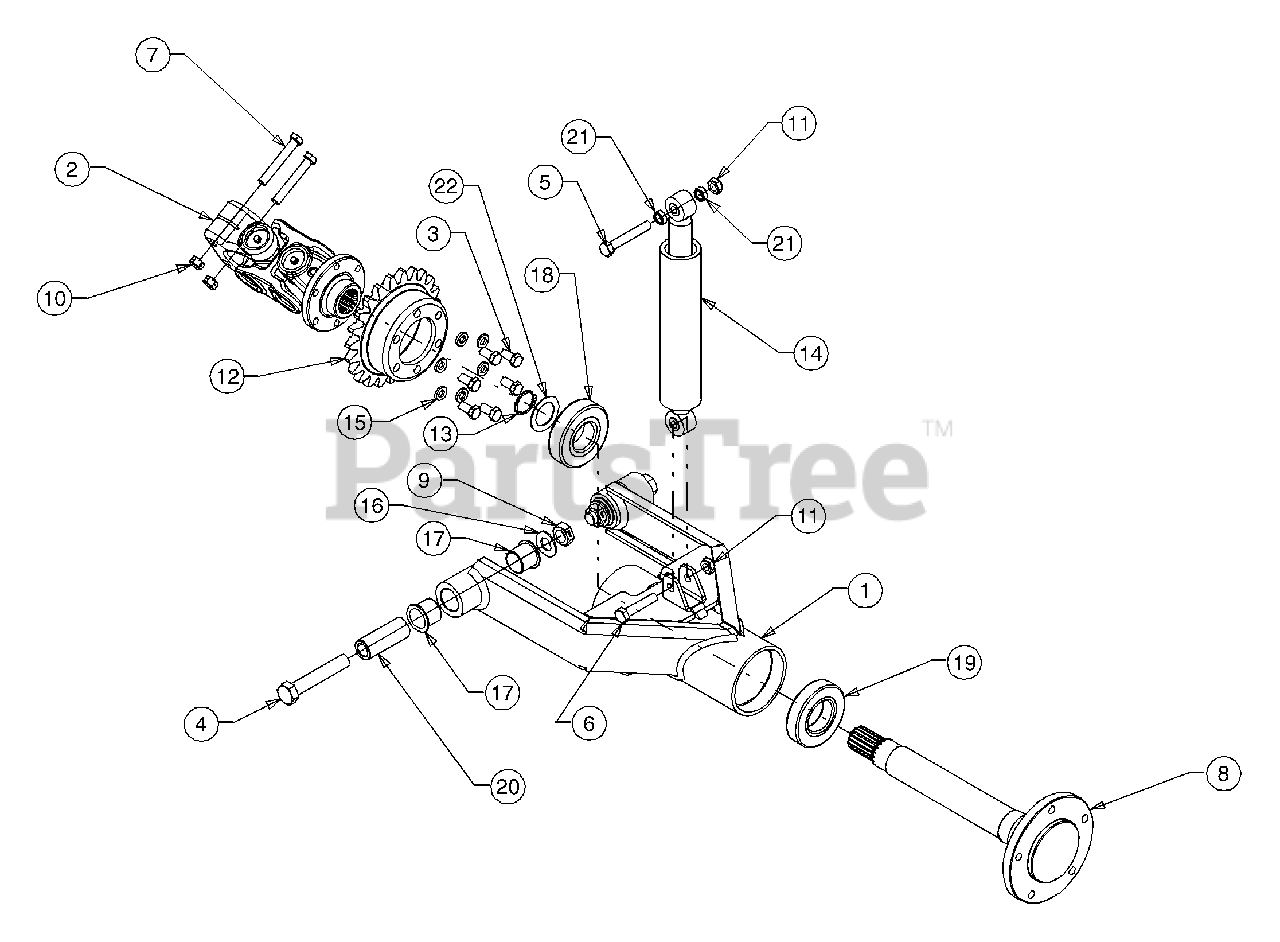

Axle (Center Suspension) Parts Diagram

  • Title

1

Cub Cadet 607-0043

Axle Support Assembly, Center Weld
(Superseded to 607-0043A-0637)

$472.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 623-0026

Weld Coupling Assembly
(Superseded to 923-0026A)

$420.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0216

Screw, Hex, 3/8-16 x .75, Gr5

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet 710-0298

Screw, Hex, 5/8-18 x 3.5, Gr5

$9.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-04023

Screw, M10-1.25 x .65, Gr8

$

$

Not available

6

Cub Cadet 710-04024

Screw, M10-1.25 x .50, Gr8

$

$

Not available

7

Cub Cadet 710-0859

Screw, Hex, 3/8-16 x 2.5, Gr5

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-1763

Axle Shaft, Drive Center

$502.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0261

Nut, Jam, 5/8-11
(Superseded to 912-0261)

$

$

Not available

10

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16

$4.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-04006

Nut, Nylon Lock, M10 x 1.25

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 713-0604

Sprocket, Hub, 1.75 - 23T
(Superseded to 713-04005)

$224.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 716-0401

Retaining Ring, External, 1.14

$7.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-1189

Shock Absorber, 2.88 Stroke

$

$

Not available

15

Cub Cadet 736-0169

Washer, Lock, 3/8 , Regular Duty

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0237

Washer, Flat, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 741-04001

Bearing, Flange, 1.0 x 1.125 x 1.0
(Superseded to 941-04030)

$

$

Not available

18

Cub Cadet 741-0759

Ball Bearing, Internal Axle

$47.99

$

In Stock, Qty 6

0

19

Cub Cadet 741-0760

Ball Bearing, External Axle

$50.99

$

In Stock, only 4 left!

0

20

Cub Cadet 750-04004

Spacer, .63 x 1.0 x 2.594

$

$

Not available

21

Cub Cadet 750-04014

Spacer, Shock

$

$

Not available

22

Cub Cadet 750-1389

Spacer, 1.78 x 1.88

$

$

Not available
