Big Country 641 Camo (37AC641D710) - Cub Cadet 6x4 Utility Vehicle Transmission - Transaxle Case Assembly Parts Diagram

6x4 Utility Vehicle

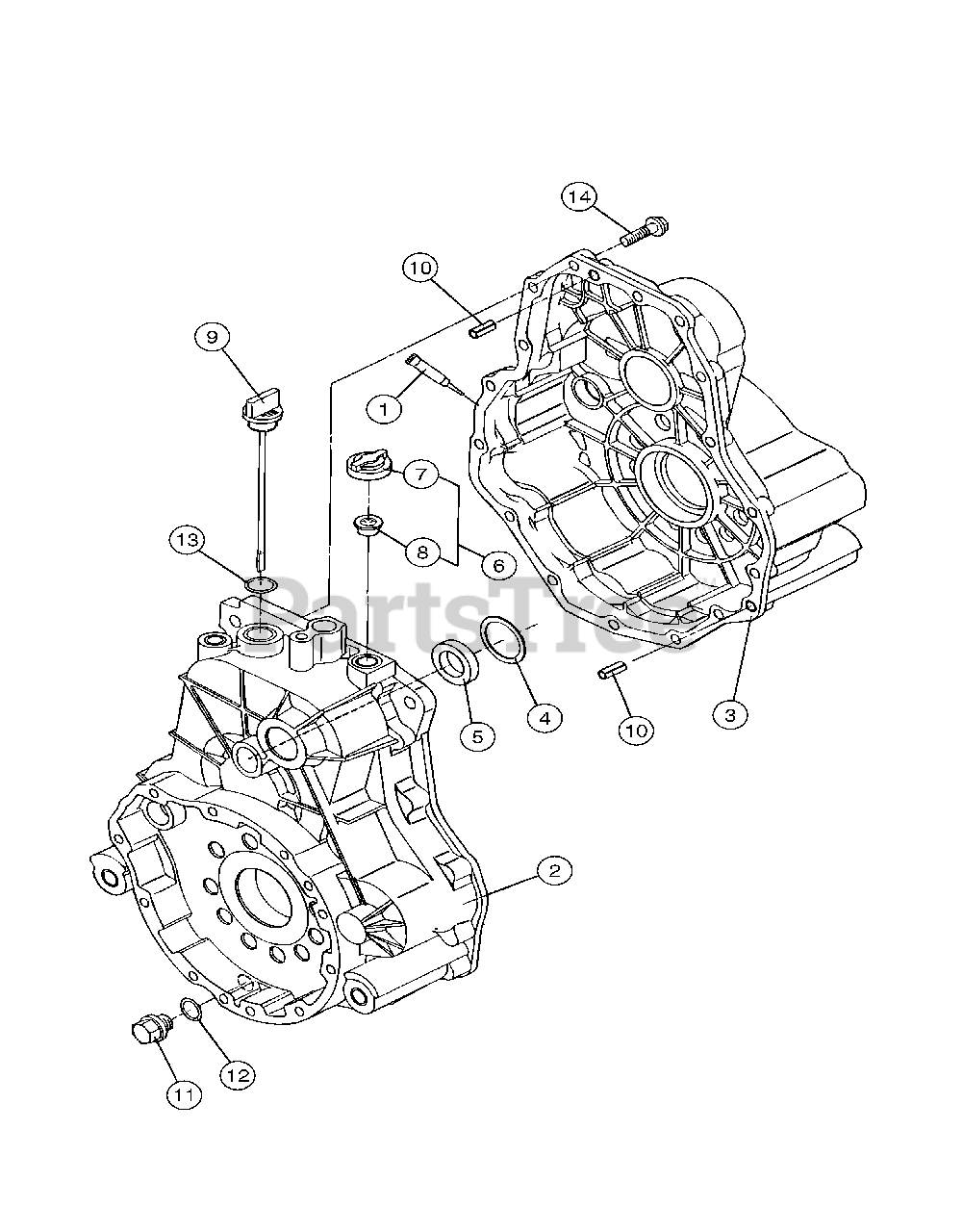

Transmission - Transaxle Case Assembly Parts Diagram

  • Title

1

TT-19485524020

Sealant

$

$

Not available

2

TT-19216224111

Housing, Transaxle, Left

$

$

Not available

3

Cub Cadet TT-19216224121

Housing, Transaxle, Right

$

$

Not available

4

Cub Cadet TT-19485524150

Washer, 36 x 45.5 x 1.2

$

$

Not available

5

Cub Cadet TT-19216224190

Seal, TC 30 40 8

$

$

Not available

6

Cub Cadet TT-168T2024250

Vent Valve

Note: replaces TT-19485924252

$26.99

$

In Stock, Qty 11

0

7

TT-19485924262

Cap, Vent Valve

$

$

Not available

8

TT-19485924270

Body, Vent Valve

$

$

Not available

9

Cub Cadet TT-19216224291

Cap, Oil

$

$

Not available

10

TT-22351080020

Pin, 8 x 20

$

$

Not available

11

TT-23491140002

Plug, 14

$

$

Not available

12

Cub Cadet TT-24311000160

Packing, P 16

$2.99

$

Usually ships in 3-6 days

0

13

Cub Cadet TT-24311000180

Packing, P 18

$3.49

$

Usually ships in 3-6 days

0

14

TT-19216224160

Bolt, 28 x 10 x 9

$

$

Not available
