Big Country 641 Camo (37AS641D100) - Cub Cadet 6x4 Utility Vehicle Engine Accessories Parts Diagram

6x4 Utility Vehicle

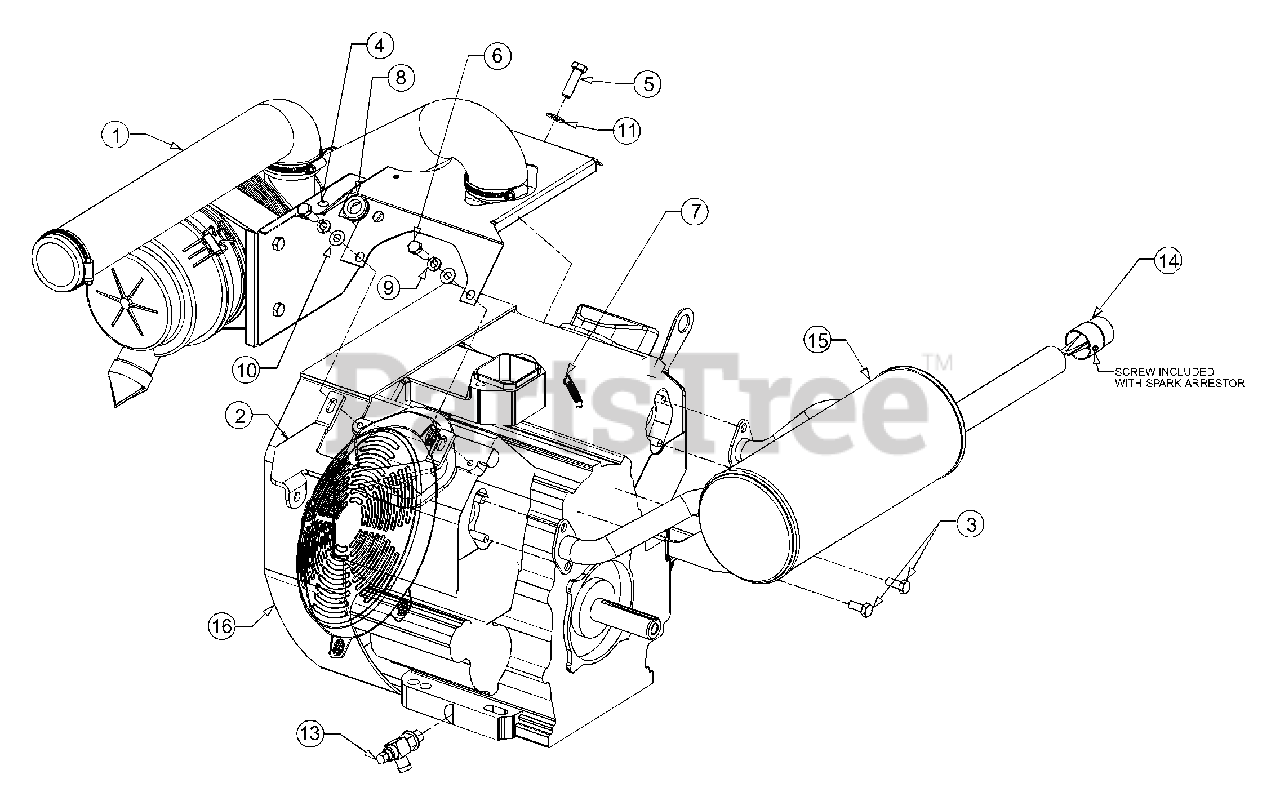

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 751-0856

Hose, Air Cleaner Intake

$

$

Not available

2

Cub Cadet 707-0375

Support, Upper Transmission

$

$

Not available

3

Cub Cadet 710-04022

Hex Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0473

Screw, Machine #10-24 x .50

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3206A

Hex Screw, M8-1.25 x 25, Gr8

$3.99

$

In Stock, Qty 13

0

7

Cub Cadet 732-04039

Spring, Extension, .315 OD x 2.125

$

$

Not available

8

Cub Cadet 735-0226

Grommet, Rubber .66 ID x 1.25 OD

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0278

Washer, Flat, .33 x .678 x .030

$5.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-3050

Washer, Flat, .406 x .812 x .051

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 737-04013

Valve, Oil Drain

$

$

Not available

14

Cub Cadet 751-0544

Arrestor, Spark 1-1/4
(Superseded to 951-0544)

$

$

Not available

15

Cub Cadet 751-0854

Muffler, Honda GXV

$

$

Not available

16

Cub Cadet 752H636740

Engine,Honda GX620K1

$

$

Not available

Cub Cadet 726-0476

Hose Clamp, Adjustable 2"-3"

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 751-3207

Filter, Air Cleaner Element

Note: (Not Shown)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 751-3197

Filter, Air Cleaner Dust Valve

Note: (Not Shown)

$37.99

$

In Stock, only 4 left!

0

Cub Cadet 751-3206

Canister, Air Cleaner

Note: (Not Shown)

$

$

Not available

Cub Cadet 17415-ZJ1-840

Adapter, Round hose to square intake

Note: (Not Shown)

$21.99

$

Usually ships in 3-6 days

0
