Big Country 641 Camo (37AS641D710) - Cub Cadet 6x4 Utility Vehicle Engine And Transmission Parts Diagram

6x4 Utility Vehicle

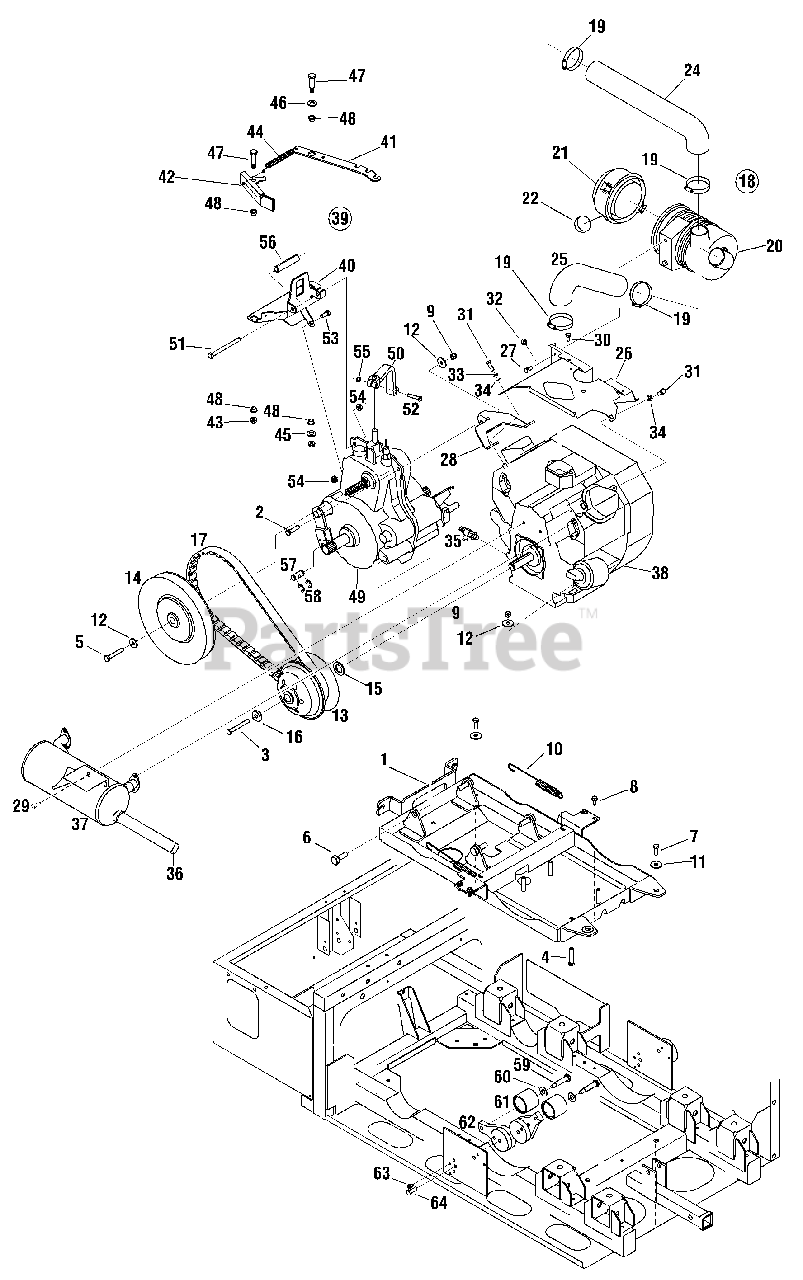

Engine And Transmission Parts Diagram

  • Title

1

Cub Cadet 607-0029A

Frame Ass'y, Engine/Trans. Support

$

$

Not available

2

Cub Cadet 710-0344

Hex Screw, 3/8-16 x 1.5, Gr5

$5.49

$

In Stock, only 1 left!

0

3

Cub Cadet 710-04019

Hex Screw, 3/8-24 x 3, Gr5

$

$

Not available

4

Cub Cadet 710-3144

Hex Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04025

Hex Screw, M10-1.5 x 60mm, Gr8

$

$

Not available

6

Cub Cadet 710-04028

Hex Screw, M16-2 x 40mm

$

$

Not available

7

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 2.25, Gr5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1260A

Hex Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0130

Nut, Hex Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 732-1186

Spring, Extension, .795 x 5.42

$

$

Not available

11

Cub Cadet 736-0133

Washer, Flat, .411 x 1.25 x .10

$4.99

$

In Stock, Qty 7

0

12

Cub Cadet 736-04005

Washer, Flat, .395 x 1.12 x .14

$7.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 618-0686A

Clutch Assembly, Engine
(Superseded to 302610C)

$765.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 618-0687

Clutch Assembly, Transmission

$

$

Not available

15

Cub Cadet 736-04009

Washer, 1.03 x 1.625 x .12

$43.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 738-04002A

Spacer, Drive, .39 ID x 1.00 OD

$

$

Not available

17

Cub Cadet 754-0646

V-type Belt, Cogged, 1.19
(Superseded to 954-0646)

$64.99

$

In Stock, Qty 9

0

18

Filter Ass'y, Air Cleaner

Note: (19-27)

$

$

Not available

19

Cub Cadet 726-0476

Hose Clamp

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 751-3206

Air Cleaner Canister

$

$

Not available

21

Cub Cadet 751-3208

Air Cleaner Cap

$

$

Not available

22

Cub Cadet 751-3197

Dust Ejector Valve

$35.99

$

In Stock, only 4 left!

0

23

Cub Cadet 751-3207

Air Cleaner Element

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 751-0856

Air Intake Hose

$

$

Not available

25

Cub Cadet 751-0851

Air Filter Hose

$

$

Not available

26

Cub Cadet 707-04067A

Air Intake Bracket

Variations

Cub Cadet 707-04067A-0637

BRACKET-AIR INTAKE(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 710-1376

Hex Screw, M8-1.25

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 707-0375

Support, Upper Transmission

$

$

Not available

29

Cub Cadet 710-04022

Hex Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0473

Screw, Machine #10-24 x .50

$3.99

$

In Stock, only 1 left!

0

31

Cub Cadet 710-3206A

Hex Screw, M8-1.25 x 25, Gr8

$3.99

$

In Stock, Qty 13

0

32

Cub Cadet 735-0226

Grommet, Rubber.66 ID x 1.25 OD

$9.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0278

Washer, Flat, .33 x .678 x .030

$5.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 737-04013

Valve, Oil Drain

$

$

Not available

36

Cub Cadet 751-0544

Arrestor, Spark 1-1/4
(Superseded to 951-0544)

$

$

Not available

37

Cub Cadet 751-0854A

Muffler, Honda GXV

$

$

Not available

38

Cub Cadet 752H636740

Engine, Honda GX620K1

$

$

Not available

39

Cub Cadet 607-04016

Shift Ass'y, Interlock

Note: (Incl. 40-48)

$

$

Currently unavailable

40

Cub Cadet 607-04018

Interlock Shift Bracket
(Superseded to 607-04018-0637)

Variations

Cub Cadet 607-04018-0637

BRACKET-SHIFT INTERLO - POWDER BLACK (0637)

$

$

Not available

$

$

41

Cub Cadet 607-04017

Interlock Shift Plate

$

$

Not available

42

Cub Cadet 607-04015

Brake Clutch Lever

$61.99

$

In Stock, only 2 left!

0

43

Cub Cadet 712-3005

Hex Flange Lock Nut, 3/8-16

$6.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 732-0814

Extension Spring

$7.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0105

Bell Washer, .375 x .870 x .063

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0326

Flat Washer, .510 x 1.0 x .125

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 738-0213

Shoulder Screw

$7.49

$

In Stock, Qty 5

0

48

Cub Cadet 741-0491

Flange Bearing

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 618-0685

Transmission, Tuff Torq Model KT 35
(Superseded to TT-79216224023)

$3932.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 707-0369

Lever, Transmission

$

$

Not available

51

Cub Cadet 710-0693

Hex Screw, 3/8-16 x 4.50, Gr5

$13.99

$

In Stock, only 2 left!

0

52

Cub Cadet 710-0805

Hex Screw, 5/16-18 x 1.50, Gr5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 12

0

53

Cub Cadet 710-3001

Hex Screw, 3/8-16 x .880, Gr5

$6.99

$

In Stock, Qty 11

0

54

Cub Cadet 712-3005

Lock Nut, Hex Flange 3/8-16

$6.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 712-0429

Nut, Hex Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 750-3235

Spacer, .505 x .75 x 3.31

$11.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 711-04024

Pin, .625 x 1.37
(Superseded to 911-04024)

$23.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 716-0106A

E-Ring, .625

$4.99

$

In Stock, Qty 15

0

59

Cub Cadet 738-0509

Shoulder Screw, .50 x 1.825

$

$

Not available

60

Cub Cadet 736-3084

Flat Washer, .510 x 1.12 x .060

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 731-04078A

Chain Roller

$

$

Not available

62

Cub Cadet 718-04033

Rotary Adjuster

$111.99

$

In Stock, Qty 9

0

63

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 710-3118

Hex Screw, 3/8-16 x 1.00

$5.49

$

Usually ships in 3-6 days

0

Cub Cadet 737-3120

Oil, D50 TTF-SB
(Superseded to 490-000-C051)

$21.99

$

In Stock, Qty 20+

0
