Big Country 642 Fire & Rescue (37AC642E710) - Cub Cadet 6x4 Utility Vehicle Engine - Oil Pan & Lubrication Parts Diagram

6x4 Utility Vehicle

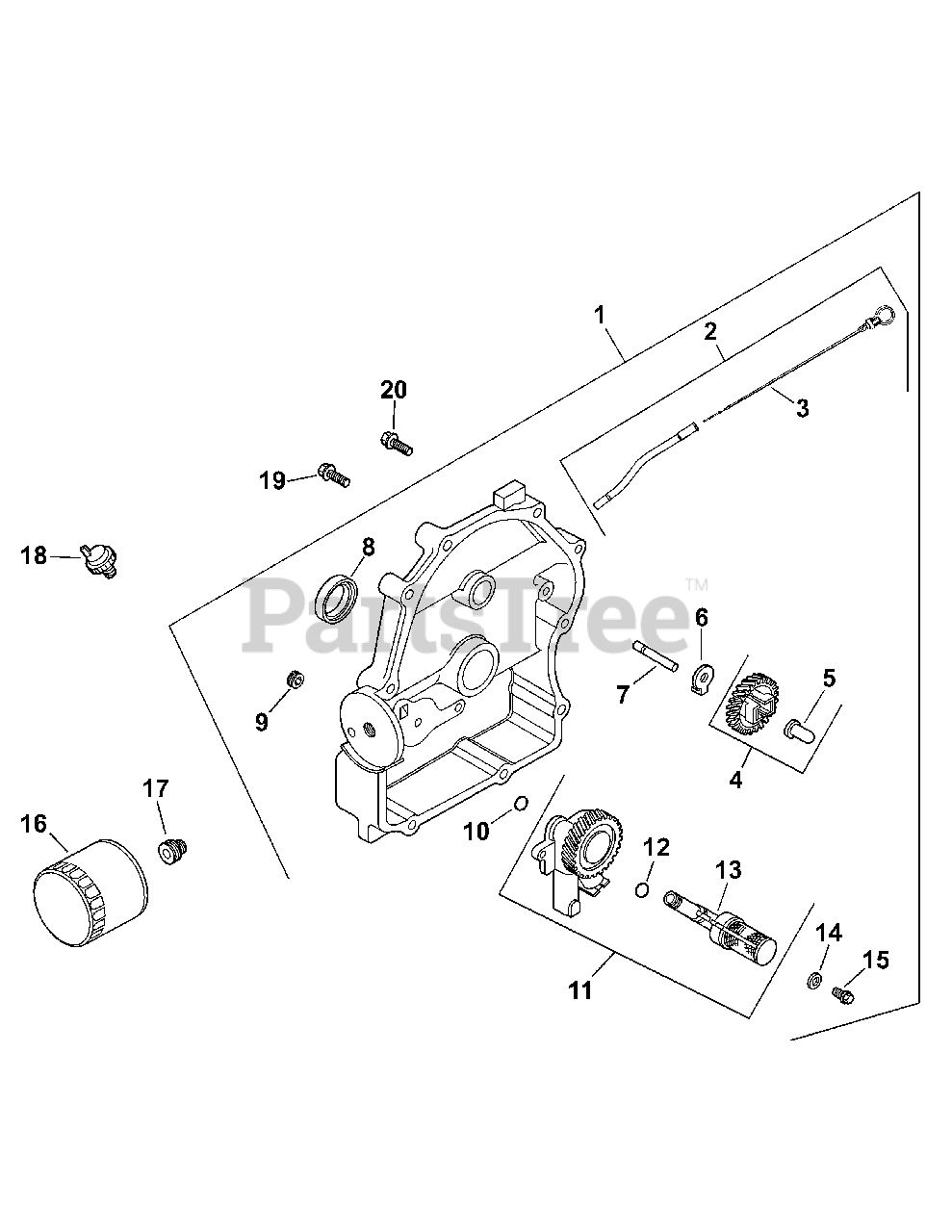

Engine - Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-009-83-S

Plate, closure assembly (Includes 2-15)
(Superseded to KH-24-009-227-S)

$

$

Not available

2

Cub Cadet KH-24-755-121-S

Kit, tube w/dipstick (Includes 3)

$35.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-24-038-10-S

Dipstick

$12.99

$

In Stock, Qty 6

0

4

Cub Cadet KH-24-043-12

Kit, governor gear (Includes 5)

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, governor regulating

$

$

Not available

6

Cub Cadet KH-24-448-02-S

Tab, locking

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-12-144-02

Shaft, governor gear

$

$

Not available

8

Cub Cadet KH-52-032-08-S

Seal, oil (PTO end)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-25-139-60-S

Plug, pipe 1/8" (2)

$3.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

11

Cub Cadet KH-24-393-37-S

Oil pump assembly (Includes 12,13)
(Superseded to KH-24-393-53-S)

$

$

Not available

12

Cub Cadet KH-24-153-01

O-Ring, oil pick-up

$

$

Not available

13

Cub Cadet KH-24-381-04

Pick-up, oil

$

$

Not available

14

Cub Cadet KH-M-631005

Washer, plain 6 mm (2)

$

$

Not available

15

Cub Cadet KH-M-645025-S

Screw, hex. flange M6x1.0x25 (2)
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, Qty 12

0

16

Cub Cadet KH-12-050-01

Filter, oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-24-136-01

Nipple, oil filter
(Superseded to KH-24-136-09-S)

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-25-099-24-S

Switch, pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, Qty 6

0

19

Cub Cadet KH-24-086-16-S

Screw, hex. flange M8x1.25x45 (9)
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 20+

0

20

Cub Cadet KH-24-086-17-S

Screw, hex. flange M8x1.25x45

$2.49

$

In Stock, Qty 20+

0

Cub Cadet KH-25-113-05

Decal, oil sentry (not illustrated)

$

$

Not available
