Big Country 642 Fire & Rescue (37AC642E710) - Cub Cadet 6x4 Utility Vehicle Transmission - Differential Gear Assembly Parts Diagram

6x4 Utility Vehicle

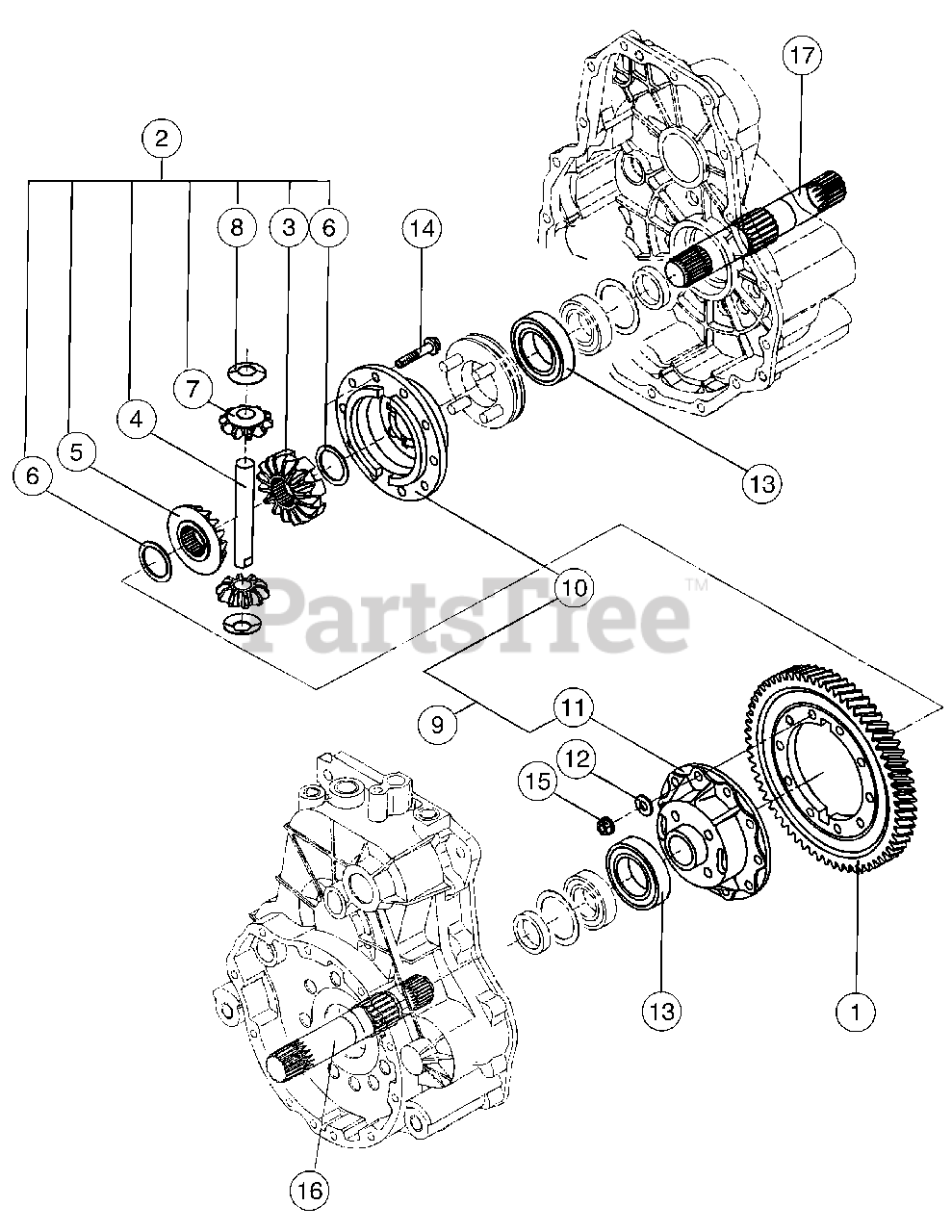

Transmission - Differential Gear Assembly Parts Diagram

  • Title

1

Cub Cadet TT-19216231460

Gear, 63H, Final

$

$

Not available

2

TT-19216231510

Differential, Gear Kit

Note: (Incl. Ref No. 3-8)

$

$

Not available

3

Cub Cadet N/A

Gear (RR, Differential)

Note: Furnish TT-19216231510 Differential Lock Kit

$

$

Currently unavailable

4

Cub Cadet N/A

Shaft, Differential Pinion

Note: Furnish TT-19216231510 Differential Lock Kit

$

$

Currently unavailable

5

Cub Cadet N/A

Differential Side Gear, RH

Note: Furnish TT-19216231510 Differential Lock Kit

$

$

Currently unavailable

6

TT-19216231610

Washer, Differential Gear

$

$

Not available

7

Cub Cadet N/A

Pinion, Differential

Note: Furnish TT-19216231510 Differential Lock Kit

$

$

Currently unavailable

8

TT-19451531850

Washer, Differential Pinion

$

$

Not available

9

Cub Cadet TT-19216232100

Differential, Case Kit

Note: (Incl. Ref No. 10 & 11)

$

$

Not available

10

Cub Cadet N/A

Case (R, Differential)

Note: Furnish TT-19216233100 Differential Case Kit

$

$

Currently unavailable

11

Cub Cadet N/A

Case (L, Differential)

Note: Furnish TT-19216233100 Differential Case Kit

$

$

Currently unavailable

12

TT-22117080000

Washer, 8

$

$

Not available

13

Cub Cadet TT-24101060084

Bearing, 6008

$

$

Not available

14

TT-26106080402

Bolt, 8 x 40

$

$

Not available

15

TT-26716080002

Nut, 8

$

$

Not available

16

Cub Cadet TT-19216233612

Shaft, LH

$

$

Not available

17

Cub Cadet TT-19216233622

Shaft, RH

$

$

Not available
