Big Country 642 Fire & Rescue (37AS642E100) - Cub Cadet 6x4 Utility Vehicle Cables Parts Diagram

6x4 Utility Vehicle

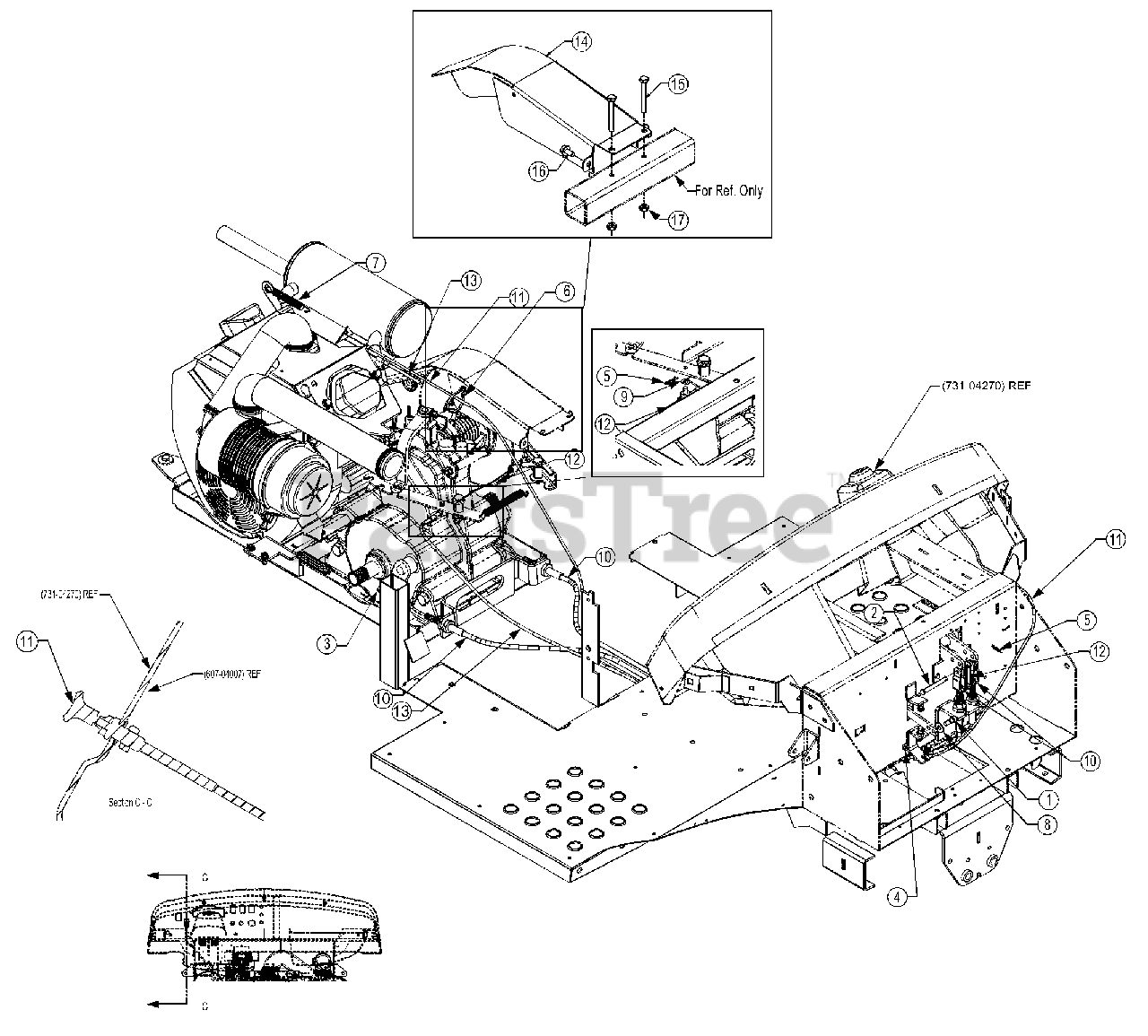

Cables Parts Diagram

  • Title

1

Cub Cadet 710-04027

Screw, Shoulder, .375 x .375

$14.99

$

In Stock, only 1 left!

0

2

Cub Cadet 711-0813

Pin, Clevis, 5/16 x 2.5
(Superseded to 911-0813)

$6.49

$

In Stock, only 1 left!

0

3

Cub Cadet 712-3025

Nut, Jam 5/16-18

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-3009

Nut, Hex Lock, 5/16-18

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet 714-0104

Pin, Cotter, .072 x 1.13

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 726-0470

Tie, Cable 19 x 8.39 Tree Mount

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 732-0470A

Extension Spring,.530 OD x 4.75 LG
(Superseded to 932-0470A)

$9.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0159

Washer, .349 x .879 x .063

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0271

Washer, Spring.317 ID x.625 OD
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet 746-04000

Cable, Control Brake
(Superseded to 946-04000)

$106.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 746-04002

Cable, Control, Choke
(Superseded to 946-04002)

$

$

Not available

12

Cub Cadet 746-04006

Cable, Control Brake Clutch
(Superseded to 946-04006)

$113.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 746-04042

Cable, Control, Throttle
(Superseded to 946-04042)

$110.99

$

In Stock, only 2 left!

0

14

Cub Cadet 707-04006

Guard, Belt

$

$

Not available

15

Cub Cadet 710-0378

Screw, Hex 5/16-18 x 2.5

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 710-0759

Screw, Flange 5/16-18 x.625

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-3009

Nut, Hexlock 5/16-18

$6.49

$

In Stock, Qty 20+

0
