Big Country 642 Fire & Rescue (37AS642E100) - Cub Cadet 6x4 Utility Vehicle Engine Accessories Parts Diagram

6x4 Utility Vehicle

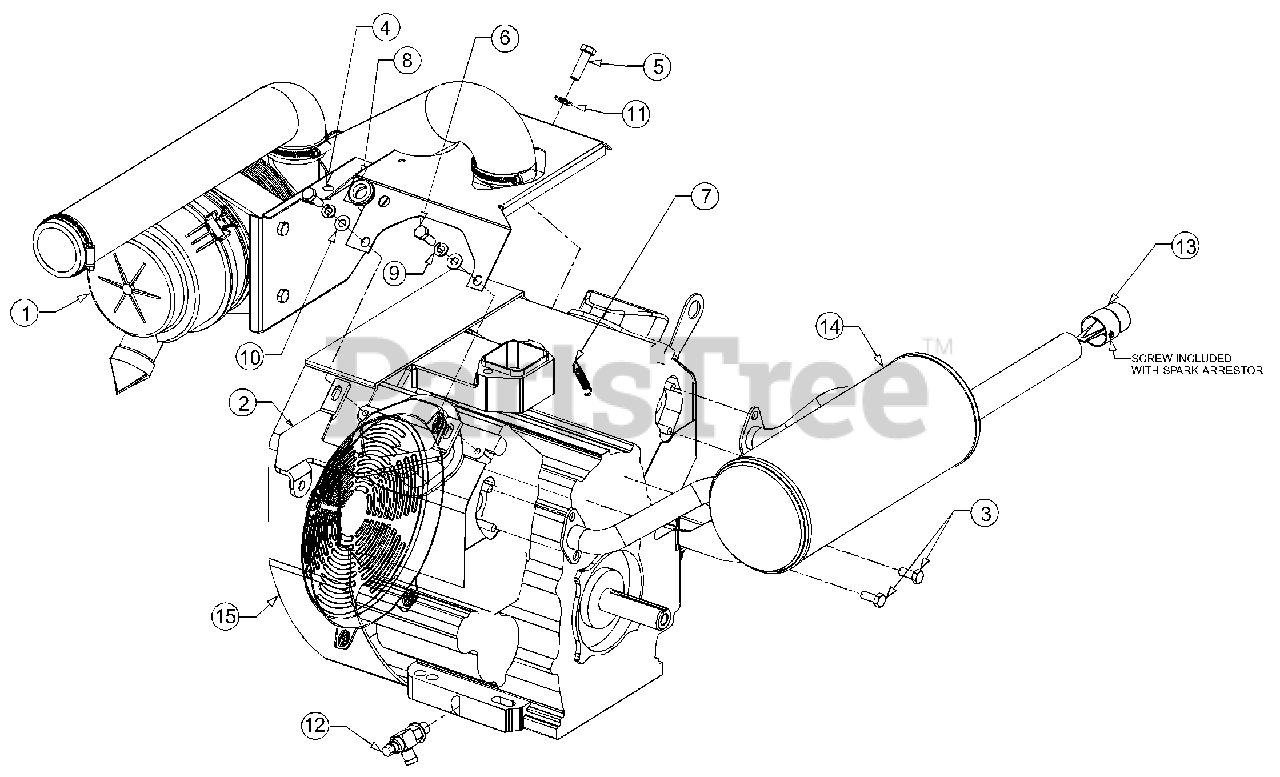

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 651-04000A

Filter Assembly, Air Cleaner

$

$

Currently unavailable

Cub Cadet 751-3206

Filter, Air Cleaner Housing

$

$

Not available

Cub Cadet 751-3207

Filter, Air Cleaner Element

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 751-3208

Filter, Air Cleaner Cap

$

$

Not available

Cub Cadet 751-3197

Filter, Air Cleaner Dust Valve

$35.99

$

In Stock, only 4 left!

0

2

Cub Cadet 707-0375

Support, Upper Transmission

$

$

Not available

3

Cub Cadet 710-04022

Hex Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0473

Screw, Machine #10-24 x .50

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3206A

Hex Screw, M8-1.25 x 25, Gr8

$3.99

$

In Stock, Qty 13

0

7

Cub Cadet 732-04039

Spring, Extension, .315 OD x 2.125

$

$

Not available

8

Cub Cadet 735-0226

Grommet, Rubber .66 ID x 1.25 OD

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0278

Washer, Flat, .33 x .678 x .030

$5.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-3050

Washer, Flat, .406 x .812 x .051

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 737-04013

Valve, Oil Drain

$

$

Not available

13

Cub Cadet 751-0544

Arrestor, Spark 1-1/4
(Superseded to 951-0544)

$

$

Not available

14

Cub Cadet 751-0854

Muffler, Honda GXV

$

$

Not available

15

Cub Cadet 852H636740

Engine, Honda GX620K1

$

$

Currently unavailable
