Big Country 642 Fire & Rescue (37AS642E100) - Cub Cadet 6x4 Utility Vehicle Frame Parts Diagram

6x4 Utility Vehicle

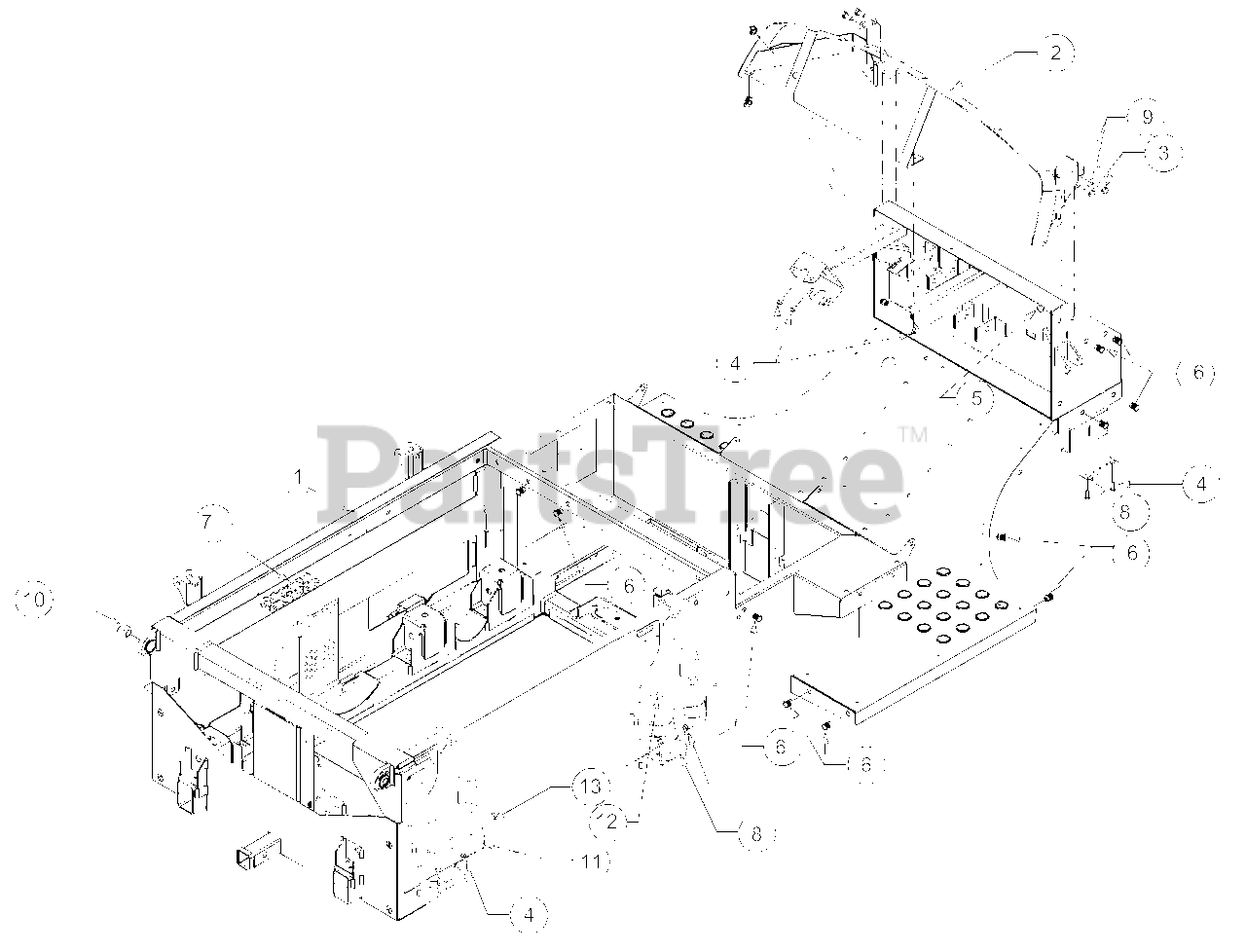

Frame Parts Diagram

  • Title

1

Cub Cadet 607-0044C

Frame Assembly, Complete

$

$

Not available

2

Cub Cadet 607-04065

Frame Assembly, Upper Dash
(Superseded to 607-04065-0637)

Variations

607-04065-0637

Cub Cadet 607-04065-0637

FRAME-UPPER DASH - POWDER BLACK (0637)

$274.99

$

In Stock, only 1 left!

0

$274.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0216

Screw, Hex, 3/8-16 x .75

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0703A

Nut, Insert, 5/16-18

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 713-0605

Chain, 60-97 Pitch

$145.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-04016

Bumper, Compression Extension

$47.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-3050

Washer, Flat, .406 x 812 x .51

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet 741-0761

Rubber Bushing, Bed Pivot

$

$

Not available

11

Cub Cadet 735-04040

Bumper

$

$

Not available

12

Cub Cadet 712-04052

Nut Hex, Flange Lock

$

$

Not available

13

Cub Cadet 707-04246

Plate, Spacer

$

$

Currently unavailable
