BL 100 (41AD100G763) - Bolens String Trimmer

String Trimmer

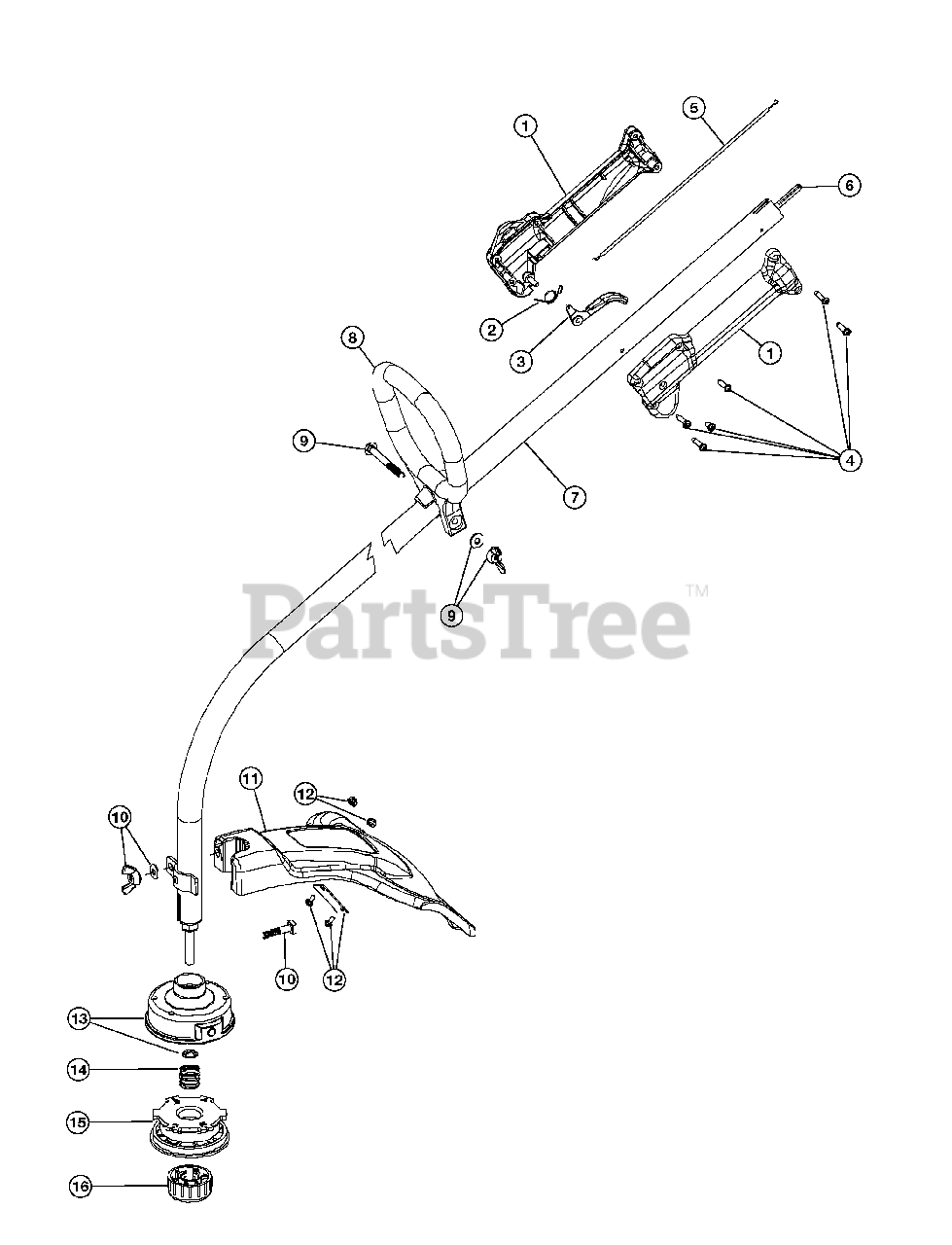

BL 100 (41AD100G763) - Bolens String Trimmer > Parts Diagrams (2) > Boom And Trimmer Parts

  • Title
753-04279

1

Throttle Housing and Trigger Assembly

Part# 753-04279

Note: (includes 2-4)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.69

791-610314

2

Throttle Trigger Spring

Part# 791-610314

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.79

791-180975

3

Throttle Trigger

Part# 791-180975 (Superseded to 791-181807)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.58

791-145888

4

Throttle Housing Screws

Part# 791-145888

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.90

791-182068

5

Throttle Cable

Part# 791-182068

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.95

753-04280

6

Flexible Drive Shaft

Part# 753-04280

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $53.16

753-04281

7

Drive Shaft Housing Assembly

Part# 753-04281

Note: (includes 6 & 13)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $67.95

791-153064

8

D-Handle Assembly

Part# 791-153064

Note: (includes 9)

OEM Warranty Repair Part for MTD

Not available

791-153317

9

D-Handle Hardware

Part# 791-153317 (Superseded to 791-181587)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.68

753-04282

10

Guard Mounting Hardware

Part# 753-04282

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.43

753-04283

11

Guard

Part# 753-04283

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $36.51

791-180553

12

Blade Assembly

Part# 791-180553

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.74

753-04284

13

Outer Reel w/Retainer

Part# 753-04284

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $21.98

791-610317

14

Spring

Part# 791-610317 (Superseded to 791-610317B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.02

791-610318

15

Inner Reel

Part# 791-610318 (Superseded to 753-1155)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.88

791-153066

16

Bump Knob

Part# 791-153066 (Superseded to 791-153066B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.16

791-153577

Inner Reel and Line

Part# 791-153577 (Superseded to 791-153577B)

Note: Optional Accessory; Not Shown

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $18.58

791-682075

Shoulder Strap Assembly

Part# 791-682075 (Superseded to 791-682075B)

Note: Optional Accessory; Not Shown

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.36
