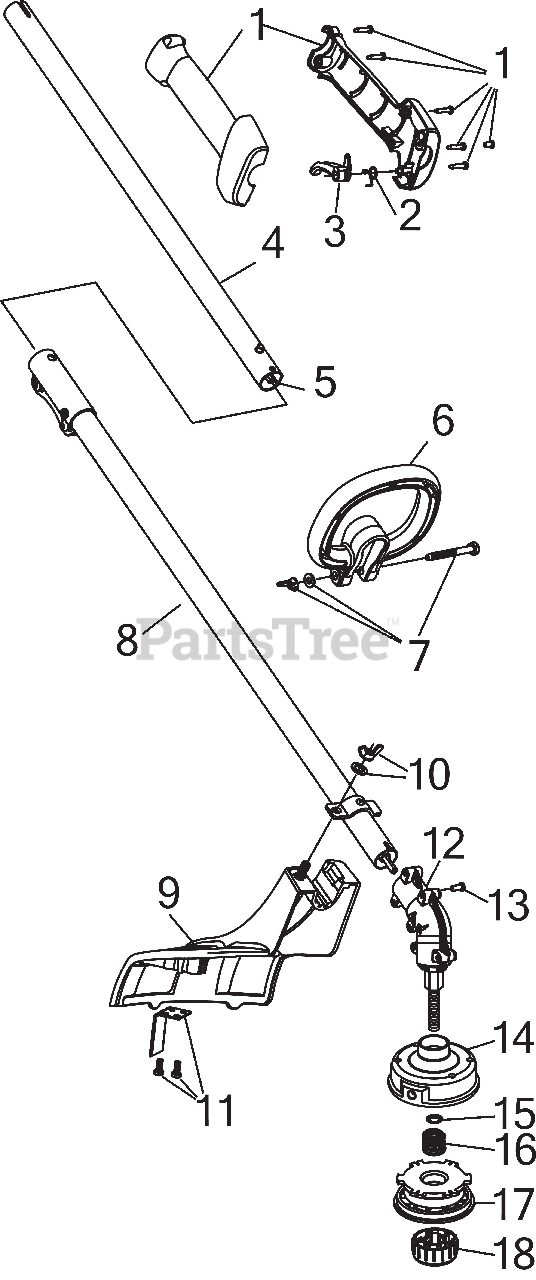

BL 160 (41AD170G965) - Bolens String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

MTD 953-1156

SPOOL ASSEMBLY-REEL

Note: (Not Shown)

$33.99

$

In Stock, only 2 left!

0

1

MTD 753-08543

THROTTLE GRIP ASSEMBLY

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-182690

SPRING, TRIGGER

$8.49

$

In Stock, only 2 left!

0

3

MTD 753-06791

THROTTLE TRIGGER

$3.49

$

In Stock, Qty 16

0

4

MTD 753-06217

UPPER BOOM ASSEMBLY COM

Note: (includes 5)

$14.99

$

Usually ships in 3-6 days

0

5

MTD 753-06216

UPPER SHFT

$7.99

$

In Stock, Qty 9

0

6

MTD 753-06198

HANDLE

Note: (includes 6)

$5.49

$

In Stock, only 1 left!

0

7

MTD 753-06199

HANDLE HWD

$2.49

$

Usually ships in 3-6 days

0

8

MTD 753-08549

LOWER BOOM ASSEMBLY

$28.99

$

In Stock, only 2 left!

0

9

MTD 753-08360

GUARD & BLADE ASSEMBLY

Note: (includes 10 & 11)

$16.99

$

In Stock, only 2 left!

0

10

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$27.99

$

In Stock, only 4 left!

0

11

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 6

0

12

MTD 753-06571

GEARBOX ASSEMBLY

Note: (includes 13 - 18)

$

$

Not available

13

MTD 7039

SCREW 8-32X.437

$4.99

$

In Stock, Qty 5

0

14

MTD 753-04284

REEL:OTR W/RET

$29.99

$

In Stock, Qty 20+

0

15

MTD 791-610660

RETAINER .625 OD 2

Note: (includes 15)

$5.49

$

In Stock, Qty 20+

0

16

MTD 791-610317B

SPRING-SPOOL

$11.99

$

In Stock, Qty 20+

0

17

MTD 753-1155

REEL-INNER SPOOL

$24.99

$

In Stock, Qty 20+

0

18

MTD 791-153066B

BUMP HEAD KNOB ASSEMBLY

$14.99

$

In Stock, Qty 20+

0
