BL 410 (21A-121R965) - Bolens Tiller (2008) General Assembly Parts Diagram

Tiller

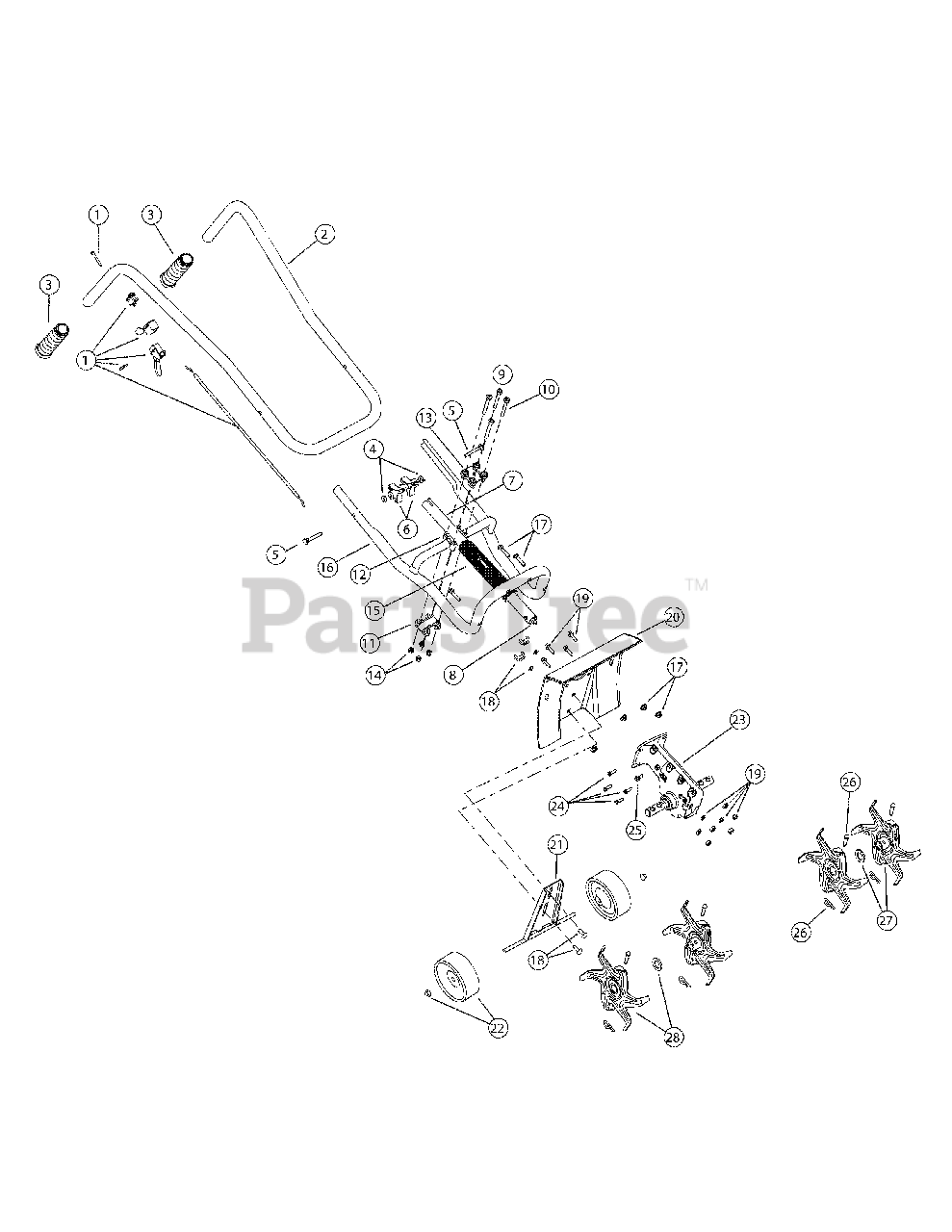

General Assembly Parts Diagram

  • Title

1

MTD 791-00023

Throttle Trigger and Cable Assembly

$

$

Not available

2

MTD 791-182882

Handle Bar Assembly, Upper

Note: (includes 3)

$

$

Not available

3

MTD 791-182675

Grip

$

$

Not available

4

MTD 791-182678

Washer
(Superseded to 4150)

$2.99

$

Usually ships in 3-6 days

0

5

MTD 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

6

MTD 791-182898

Knob, 3 prong
(Superseded to 791-182677)

$13.99

$

Usually ships in 3-6 days

0

7

MTD 753-04988

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 753-04987

Flexible Drive Shaft

$

$

Not available

9

MTD 791-683295

Handle Bracket Assembly

Note: (includes 10-14)

$42.99

$

Usually ships in 3-6 days

0

10

MTD 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

11

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

12

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

13

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

14

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

15

MTD 791-181575

Grip

$19.99

$

Usually ships in 3-6 days

0

16

MTD 791-182900

Lower Handle Bar

$

$

Not available

17

MTD 791-182681

Hardware, Handle Bar Mounting

Note: (lower)

$

$

Not available

18

MTD 791-182684

Wheel Bracket Mounting Hardware

$

$

Not available

19

MTD 753-04266

Guard Mounting Hardware

$

$

Not available

20

MTD 753-04240

Guard

$

$

Not available

21

MTD 753-05020

Wheel Bracket Assembly

Note: (includes 22)

$

$

Not available

22

MTD 753-04437

Wheel Assembly

$20.99

$

Usually ships in 3-6 days

0

23

MTD 753-04489

Gear Box Assembly

Note: (includes 24) For round hole tines

$

$

Not available

23

MTD 753-05982

Gear Box Assembly
(Superseded to 753-06063)

Note: (includes 24) For "D" hole tines

$124.99

$

In Stock, Qty 8

0

24

MTD 791-182195

Screw

$6.99

$

In Stock, Qty 14

0

25

MTD 791-180288

Sleeve Retainer Bolt
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

26

MTD 791-147473

Tine Fastener Assembly

$

$

Not available

27

MTD 753-05984

Tine Assembly - 2009 & After

Note: (Left Outer or Right Inner) "D" Shape Hole

$32.99

$

Usually ships in 3-6 days

0

27

MTD 791-182729

Tine Assembly - 2008 & Before

Note: (Left Outer or Right Inner) Round Hole

$

$

Not available

28

MTD 753-05983

Tine Assembly - 2009 & After

Note: (Left Inner or Right Outer) "D" Shape Hole

$32.99

$

Usually ships in 3-6 days

0

28

MTD 791-182730

Tine Assembly - 2008 & Before

Note: (Left Inner or Right Outer) Round Hole

$

$

Not available
