BlueVolt CZ1 (2691983-00) - Simplicity BlueVolt 42" Zero-Turn Mower, Electric Battery Group Parts Diagram

BlueVolt 42" Zero-Turn Mower, Electric

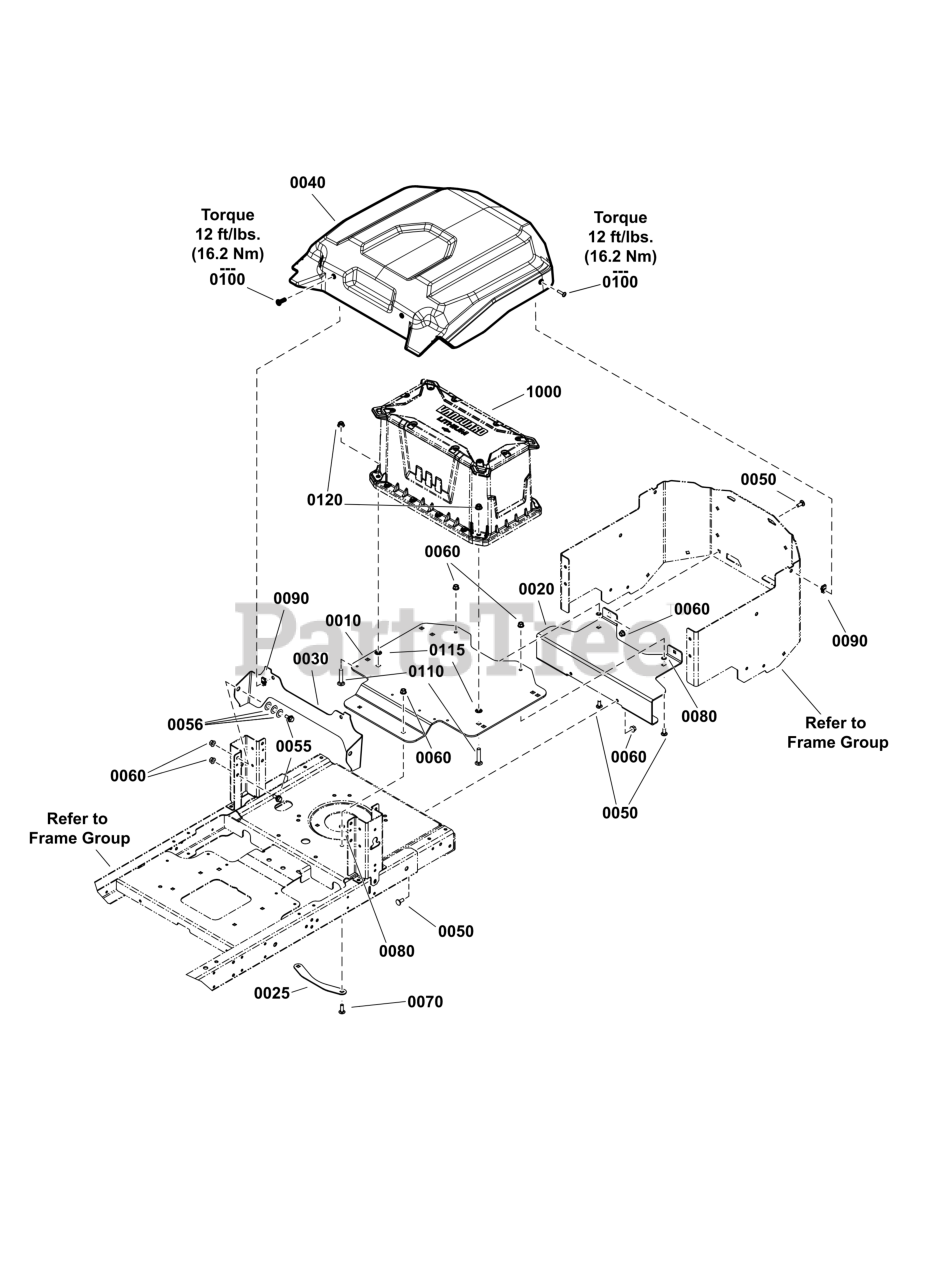

Battery Group Parts Diagram

  • Title

0010

Simplicity 84007838

BRACKET, Battery

$111.99

$

Usually ships in 2-12 days

0

0020

Simplicity 84007991

BRACKET, Support

$52.99

$

Usually ships in 2-12 days

0

0025

Simplicity 84008637

STRAP

$12.99

$

Usually ships in 0 days

0

0030

Simplicity 84008019

BRACKET, Support

$29.99

$

Usually ships in 0 days

0

0040

Simplicity 84007806

COVER

$345.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0055

Simplicity 703354

SCREW, 5/16-18

$5.49

$

In Stock, Qty 9

0

0056

Simplicity 0020X3MA

WASHER,SPRING .52X.99

$4.49

$

In Stock, Qty 8

0

0060

Simplicity 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0070

Simplicity 703800

BOLT, CRRG, 5/16-18X1

$3.99

$

In Stock, Qty 18

0

0080

Simplicity 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 7

0

0090

Simplicity 5022665SM

BODY CLIP, 1/4-20 X 1

$3.49

$

Usually ships in 2-12 days

0

0100

Simplicity 5025299X8YP

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

0110

Simplicity 772406

BOLT, Carriage, 3/8-16 x 2
(Superseded to 5025146X16SM)

$4.49

$

Usually ships in 2-12 days

0

0115

Simplicity 703986

RETAINER, PUSHNUT,3/8

$4.49

$

In Stock, Qty 20+

0

0120

Simplicity 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

1000

Simplicity 80110583YB01

BATTERY PACK, 3.5 KW

$

$

Currently unavailable
