BM 1227 MD (1696156-01) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2014) Discharge Chute Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

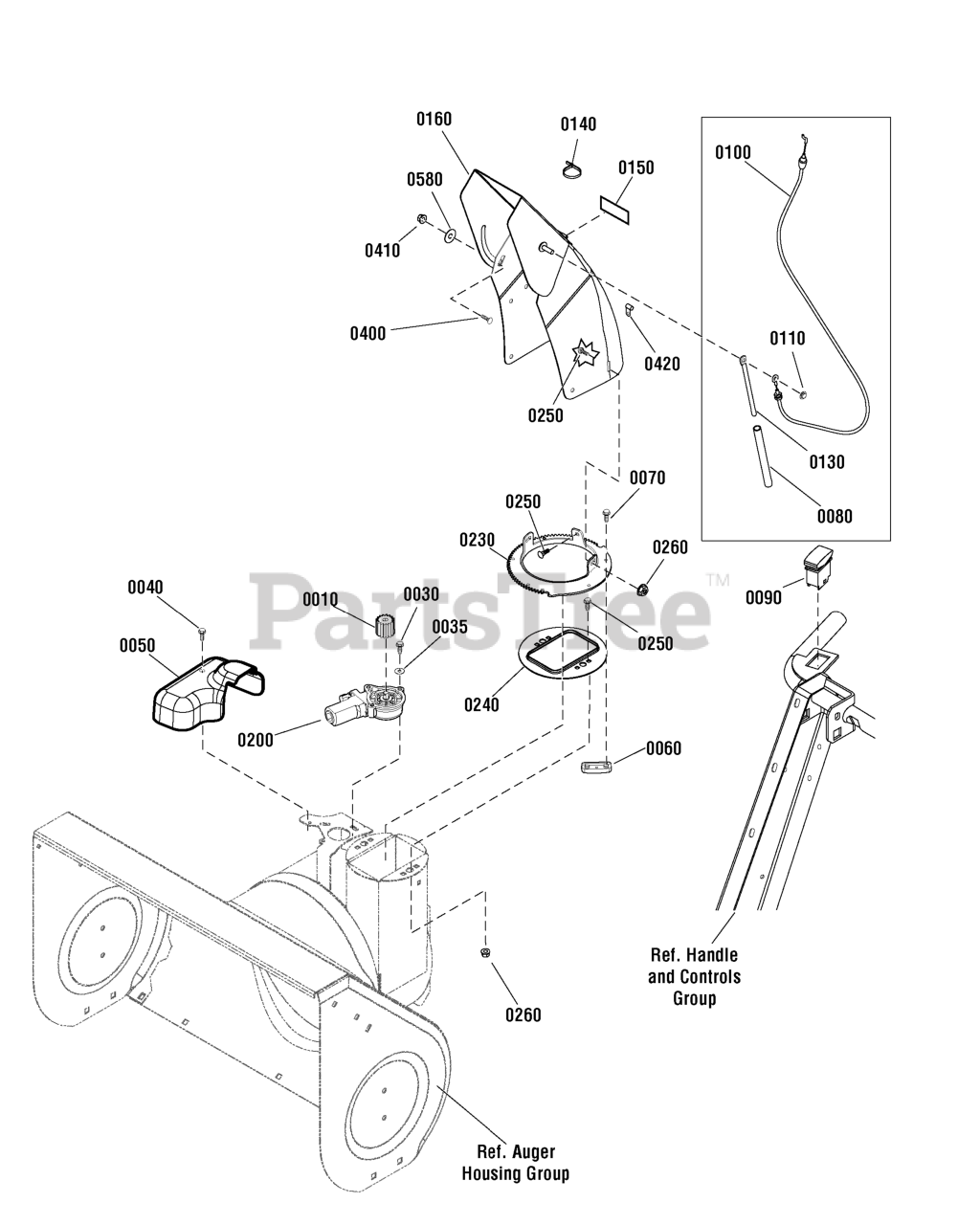

Discharge Chute Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION

$18.99

$

In Stock, Qty 6

0

0030

Murray 1739621YP

SCREW, Button Head, Torx, M5 x .8 x 14

$4.49

$

In Stock, Qty 10

0

0035

Murray 7091552SM

WASHER, Flat, 1/4

$3.99

$

In Stock, Qty 11

0

0040

Murray 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 1752877YP

COVER, Electric Chute Rotation

$17.99

$

In Stock, only 2 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 703062

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8

$4.99

$

In Stock, Qty 20+

0

0080

Murray 703135

SPRING, Compression, 6"

$4.49

$

Usually ships in 2-12 days

0

0090

Murray 1737378YP

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: (Used before Serial No. 2017196021)

$87.99

$

In Stock, only 3 left!

0

0090

Murray 709954

SWITCH, Chute Rotation

Note: (Used after Serial No. 2017196021)

$49.99

$

In Stock, only 3 left!

0

0100

Murray 1750623YP

CABLE ASSEMBLY, Chute Deflector

$49.99

$

In Stock, Qty 11

0

0110

Murray 1932718SM

NUT, Push, 5/16
(Superseded to 704028)

$5.49

$

In Stock, Qty 9

0

0130

Murray 1734708ASM

ROD, Spring Guide

$14.99

$

Usually ships in 2-12 days

0

0140

Murray 7012080SM

CABLE TIE
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0150

Murray 1733601SM

DECAL, Hinge

$12.99

$

In Stock, only 1 left!

0

0160

Murray 1752840AYP

CHUTE

$193.99

$

Usually ships in 2-12 days

0

0200

Murray 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

$91.99

$

In Stock, Qty 10

0

0230

Murray 1737962BMYP

GEAR, Chute

$43.99

$

Usually ships in 2-12 days

0

0240

Murray 1737411YP

ADAPTER, Chute Ring

$20.99

$

Usually ships in 2-12 days

0

0250

Murray 703101

BOLT, Carriage, 1/4-20 x 3/4

$4.49

$

In Stock, only 4 left!

0

0260

Murray 703061

NUT, Hex KEPS, 1/4-20

$3.99

$

In Stock, Qty 11

0

0400

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0410

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0420

Murray 1739331YP

CLIP, Cable
(Superseded to 703174)

$4.49

$

Usually ships in 2-12 days

0

0580

Murray 2860210SM

WASHER, Nylon

$4.99

$

In Stock, only 2 left!

0

1070

Murray 703101

BOLT, Carriage, 1/4-20 x 3/4

$4.49

$

In Stock, only 4 left!
