BM 1227 SE (1696255-00) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2012) Auger Drive Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

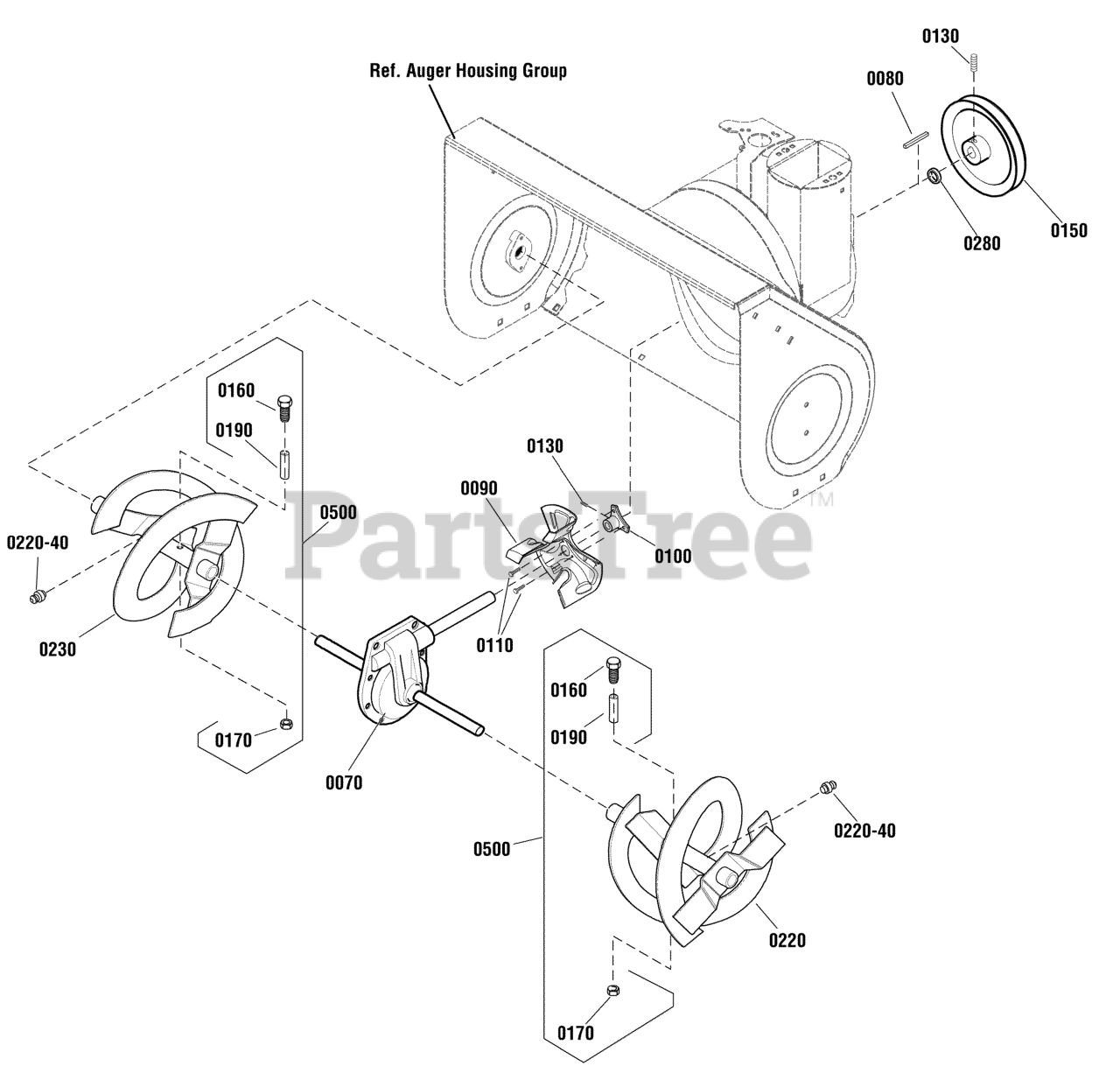

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1755491YP

GEAR CASE ASSEMBLY

$471.99

$

Usually ships in 2-12 days

0

0080

Murray 056534MA

KEY, Square, 3/16 x 1

$5.49

$

In Stock, only 2 left!

0

0090

Murray 1739094BJYP

IMPELLER
(Superseded to 1687600YP)

$91.99

$

In Stock, only 2 left!

0

0100

Murray 1739073YP

HUB, Impeller

$24.99

$

In Stock, only 2 left!

0

0110

Murray 1930601SM

SCREW, Hex Washer Head, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

0130

Murray 7090848SM

SET SCREW, Socket Head, 5/16 x 1/2

$10.99

$

Usually ships in 2-12 days

0

0150

Murray 1501211MA

PULLEY

$76.99

$

In Stock, only 2 left!

0

0160

Murray 9524MA

SCREW, 1/4-20 x 1-3/4
(Superseded to 703057)

$6.49

$

In Stock, only 3 left!

0

0170

Murray 73826MA

NUT, Hex Centerlock, 1/4-20
(Superseded to 703251)

$5.49

$

In Stock, Qty 12

0

0190

Murray 3943MA

SPACER, Sleeve, 1/4
(Superseded to 703058)

$7.49

$

In Stock, only 2 left!

0

0220

Murray 1740736BJYP

AUGER, 27" LH

Note: (Includes Ref. 0220-40)

$164.99

$

In Stock, only 2 left!

0

0230

Murray 1740737BJYP

AUGER, 27" RH

Note: (Includes Ref. 0220-40)

$187.99

$

In Stock, only 1 left!

0

0220-40

Murray 10104MA

ZERK, Grease Fitting
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0280

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 7

0

0500

Murray 1501216MA

KIT, Shear Bolt

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$5.49

$

In Stock, Qty 20+

0
