BM 924 E (1696254-00) - Briggs & Stratton 24" Snow Thrower, 9.0 Gross TP (2012) Auger Housing Group Parts Diagram

24" Snow Thrower, 9.0 Gross TP

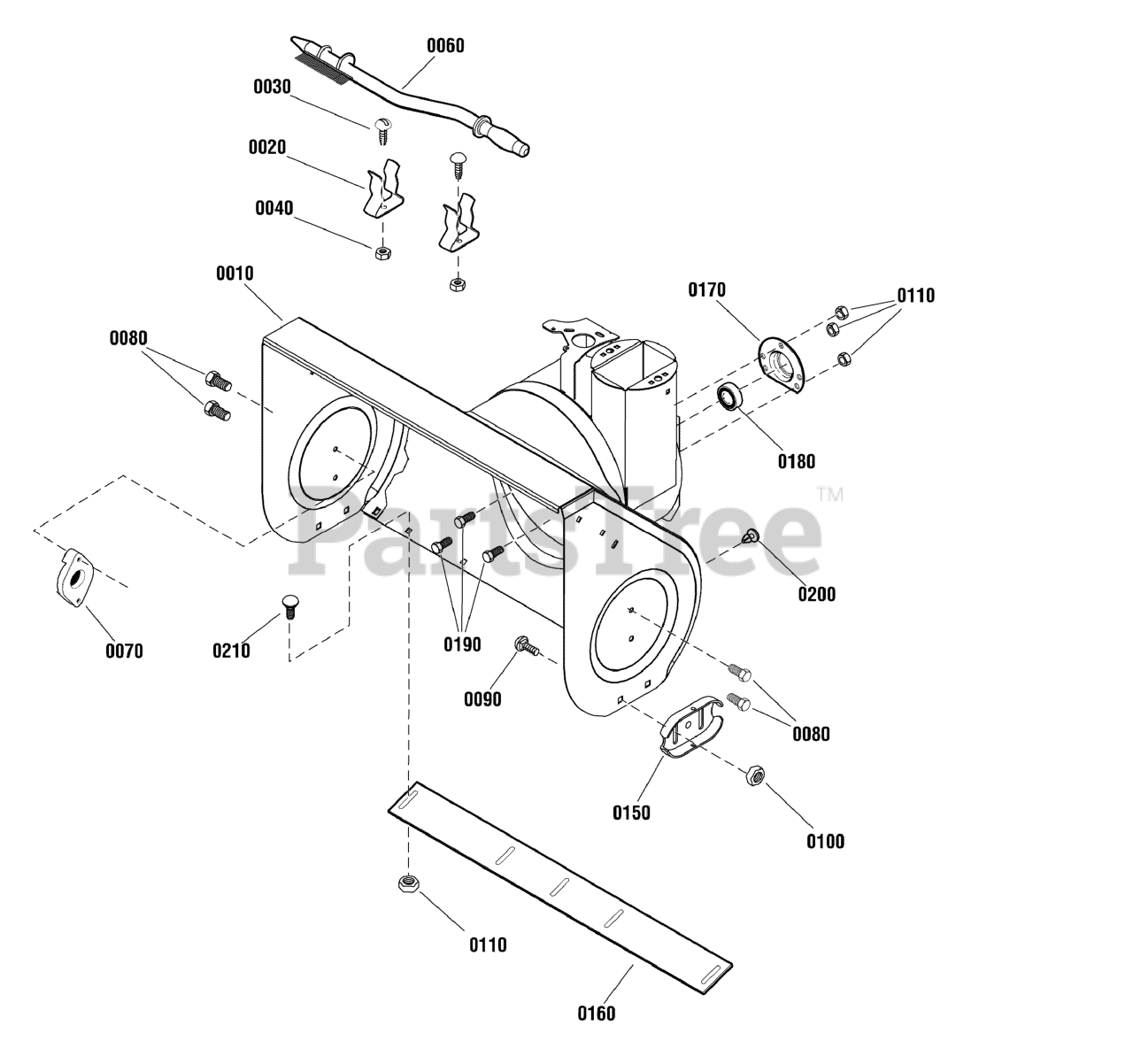

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687694YP

AUGER HOUSING

$452.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP, Spring

$6.99

$

In Stock, Qty 8

0

0030

Murray 1960569SM

SCREW, Truss Head, Torx #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 703412

NUT, Hex Lock, Nylon, #10C

$4.49

$

In Stock, Qty 5

0

0060

Murray 1736094YP

BRUSH, Cleanout

$36.99

$

In Stock, only 2 left!

0

0070

Murray 9517MA

BEARING, Auger

$6.49

$

Usually ships in 2-12 days

0

0080

Murray 703235

CAPSCREW, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 703448

BOLT, Carriage, 3/8-16 x 3/4, G5

$4.49

$

In Stock, Qty 20+

0

0100

Murray 703333

NUT, Hex Flange, 3/8-16

$4.99

$

In Stock, Qty 8

0

0110

Murray 706409

NUT, Hex Flange, Serrated Lock, 5/16-18

$12.99

$

Usually ships in 2-12 days

0

0150

Murray 1727854BMYP

SKID, Height Adjust

$16.99

$

In Stock, Qty 13

0

0160

Murray 1738301AYP

BLADE, Scraper

$

$

Not available

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$11.99

$

In Stock, only 2 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 703822

CAPSCREW, Hex Head, 5/16-18 x 5/8

$4.49

$

In Stock, only 1 left!

0

0200

Murray 760040MA

PLUG

$

$

Not available

0210

Murray 703447

BOLT, Carriage, 5/16-18 x 5/8, G5

$4.49

$

In Stock, Qty 18

0
