BP 25 - Shindaiwa Brush Cutter, Backpack Engine Cover / Fan Cover / Crankcase Parts Diagram

Brush Cutter, Backpack

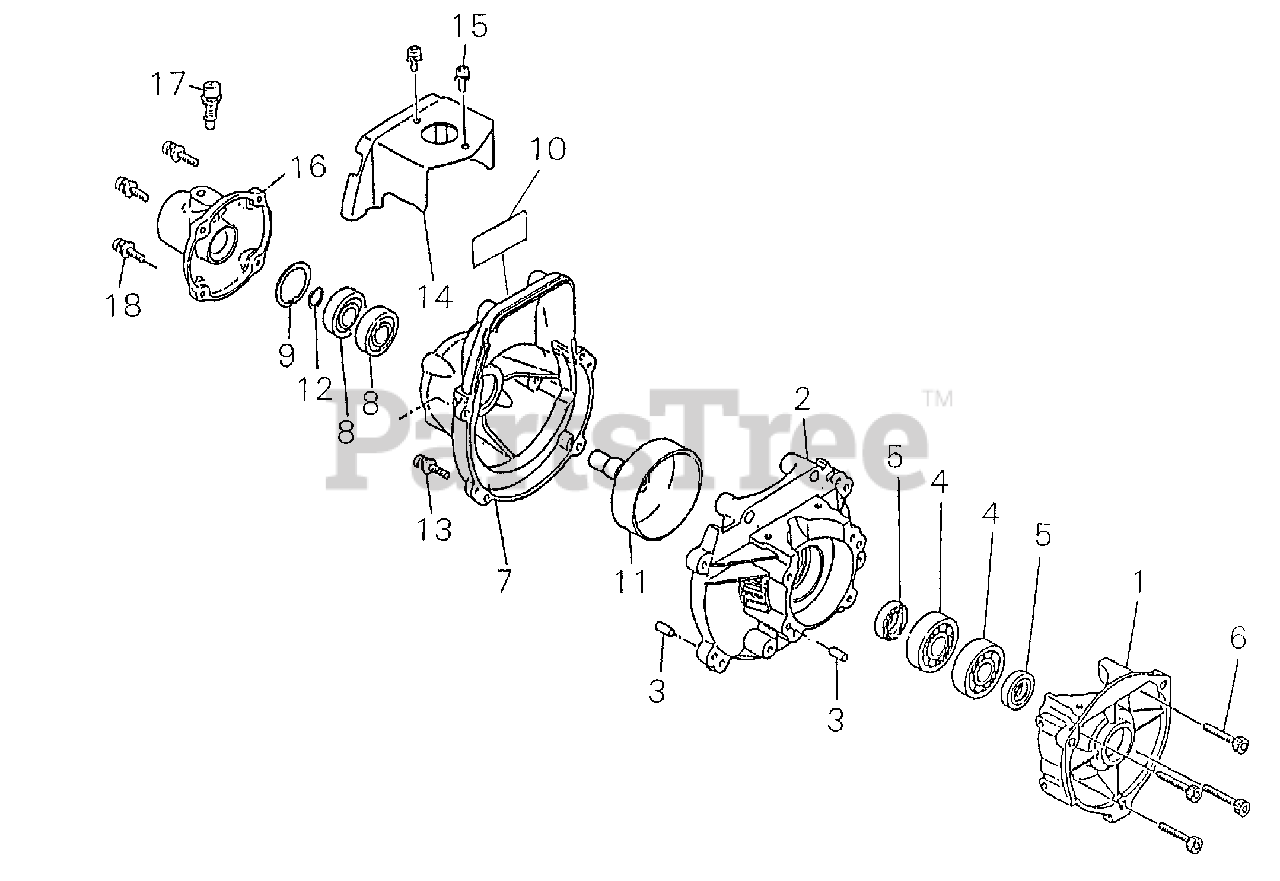

Engine Cover / Fan Cover / Crankcase Parts Diagram

  • Title

1

Echo 70095-21110

CRANKCASE S
(Superseded to Discontinued)

$

$

Not available

2

Echo 70095-21120

CRANKCASE M
(Superseded to Discontinued)

$

$

Not available

3

Echo 12492-50100

PIN, LOCATING 5×10

$2.49

$

Usually ships in 2-4 days

0

4

Echo 12900-62010

BEARING, BALL 6201 C3
(Superseded to V592000110)

$9.99

$

In Stock, only 3 left!

0

5

Echo 20000-21211

SEAL, OIL 12
(Superseded to V505000080)

$3.49

$

In Stock, Qty 5

0

6

Echo 01020-05250

BOLT 5×25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 8

0

7

Echo 70095-31110

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

8

Echo 02006-06001

BEARING, BALL 6001 DDU
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

9

Echo 02432-28120

RING, SNAP Ø28
(Superseded to 9242428000)

$1.99

$

In Stock, Qty 20+

0

10

Echo 70061-31151

LABEL, TRADE
(Superseded to Discontinued)

$

$

Not available

11

Echo 20112-31210

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

12

Echo 20000-31140

RING, SNAP Ø12
(Superseded to V583000170)

$1.49

$

In Stock, Qty 20+

0

13

Echo 11206-05200

SCREW M5×20
(Superseded to 9157405020)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 20055-32210

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

15

Echo 11206-05120

SCREW M5×12
(Superseded to 9157405012)

$1.49

$

In Stock, Qty 9

0

16

Echo 20055-35130

CUSHION, AV

$

$

Not available

17

Echo 20112-35200

PIN ASSY
(Superseded to P021018640)

$12.99

$

Usually ships in 2-4 days

0

18

Echo 11022-05200

BOLT M5×20
(Superseded to V203000350)

$1.49

$

In Stock, Qty 8

0
