BP 40 - Jonsered Backpack String Trimmer (1995-02) COVER Parts Diagram

Backpack String Trimmer

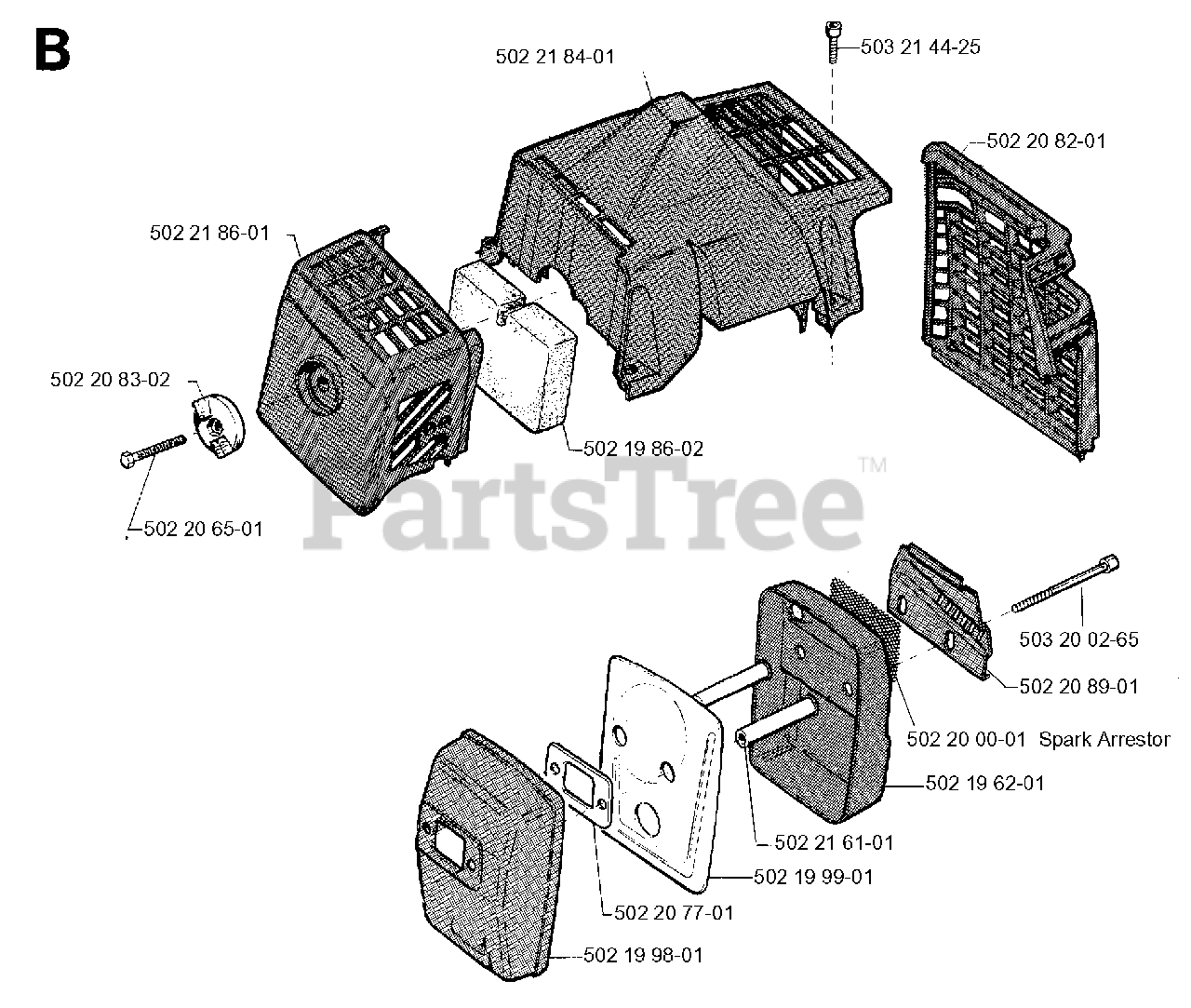

COVER Parts Diagram

  • Title

5022184-01

Jonsered 502218401

CYLINDER COVER

$

$

Not available

5022186-01

Jonsered 502218601

COVER
(Superseded to 537028801)

$22.35

$

Usually ships in 3-10 days

0

5022083-02

Jonsered 502208302

KNOB

$9.99

$

In Stock, Qty 11

0

5022065-01

Jonsered 502206501

SCREW 25MM THREAD LENGTH

$6.49

$

In Stock, Qty 9

0

5021998-01

Jonsered 502199801

BAFFLE

$

$

Not available

5022077-01

Jonsered 502207701

FLANGE

$

$

Not available

5021999-01

Jonsered 502199901

PLATE

$

$

Not available

5022161-01

Jonsered 502216101

TUBE

$

$

Not available

5021962-01

Jonsered 502196201

BAFFLE
(Superseded to 503798101)

$

$

Not available

5022000-01

Jonsered 502200001

SPARK ARRESTOR

Note: SPARK ARRESTOR

$

$

Not available

5022089-01

Jonsered 502208901

DEFLECTOR

$

$

Not available

5032002-65

Jonsered 503200265

SCREW

$6.49

$

In Stock, only 1 left!

0

5021986-02

Jonsered 502198602

AIR FILTER

$8.99

$

In Stock, Qty 20+

0

5022082-01

Jonsered 502208201

HEAT PROTECTOR

$

$

Not available

5032144-25

Jonsered 503214425

SCREW

$4.99

$

Usually ships in 3-10 days

0
