BP 40 LA - Shindaiwa Brush Cutter, Backpack Gearcase Parts Diagram

Brush Cutter, Backpack

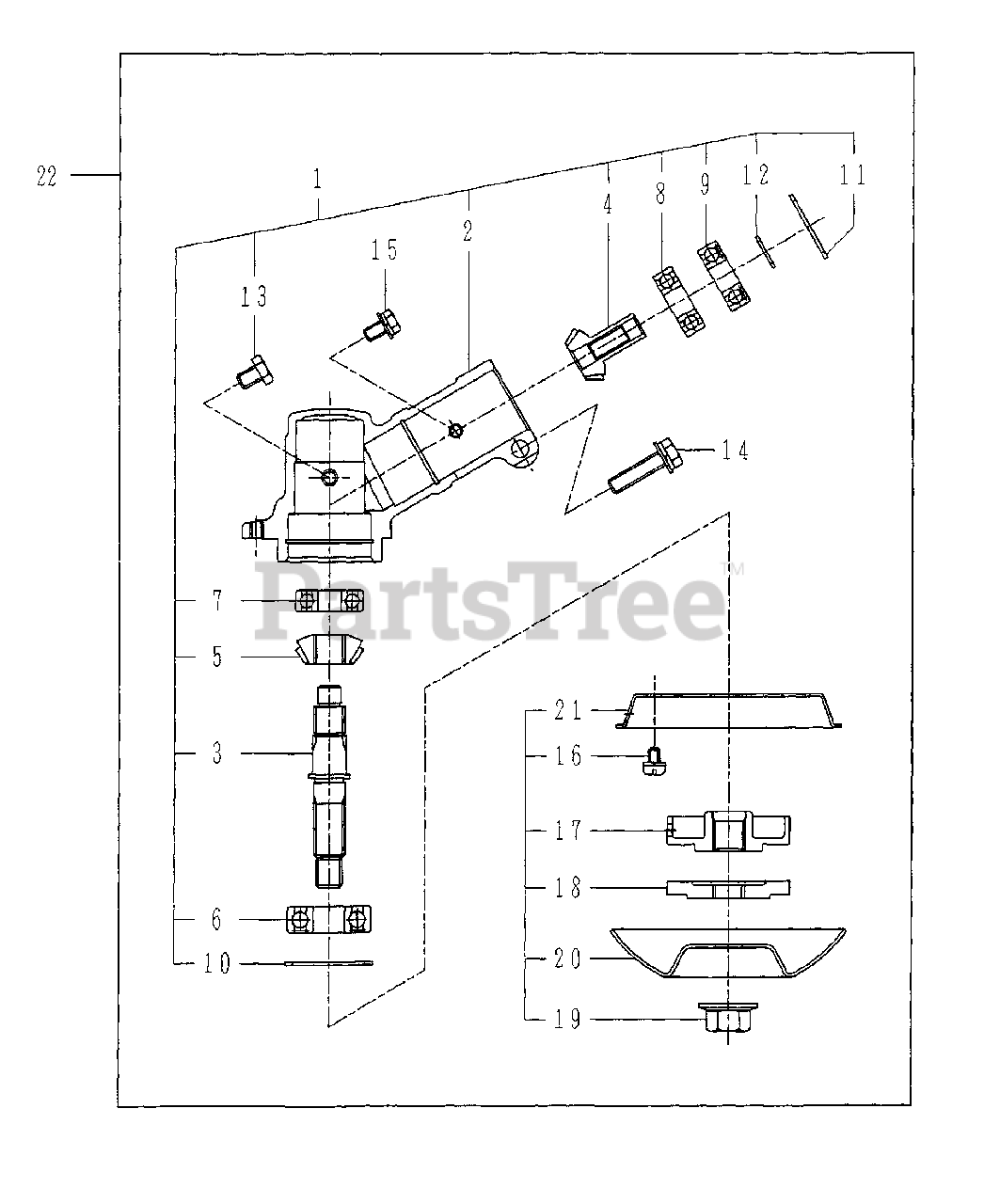

Gearcase Parts Diagram

  • Title

22

Echo 2411-460A

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 2411-015A

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 2411-004A

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

3

Echo 4111-011A

GEAR - SHAFT
(Superseded to Discontinued)

$

$

Not available

4

Echo 4141-006A

GEAR - BEVEL
(Superseded to Discontinued)

$

$

Not available

5

Echo 4141-007A

GEAR - BEVEL
(Superseded to Discontinued)

$

$

Not available

6

Echo 605A6201

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

7

Echo 801A0629

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

8

Echo 801A6000

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

9

Echo 802A6000

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

10

Echo 481J3200

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

11

Echo 481J2600

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

12

Echo 480J1000

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

13

Echo 110B0608

BOLT
(Superseded to Discontinued)

$

$

Not available

14

Echo 197B0630

BOLT
(Superseded to Discontinued)

$

$

Not available

15

Echo 197B0512

BOLT
(Superseded to Discontinued)

$

$

Not available

16

Echo 223D0508

BOLT
(Superseded to Discontinued)

$

$

Not available

17

Echo 3425-019C

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

18

Echo 3425-018D

ADAPTOR, BLADE - LOWER
(Superseded to Discontinued)

$

$

Not available

19

Echo 350D1000

NUT

$

$

Not available

20

Echo 3421-006C

GUARD
(Superseded to Discontinued)

$

$

Not available

21

Echo 3426-004E

SHIELD, DEBRIS
(Superseded to Discontinued)

$

$

Not available
