BP 402 LE - Poulan Pro Backpack Blower Starter Parts Diagram

Backpack Blower

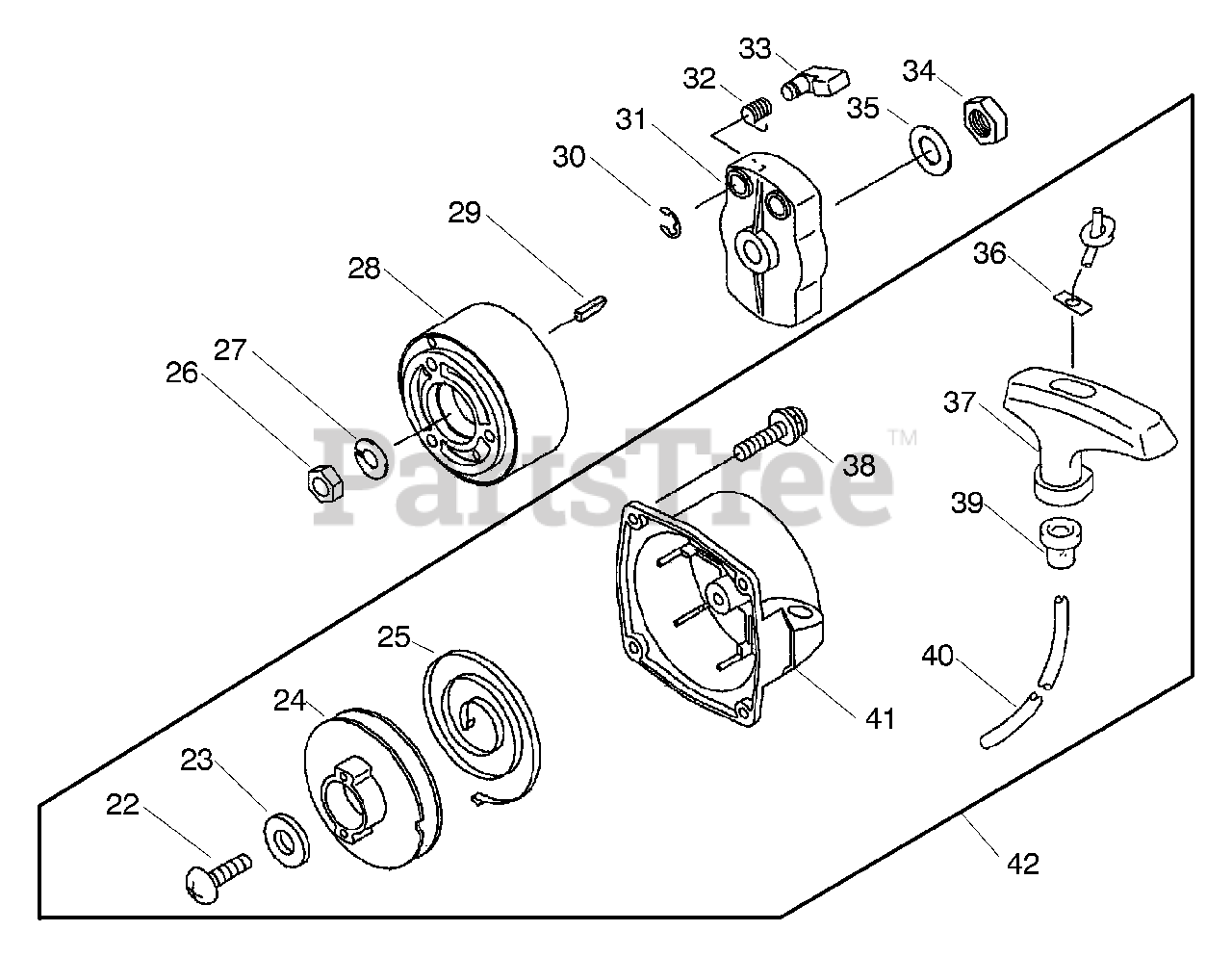

Starter Parts Diagram

  • Title

22

Poulan 920092218

Screw

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 922002019

Washer

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 591012085

Reel-Starter Recoil

$24.99

$

Usually ships in 3-10 days

0

25

Poulan 921442038

Spring-Recoil

$24.99

$

Usually ships in 3-10 days

0

26

Poulan 314R1000

Nut-Hex (fine)
(Superseded to 545145454)

$2.49

$

Usually ships in 3-10 days

0

27

Poulan 920222147

Washer

$

$

Not available

28

Poulan 210502290

Flywheel

$103.99

$

Usually ships in 3-10 days

0

29

Poulan 920382078

Key

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 920332010

Ring-Snap

$2.49

$

Usually ships in 3-10 days

0

31

Poulan 490802189

Pulley-Starting

$

$

Not available

32

Poulan 921442046

Spring-Return
(Superseded to 531003367)

$

$

Not available

33

Poulan 131652084

Pawl-Recoil Starter

$

$

Not available

34

Poulan 315B0800

Nut-Hex (fine)
(Superseded to 545145455)

$1.49

$

Usually ships in 3-10 days

0

35

Poulan 410B0800

W-Plain-S

$0.99

$

Usually ships in 3-10 days

0

36

Poulan 131692386

Plate-Recoil Starter

$

$

Not available

37

Poulan 530058416

Grip-Recoil Starter

$

$

Not available

38

Poulan 530058422

Screw

$

$

Not available

39

Poulan 130702064

Guide-Rope

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 591062117

Rope 3.8x850

$12.99

$

Usually ships in 3-10 days

0

41

Poulan 320992210

Case-Recoil Starter

$

$

Not available

42

Poulan 490882380

Starter-Recoil

Note: (incl.# 21-24, 35-40)

$

$

Not available
