BP 402 - Poulan Pro Backpack Blower Carburetor Assembly Parts Diagram

Backpack Blower

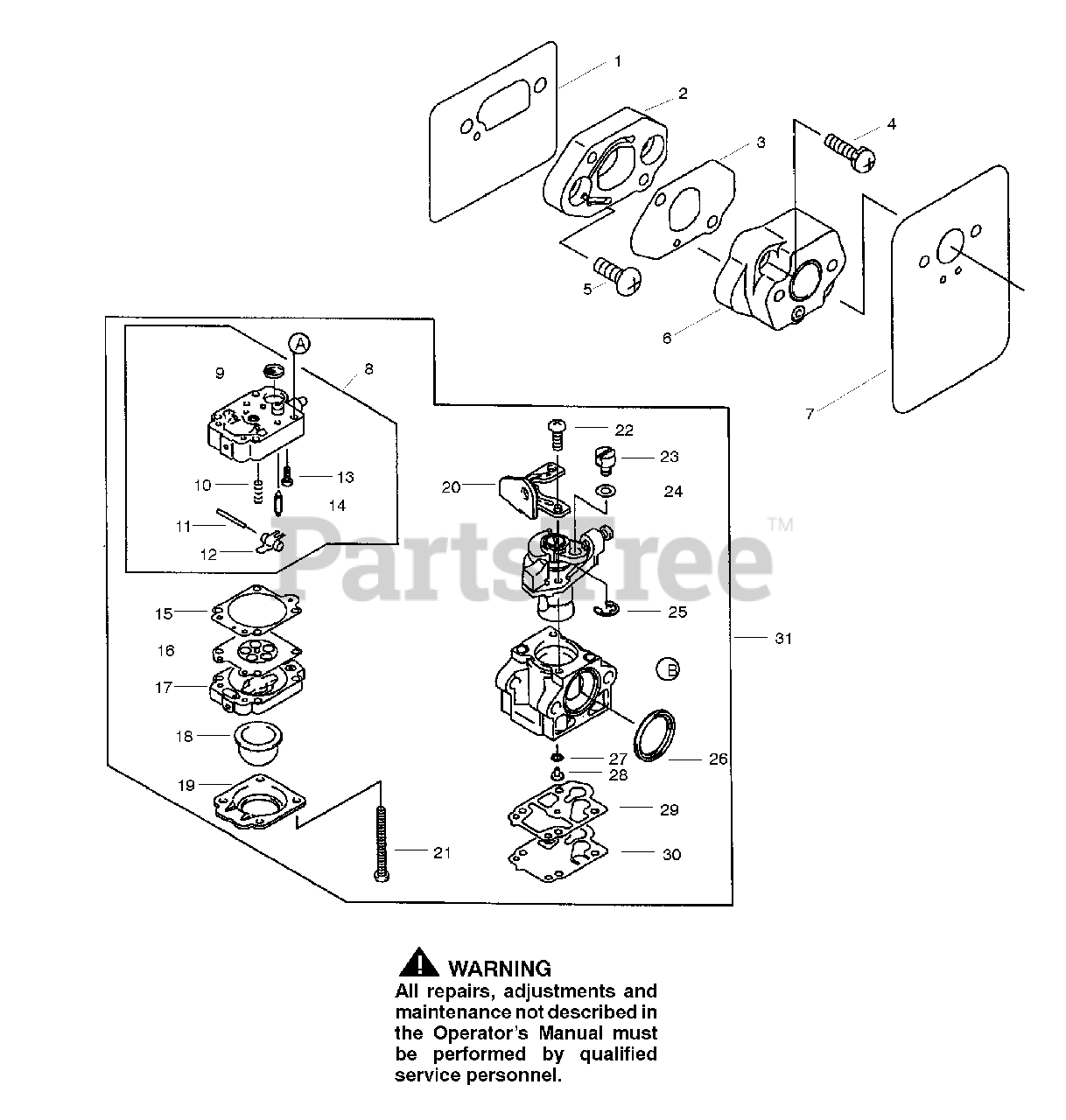

Carburetor Assembly Parts Diagram

  • Title

1

Poulan 530058433

Gasket-Insulator

$

$

Not available

2

Poulan 530058431

Adapter

$

$

Not available

3

Poulan 530058434

Gasket

$

$

Not available

4

Poulan 233B0520

Screw-Pan-WP

$0.99

$

Usually ships in 3-10 days

0

5

Poulan 214B0616

Screw-Pan

$

$

Not available

6

Poulan 530058432

Insulator

$

$

Not available

7

Poulan 530058435

Gasket
(Superseded to 110602388)

$5.99

$

Usually ships in 3-10 days

0

8

Poulan 530058477

Body

$

$

Not available

9

Poulan 140432051

Filter

$

$

Not available

10

Poulan 530058449

Spring
(Superseded to 921442308)

$3.49

$

In Stock, only 1 left!

0

11

Poulan 920432094

Pin

$

$

Not available

12

Poulan 530058453

Lever
(Superseded to 160552051)

$

$

Not available

13

Poulan 530058450

Screw

$

$

Not available

14

Poulan 160302078

Valve-Float

$

$

Not available

15

Poulan 530058454

Gasket

$

$

Not available

16

Poulan 530058455

Diaphragm

$

$

Not available

17

Poulan 530058456

Body

$

$

Not available

18

Poulan 530058457

Pump-Priming
(Superseded to 490432067)

$

$

Not available

19

Poulan 530058458

Cover-Primer Pump

$

$

Not available

20

Poulan 530058437

Bracket

$

$

Not available

21

Poulan 530058459

Screw

$

$

Not available

22

Poulan 530058438

Screw
(Superseded to 920092277)

$

$

Not available

23

Poulan 530058439

Arm
(Superseded to 210832073)

$

$

Not available

24

Poulan 530058440

Washer
(Superseded to 922002074)

$

$

Not available

25

Poulan 530058441

Ring-Snap

$

$

Not available

26

Poulan 530058442

Packing

$

$

Not available

27

Poulan 920552147

O-Ring

$

$

Not available

28

Poulan 530058444

Jet-Main #60

$

$

Not available

29

Poulan 530058445

Gasket

$

$

Not available

30

Poulan 530058446

Diaphragm
(Superseded to 430282067)

$

$

Not available

31

Poulan 530058436

Assy-Carburetor (WYK-106-108)
(Superseded to 150032738)

$341.99

$

In Stock, only 2 left!

0
