BP 402 - Poulan Pro Backpack Blower Cylinder & Crankcase Assembly Parts Diagram

Backpack Blower

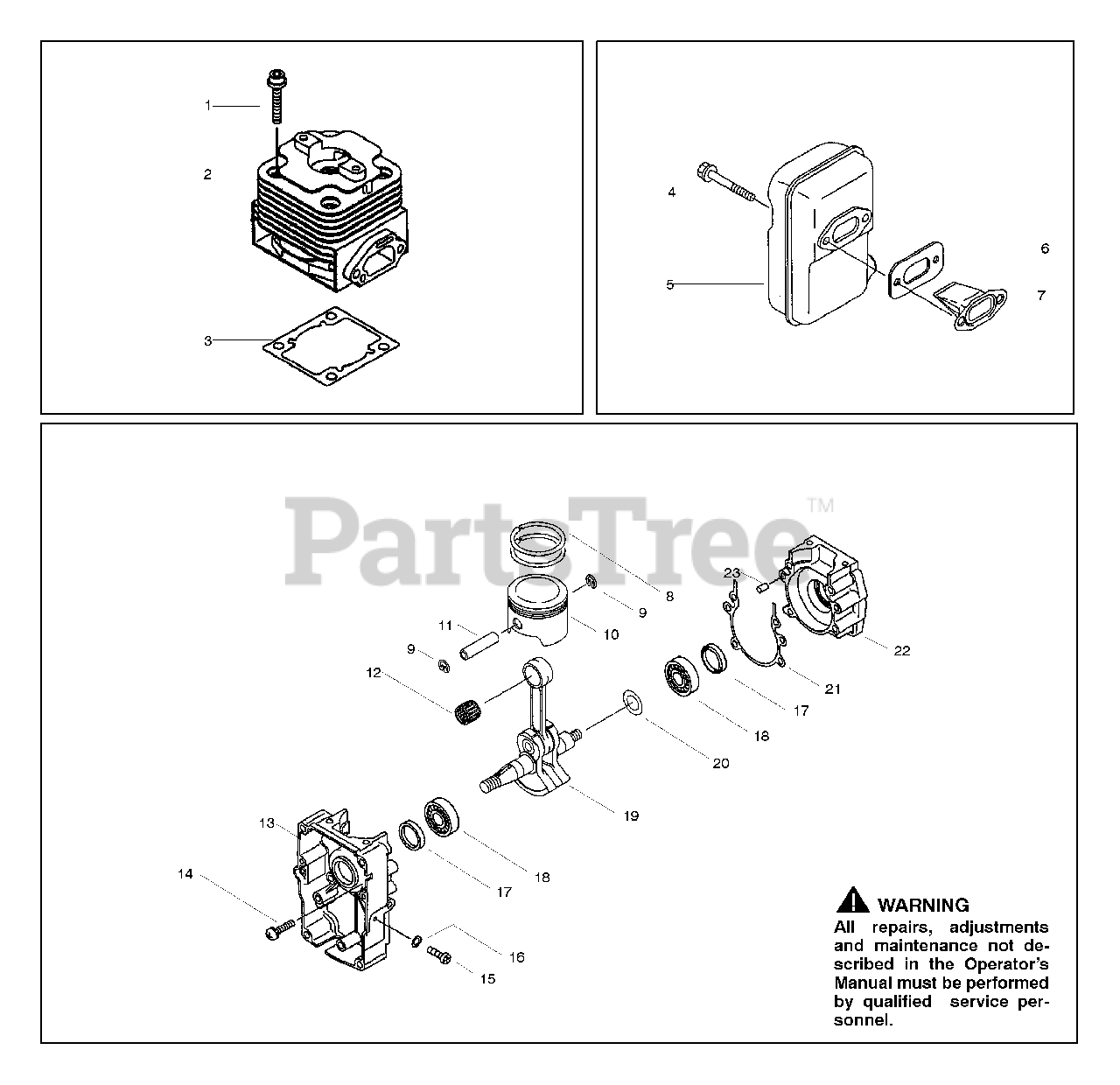

Cylinder & Crankcase Assembly Parts Diagram

  • Title

1

Poulan 530058381

Bolt

$

$

Not available

2

Poulan 110052133

Cylinder-Engine

$

$

Not available

3

Poulan 110602350

Gasket-Cylinder

$

$

Not available

4

Poulan 921502180

Bolt 6x65

$

$

Not available

5

Poulan 490702577

Muffler-Comp.
(Superseded to 490702751)

$

$

Not available

6

Poulan 110092873

Gasket-Muffler

$

$

Not available

7

Poulan 180772093

Arrester-Spark

$

$

Not available

8

Poulan 530094023

Ring-Piston Set

$

$

Not available

9

Poulan 530094025

Ring-Snap

$

$

Not available

10

Poulan 130012121

Piston-Engine

$

$

Not available

11

Poulan 530094024

Pin-Piston

$

$

Not available

12

Poulan 530094027

Bearing-Needle

$

$

Not available

13

Poulan 140022330

Crankcase

$

$

Not available

14

Poulan 223B0630

Screw-Pan-WS

$0.99

$

Usually ships in 3-10 days

0

15

Poulan 214B0608

Screw-Pan

$0.99

$

Usually ships in 3-10 days

0

16

Poulan 751Q0600

Gasket

$0.99

$

Usually ships in 3-10 days

0

17

Poulan 920492076

Seal-Oil

$

$

Not available

18

Poulan 920452005

Bearing-Ball 6202C3

$

$

Not available

19

Poulan 530058389

Assy-Crankshaft

Note: (incl. #12)

$

$

Not available

20

Poulan 920252134

Shim-T=0.10

$

$

Not available

20

Poulan 920252135

Shim-T=0.20

$

$

Not available

20

Poulan 530094030

Shim-T=0.40

$

$

Not available

20

Poulan 530058394

Shim-T=0.60

$

$

Not available

21

Poulan 110092521

Gasket-Crankcase

$2.49

$

In Stock, only 1 left!

0

22

Poulan 140022333

Crankcase

$

$

Not available

23

Poulan 551A0610

Pin-Dowel

$0.99

$

Usually ships in 3-10 days

0
