BP 402 - Poulan Pro Backpack Blower Tank & Air Filter Assembly Parts Diagram

Backpack Blower

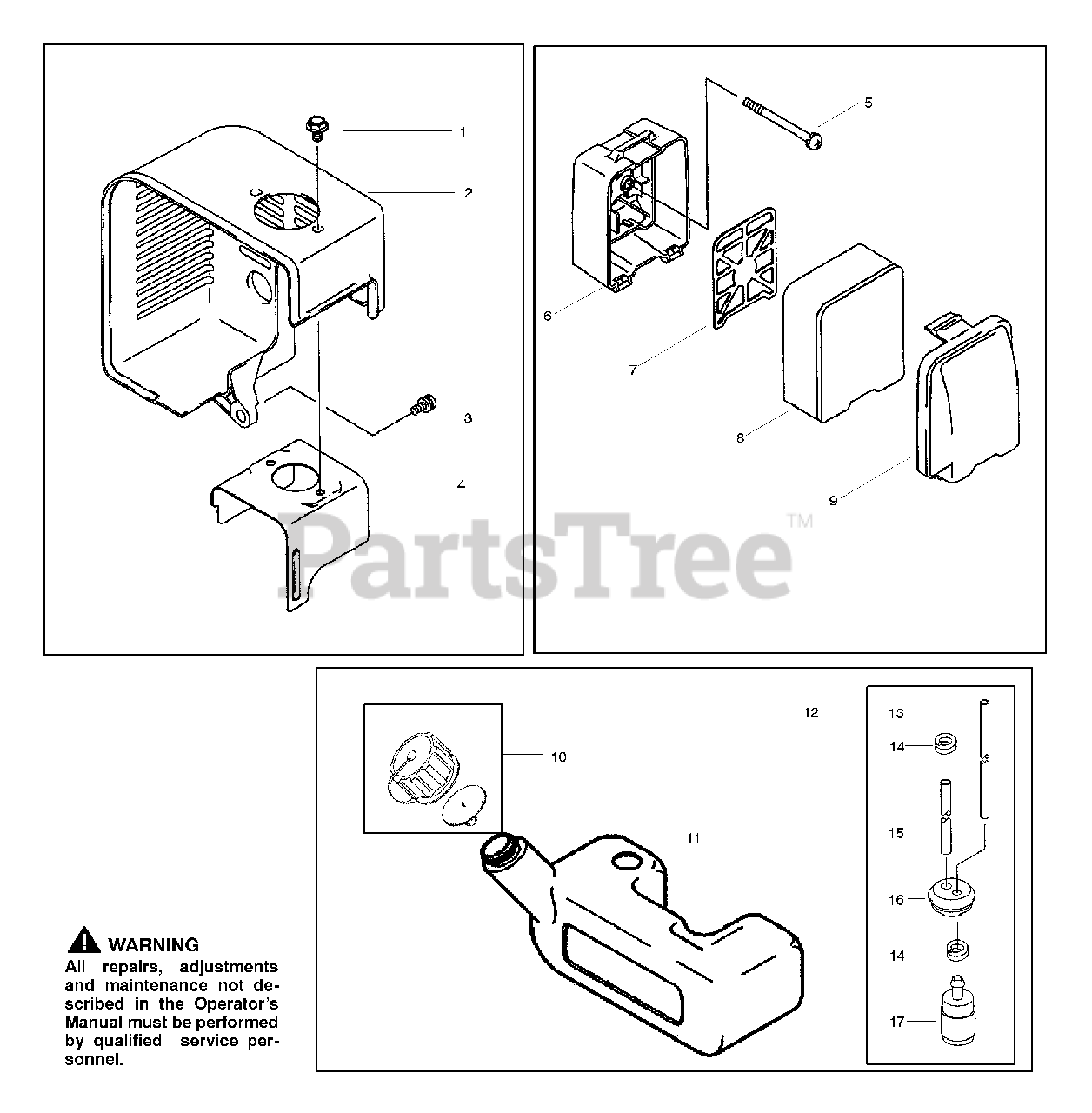

Tank & Air Filter Assembly Parts Diagram

  • Title

1

Poulan 921512063

Bolt

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 490892370

Shroud-Engine

$

$

Not available

3

Poulan 920092285

Screw

$

$

Not available

4

Poulan 490892298

Shroud-Engine

$9.99

$

Usually ships in 3-10 days

0

5

Poulan 920092274

Screw

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 530058475

Assy-Air Filter Case

$

$

Not available

7

Poulan 530058477

Plate-Air Filter

$

$

Not available

8

Poulan 530058478

Element-Air Filter
(Superseded to 531004430)

$13.99

$

In Stock, Qty 14

0

9

Poulan 530058479

Cap-Air Filter

$27.99

$

Usually ships in 3-10 days

0

10

Poulan 530058366

Assy-Tank Cap

$40.99

$

In Stock, only 1 left!

0

11

Poulan 36066-113

Tank-Fuel
(Superseded to 695000572)

$

$

Not available

12

Poulan 530058367

Assy-Fuel Pickup

Note: (Incl. 13-17)

$84.99

$

Usually ships in 3-10 days

0

13

Poulan 530058473

Tube 3x5x250

$

$

Not available

14

Poulan 530058472

Clamp-Fuel Filter
(Superseded to 921712073)

$1.49

$

In Stock, Qty 20+

0

15

Poulan 530058474

Tube 3x6x130
(Superseded to 921912049)

$

$

Not available

16

Poulan 530058471

Grommet-Tank
(Superseded to 920712142)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 530058470

Filter-Fuel
(Superseded to 490192085)

$8.99

$

In Stock, only 1 left!

0
