BP 406 - Poulan Pro Backpack Blower (2007-06) ENGINE Parts Diagram

Backpack Blower

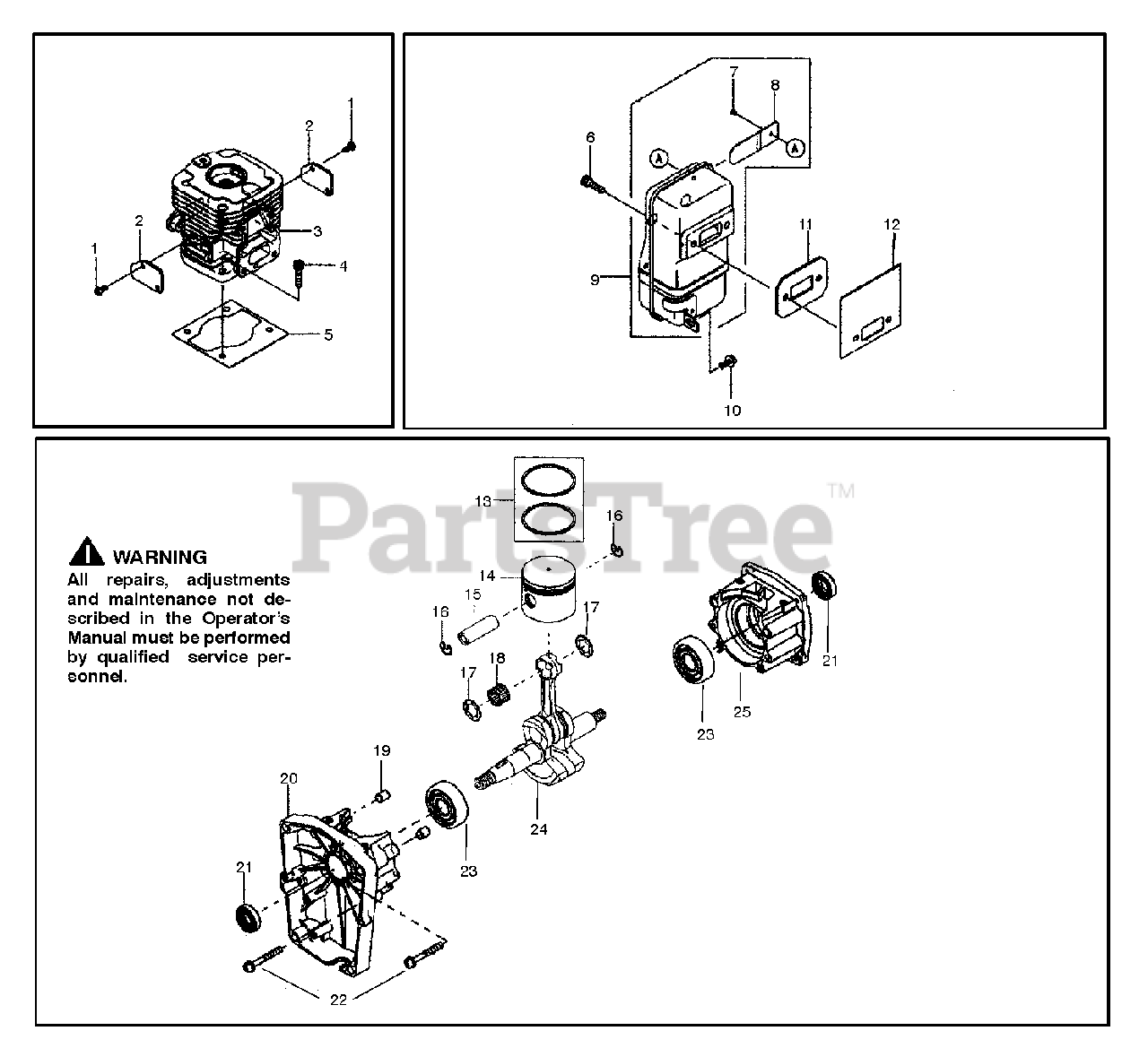

ENGINE Parts Diagram

  • Title

1

214b0408

$

$

Not available

2

Poulan 132712250

PLATE

$

$

Not available

3

Poulan 110052156

CYLINDER ENGINE

$

$

Not available

4

Poulan 545145461

BOLT SOCKET 5 X 20

$

$

Not available

5

Poulan 110612148

GASKET CYLINDER BP406

$

$

Not available

6

Poulan 545145465

BOLT SOCKET 6 X 20

$

$

Not available

7

Poulan 920092411

SCREW

$

$

Not available

8

Poulan 180772134

ARRESTER SPARK

$

$

Not available

9

Poulan 490692417

MUFFLER ASSY

$

$

Not available

10

Poulan 545145467

SCREW PAN WSP 5 X 14

$

$

Not available

11

Poulan 110612186

GASKET

$

$

Not available

12

Poulan 110612188

GASKET OTHER - GAS L/G PARTS

$

$

Not available

13

Poulan 130086067

RING SET PISTON

$

$

Not available

14

Poulan 130012164

PISTON ENGINE

$

$

Not available

15

Poulan 130022094

PIN PISTON

$

$

Not available

16

Poulan 920332058

SNAP RING

$

$

Not available

17

Poulan 920262352

SPACER

$

$

Not available

18

Poulan 130332059

BEARING SMALL END

$

$

Not available

19

Poulan 920431302

PIN

$

$

Not available

20

Poulan 140802057

CRANKCASE

$

$

Not available

21

Poulan 920492259

SEAL OIL ISCD-15-25-7-F

$

$

Not available

22

Poulan 545145462

SCREW PAN WSP 5 X 40

$

$

Not available

23

Poulan 920452269

BEARING BALL 6302C3

$

$

Not available

24

Poulan 491192224

CRANKSHAFT ASSY

$

$

Not available

25

Poulan 140802058

CRANKCASE

$

$

Not available
