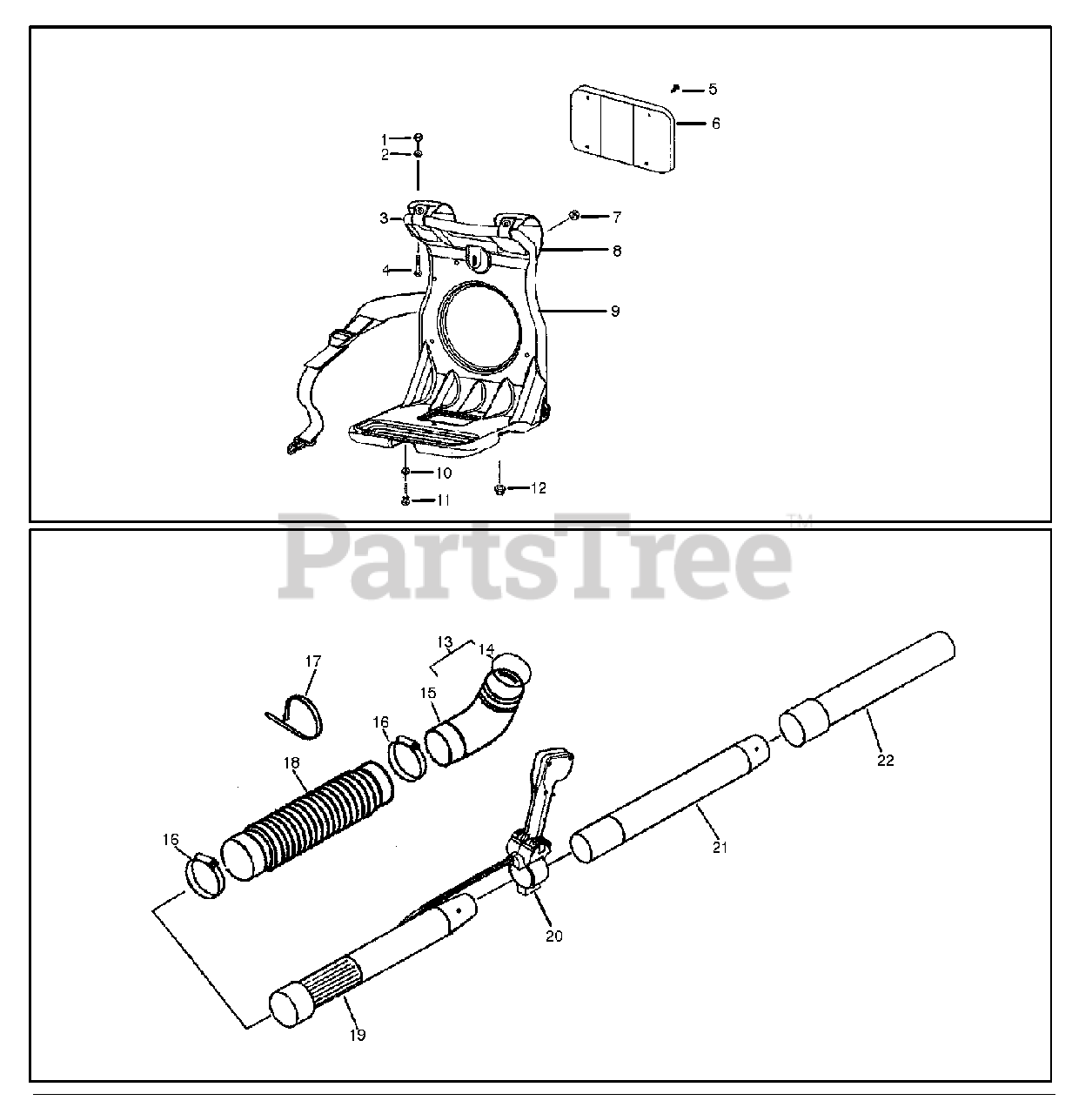

BP 406 - Poulan Pro Backpack Blower (2007-06) FRAME Parts Diagram

Backpack Blower

FRAME Parts Diagram

  • Title

1

Poulan 545145468

FLANGE NYLON NUT M6

$

$

Not available

2

Poulan 545145469

WASHER

$

$

Not available

3

Poulan 545145470

SHOULDER BAND

$

$

Not available

4

Poulan 376L0616

$

$

Not available

5

Poulan 545145473

CLIP

$

$

Not available

6

Poulan 545145474

KNAPSACK PAD

$

$

Not available

7

Poulan 545145472

NUT

$

$

Not available

8

Poulan 545145471

SHOULDER BAND

$

$

Not available

9

Poulan 545145478

KNAPSACK FRAME

$

$

Not available

10

Poulan 545145469

WASHER

$

$

Not available

11

Poulan 545145475

SCREW W/SW M6 X 25 375L0625

$

$

Not available

12

Poulan 545145472

NUT

$

$

Not available

13

Poulan 545145481

ELBOW PIPE C.P.

$

$

Not available

14

Poulan 545145482

O RING

$

$

Not available

15

Poulan 545145483

ELBOW PIPE

$

$

Not available

16

Poulan 545145484

HOSE BAND

$

$

Not available

17

Poulan 545145485

WIRE BAND

$

$

Not available

18

Poulan 545145486

FLEX PIPE

$

$

Not available

19

Poulan 545145487

BASE PIPE

$

$

Not available

20

Poulan 545145488

THROTTLE LEVER ASSY

$

$

Not available

21

Poulan 545145489

MIDDLE PIPE

$

$

Not available

22

Poulan 545145490

BEND PIPE

$

$

Not available
