BP 406 - Poulan Pro Backpack Blower (Original) Fuel Tank Parts Diagram

Backpack Blower

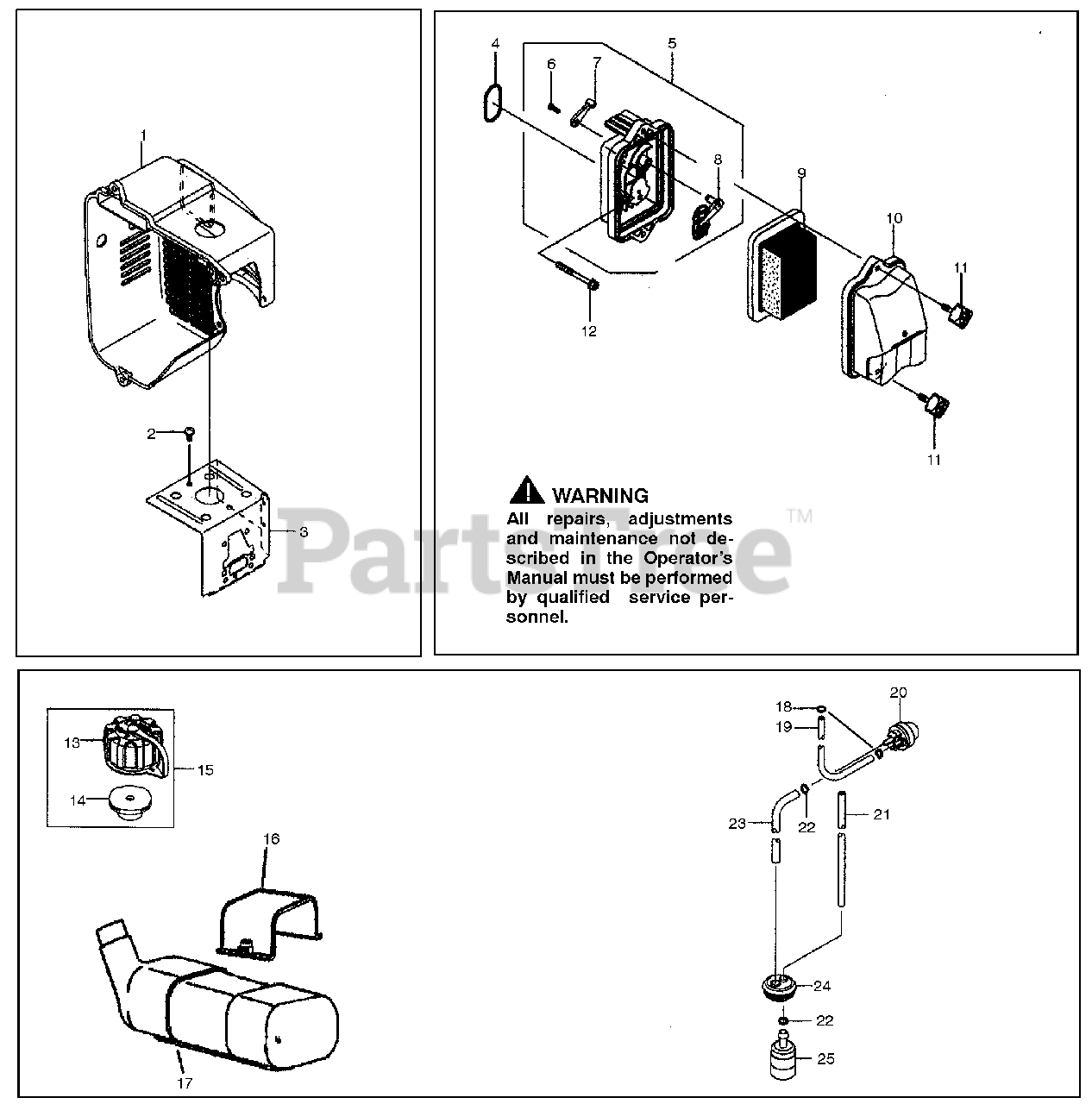

Fuel Tank Parts Diagram

  • Title

1

Poulan 490892635

Shround-Engine "A"

$

$

Not available

2

Poulan 545145463

Screw m5x10

$

$

Not available

3

Poulan 490892612

Shround-Engine

$

$

Not available

4

Poulan 920552205

O-Ring 31.2 i.d.

$

$

Not available

5

Poulan 110382091

Assy-Air filter case

$

$

Not available

6

Poulan 920092359

Screw m3x10

$

$

Not available

7

Poulan 131682493

Lever

$

$

Not available

8

Poulan 161262241

Valve

$

$

Not available

9

Poulan 110292022

Element-Air Filter

$

$

Not available

10

Poulan 110652119

Cap-Air Filter

$

$

Not available

11

Poulan 921532107

Bolt m5x18

$

$

Not available

12

Poulan 545145466

Screw m5x55

$

$

Not available

13

Poulan 510482083

Cap-Assy tank

$12.99

$

In Stock, only 2 left!

0

14

Poulan 140692088

Breather
(Superseded to 531003347)

$20.99

$

In Stock, only 1 left!

0

15

Poulan 999966089

Assy-Cap/Breather

$

$

Not available

16

Poulan 545145480

Band

$

$

Not available

17

Poulan 545145479

Fuel Tank

$

$

Not available

18

Poulan 921702110

Clamp

$

$

Not available

19

Poulan 921922086

Tube 2.3x5x93

$

$

Not available

20

Poulan 490432073

Pump-Priming carb

$

$

Not available

21

Poulan 921912136

Tube 3x5x300

$

$

Not available

22

Poulan 921712073

Clamp

$1.49

$

In Stock, Qty 19

0

23

Poulan 921922150

Tube 3x6x160 "A"

$11.99

$

In Stock, only 1 left!

0

24

Poulan 920712142

Grommet-tank
(Superseded to 531004433)

$4.99

$

In Stock, Qty 20+

0

25

Poulan 490192085

Filter-Fuel

$8.99

$

In Stock, Qty 17

0
