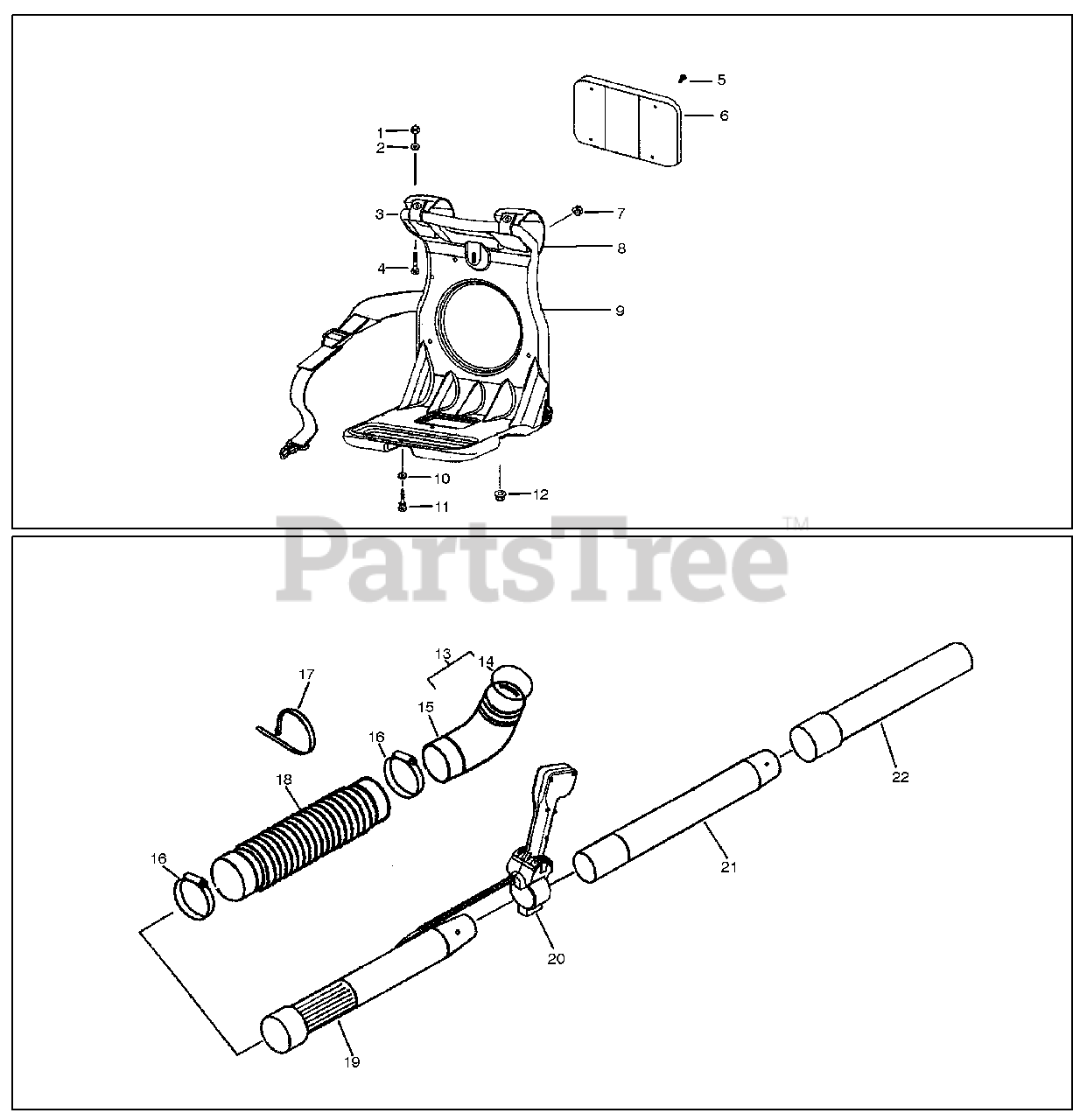

BP 406 - Poulan Pro Backpack Blower (Original) Tube Parts Diagram

Backpack Blower

Tube Parts Diagram

  • Title

1

Poulan 545145468

Nut-Nylon Flange

$

$

Not available

2

Poulan 545145469

Washer

$

$

Not available

3

Poulan 545145470

Shoulder Band

$

$

Not available

4

Poulan 376L0616

Screw-Truss

$

$

Not available

5

Poulan 545145473

Clip

$

$

Not available

6

Poulan 545145474

Pad-Knapsack

$

$

Not available

7

Poulan 545145472

Nut

$

$

Not available

8

Poulan 545145471

Shoulder Band

$

$

Not available

9

Poulan 545145478

Frame-Knapsack

$

$

Not available

10

Poulan 545145469

Washer

$

$

Not available

11

Poulan 545145475

Screw m6x25

$

$

Not available

12

Poulan 545145472

Nut

$

$

Not available

13

Poulan 545145481

Elbow Pipe C.P.

$

$

Not available

14

Poulan 545145482

O-Ring

$

$

Not available

15

Poulan 545145483

Elbow Pipe

$

$

Not available

16

Poulan 545145484

Hose Band

$

$

Not available

17

Poulan 545145485

Wire Band

$

$

Not available

18

Poulan 545145486

Flex Pipe

$

$

Not available

19

Poulan 545145487

Base Pipe

$

$

Not available

20

Poulan 545145488

Assy-Throttle Lever

$

$

Not available

21

Poulan 545145489

Middle Pipe

$

$

Not available

22

Poulan 545145490

Bend Pipe

$

$

Not available
