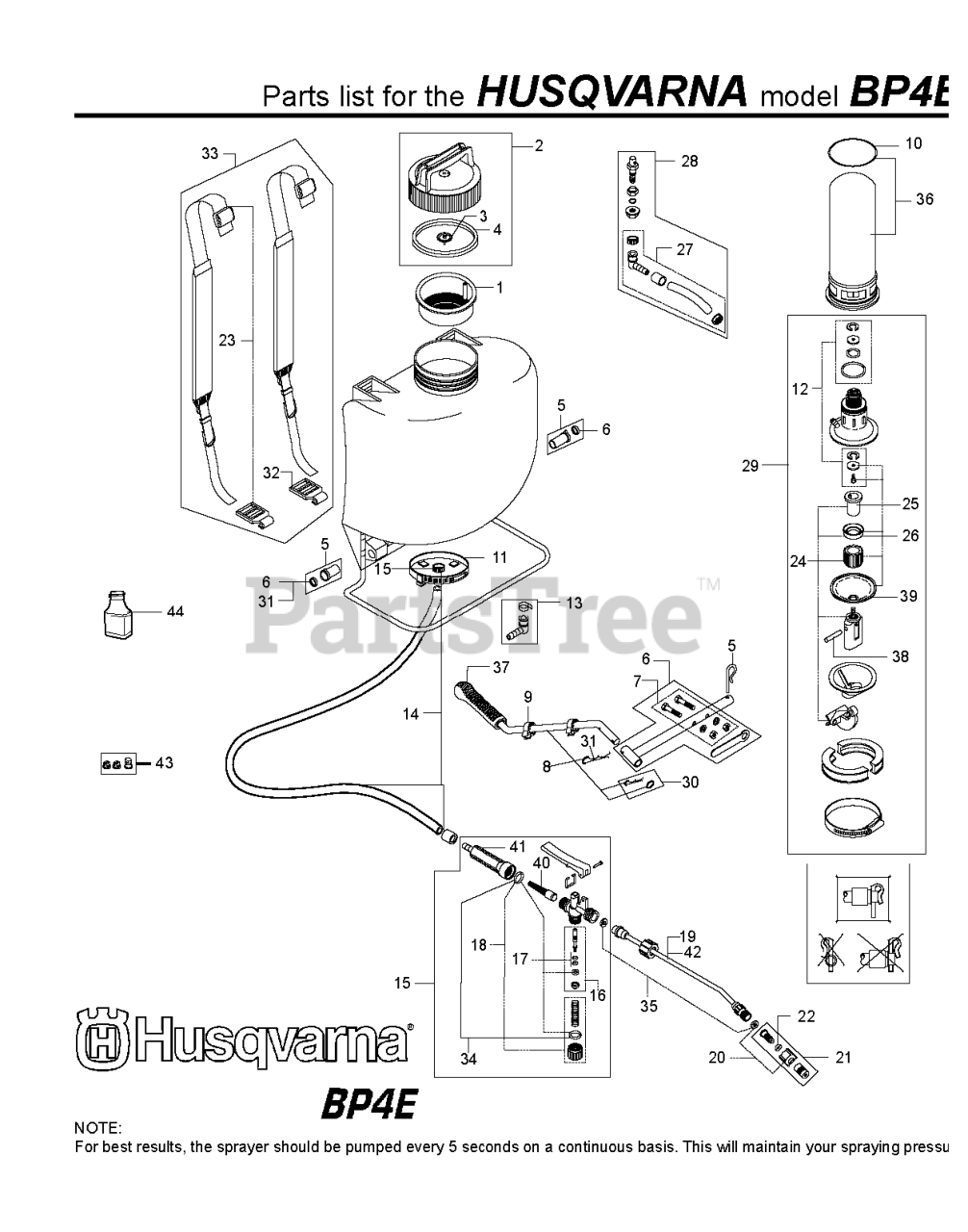

BP 4E (576769102) - Husqvarna Backpack Sprayer (2010-08) PRODUCT COMPLETE Parts Diagram

Backpack Sprayer

PRODUCT COMPLETE Parts Diagram

  • Title

37

Husqvarna 577122201

HANDLE
(Superseded to 577117901)

$

$

Not available

35

Husqvarna 574155501

WASHER SET FOR GUN & NOZZLE

$

$

Not available

43

Husqvarna 574153901

PLASTIC SPRAY TIP SET (2-8004)

Note: 2-8004 & 1 TK5

$

$

Not available

16

Husqvarna 574152301

SPINDLE SET

$56.99

$

Usually ships in 3-10 days

0

25

Husqvarna 577118901

KIT PISTON, DIAPHRAGM & SEALS

$

$

Not available

27

Husqvarna 577119001

HOSE AGITATING & CLAMPS

$

$

Not available

38

Husqvarna 577121901

PIN FOR LEVER PUMP

$

$

Not available

12

Husqvarna 574150701

O-RING & WASHER SET FOR DIAP

$

$

Not available

39

Husqvarna 577122901

HYTREL DIPHRAGM MEMBRANE

$

$

Not available

1

Husqvarna 574149201

TANK STRAINER

$

$

Not available

30

Husqvarna 574151901

LOCKING PIN-PUMP HANDLE (SML)

Note: SMALL

$

$

Not available

21

Husqvarna 574152801

ADJ BRASS NOZZLE WITH HOLDER

$

$

Not available

10

Husqvarna 574150501

PRESSURE TANK O-RING

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 574152401

SPINDLE O-RING SET

$

$

Not available

14

Husqvarna 574151701

HOSE AND 2 HOSE CLAMPS

Note: W/2 CLAMPS

$

$

Not available

3

Husqvarna 574149301

SEAL

$

$

Not available

29

Husqvarna 577119401

PUMP MODULE COMPLETE

$

$

Not available

41

Husqvarna 574156901

GRIP HANDLE FOR KIT 18F

$

$

Not available

34

Husqvarna 574155401

O RING FOR PLUG

$

$

Not available

44

Husqvarna 577123001

SILICONE GREASE ALL SPRAYERS

$

$

Not available

26

Husqvarna 577118801

CUP PISTON VITON

$

$

Not available

40

Husqvarna 574156801

FILTER FOR KIT 18F

$

$

Not available

36

Husqvarna 574155801

SPEC SOLV REST PRESS CHAMBER

$

$

Not available

15

Husqvarna 574152201

COMP SPRAY PISTOL WBUILTNFILTE

$

$

Not available

7

Husqvarna 574150301

SCREW AND NUT SET

$

$

Not available

11

Husqvarna 574150601

RETENTION CLAMP

$

$

Not available

5

Husqvarna 574149501

NYLON BEARING

$

$

Not available

8

Husqvarna 577117901

HANDLE PUMP FOLDBACK W/BALLGRP

$

$

Not available

23

Husqvarna 574155201

BELT HOOK AND BUCKLE

$

$

Not available

18

Husqvarna 574152501

PLUG SET

$

$

Not available

32

Husqvarna 574154401

BELT HOOK

$

$

Not available

13

Husqvarna 574151601

90 DEGREE FITTING & CLAMP

$

$

Not available

20

Husqvarna 574152701

NOZZLE HOLDER

$

$

Not available

31

Husqvarna 574152001

LOCKING PIN-PUMP HANDLE (LG)

Note: LARGE

$

$

Not available

4

Husqvarna 574149401

CHECK VALVE FOR CAP

$

$

Not available

9

Husqvarna 577118001

CLIP

$

$

Not available

24

Husqvarna 577118601

HOLDER PISTON PUMP & GUIDE

$

$

Not available

19

Husqvarna 574152601

BRASS SPRAY WAND 20"

$

$

Not available

6

Husqvarna 574149601

PUMP LEVER

$

$

Not available

22

Husqvarna 574154101

SPRAY TIP O-RING SET

$

$

Not available

42

Husqvarna 577118301

SPRAY WAND 20" PLASTIC

$

$

Not available

33

Husqvarna 574154501

HVY DTY PAD'D ADJ SHLDER STRAP

$

$

Not available

2

Husqvarna 577117801

LID ORANGE W/LID & CARRY HNDL

$

$

Not available

28

Husqvarna 577119101

HOSE AGITATING CLAMPS & CONNEC

$

$

Not available
