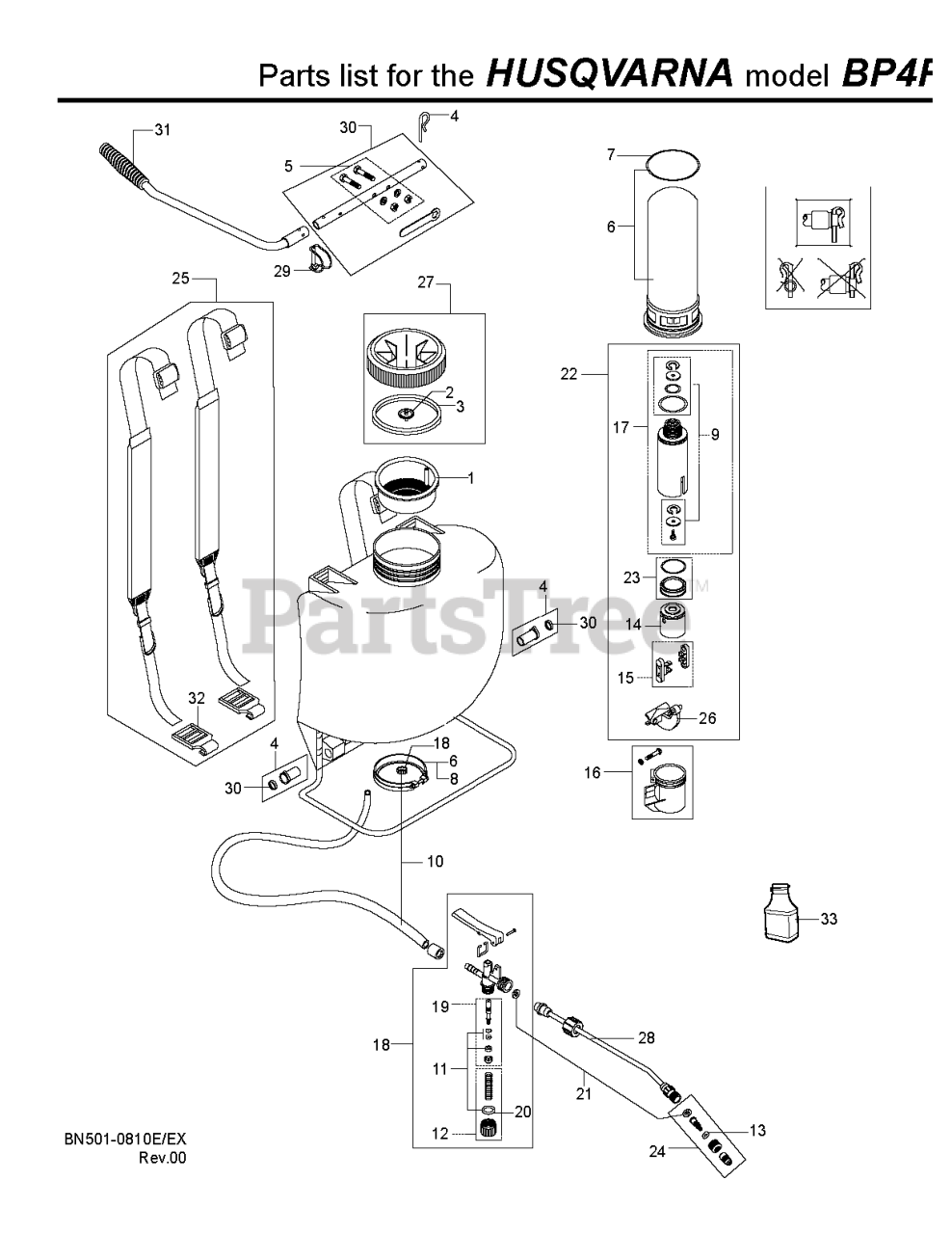

BP 4P (576769104) - Husqvarna Backpack Sprayer (2010-08) PRODUCT COMPLETE Parts Diagram

Backpack Sprayer

PRODUCT COMPLETE Parts Diagram

  • Title

1

Husqvarna 574149201

TANK STRAINER

$

$

Not available

26

Husqvarna 577122101

CRANK

$

$

Not available

33

Husqvarna 577123001

SILICONE GREASE ALL SPRAYERS

$

$

Not available

32

Husqvarna 577122801

BELT HOOK

$

$

Not available

7

Husqvarna 574150501

PRESSURE TANK O-RING

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 574152501

PLUG SET

$

$

Not available

9

Husqvarna 574150701

O-RING & WASHER SET FOR DIAP

$

$

Not available

29

Husqvarna 577122501

PIN CLEVIS W/LOCKING RING

$

$

Not available

27

Husqvarna 577122301

LID ORANGE 6"

$

$

Not available

3

Husqvarna 574149301

SEAL

$

$

Not available

10

Husqvarna 574151701

HOSE AND 2 HOSE CLAMPS

Note: W/2 CLAMPS

$

$

Not available

21

Husqvarna 574155501

WASHER SET FOR GUN & NOZZLE

$

$

Not available

30

Husqvarna 577122601

PUMP LEVER

$

$

Not available

14

Husqvarna 577118501

PISTON ONLY WITH BRASS PIN

$

$

Not available

4

Husqvarna 574149501

NYLON BEARING

$

$

Not available

25

Husqvarna 577122001

RP SHOULDER STRAP PADDED AJ
(Superseded to 581281601)

$

$

Not available

17

Husqvarna 577119501

CYLINDER ASSY

$

$

Not available

19

Husqvarna 577120701

SPINDLE PLASTIC COMPLETE

$

$

Not available

22

Husqvarna 577121401

G8 PISTON & CYLINDER COMPLETE

$

$

Not available

2

Husqvarna 574149401

CHECK VALVE FOR CAP

$

$

Not available

6

Husqvarna 577118101

TANK PRESSURE

$

$

Not available

23

Husqvarna 577121501

PISTON CUP G8

$

$

Not available

28

Husqvarna 577122401

SPRAYER

Note: 20.5"

$

$

Not available

13

Husqvarna 574154101

SPRAY TIP O-RING SET

$

$

Not available

20

Husqvarna 577121101

O-RING PLUG

$

$

Not available

11

Husqvarna 574152401

SPINDLE O-RING SET

$

$

Not available

18

Husqvarna 577120601

SPRAY GUN W/GRIP & PLASTIC HND

$

$

Not available

24

Husqvarna 577121801

PLASTIC NOZZLE ADJ W/O-RINGS

$

$

Not available

15

Husqvarna 577118701

CONNECTING ROD ASSY

$

$

Not available

16

Husqvarna 577119201

PISTON PROTECTOR COMPLETE

Note: COMPLETE

$

$

Not available

5

Husqvarna 574150301

SCREW AND NUT SET

$

$

Not available

31

Husqvarna 577122701

PUMP HANDLE

$

$

Not available

8

Husqvarna 577118201

CLAMP PLASTIC RETENTION

$

$
