BP 510 (CMXGAAMR51BP) (41AR51BP793) - Craftsman Backpack Blower General Assembly Parts Diagram

Backpack Blower

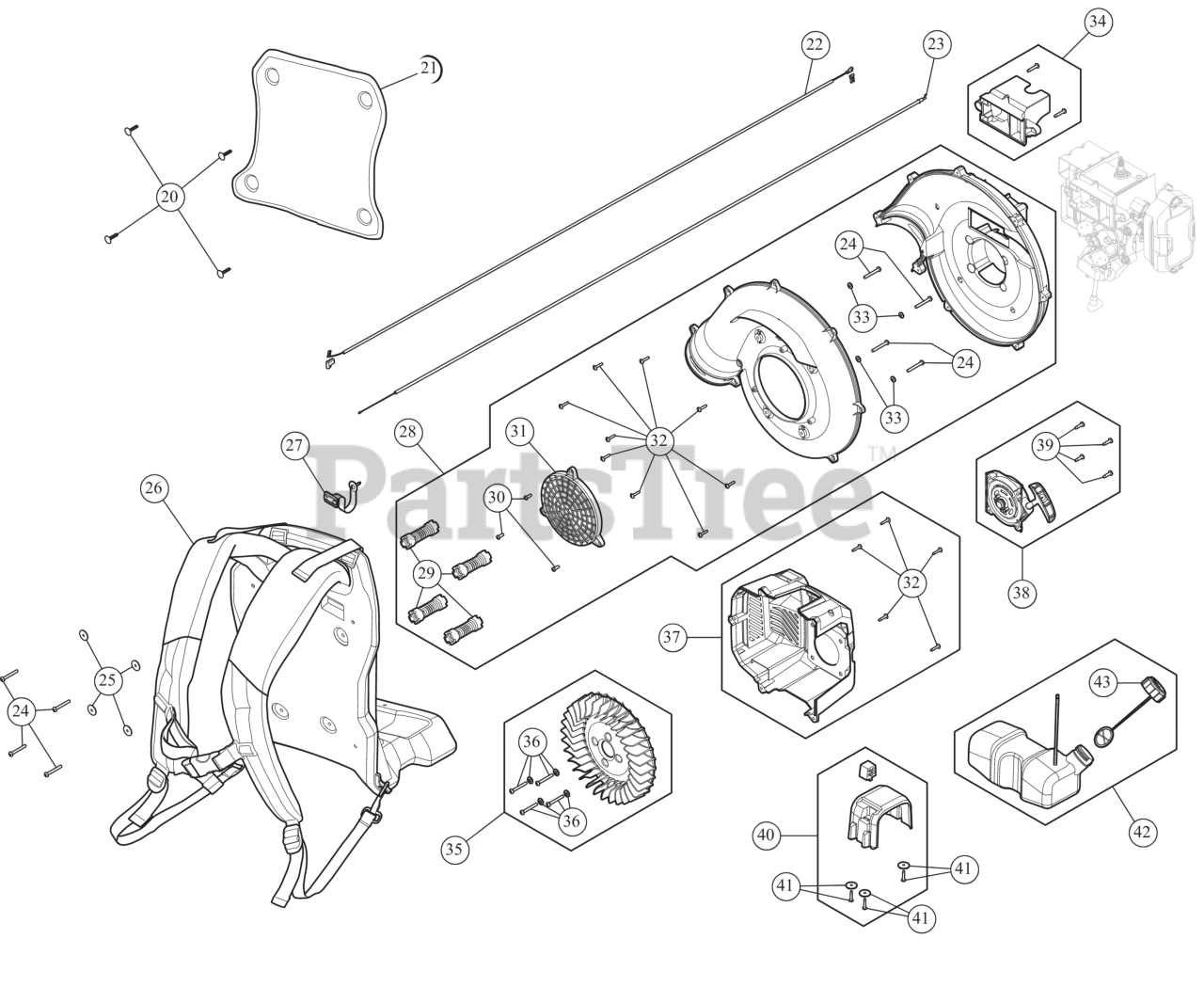

General Assembly Parts Diagram

  • Title

20

MTD 728-05208

RIVET .70X.80

$0.99

$

Usually ships in 3-6 days

0

21

MTD 727-05826

HARNESS BACK PAD

$19.99

$

Usually ships in 3-6 days

0

22

MTD 753-11157

WIRE LEAD

$5.99

$

Usually ships in 3-6 days

0

23

MTD 753-06434

THROTTLE CABLE

$8.49

$

Usually ships in 3-6 days

0

24

MTD 9689A

SCREW

$11.99

$

In Stock, only 1 left!

0

25

MTD 753-11195

FLAT WASHER 0.195X0.810X0.062

$5.49

$

Usually ships in 3-6 days

0

26

MTD 731-22715A

BACKPACK HARNESS

$59.99

$

In Stock, Qty 10

0

27

MTD 727-05494

TETHER STRAP

$2.49

$

In Stock, only 1 left!

0

28

MTD 753-11158

IMPELLER HOUSING

Note: (Incl. 24, 29 - 33)

$34.99

$

In Stock, only 1 left!

0

29

MTD 753-11159

INSULATOR MOUNT

$13.99

$

Usually ships in 3-6 days

0

30

MTD 1755

SCREW-10-9 x .50

$3.99

$

Usually ships in 3-6 days

0

31

MTD 753-11160

INTAKE COVER

$4.99

$

Usually ships in 3-6 days

0

32

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

33

MTD 791-182409

WASH, FLAT .437X.2

$4.99

$

In Stock, Qty 5

0

34

MTD 753-11155

ENGINE VENT

$5.49

$

Usually ships in 3-6 days

0

35

MTD 841-015063S

IMPELLER ASSEMBLY

Note: (Incl. 36)

$25.99

$

Usually ships in 3-6 days

0

36

MTD 753-11161

IMPELLER HARDWARE

$8.99

$

Usually ships in 3-6 days

0

37

MTD 753-11156

ENGINE COVER

Note: (Incl. 32)

$7.49

$

Usually ships in 3-6 days

0

38

MTD 753-11162

STARTER

Note: (Incl. 39)

$14.99

$

In Stock, only 4 left!

0

39

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 7

0

40

MTD 753-11164

FUEL TANK BRACKET

Note: (Incl. 41)

$9.99

$

Usually ships in 3-6 days

0

41

MTD 753-11163

FUEL TANK BRACKET HARDWARE

$7.99

$

Usually ships in 3-6 days

0

42

MTD 753-11165

FUEL TANK

Note: (Incl. 43)

$31.99

$

Usually ships in 3-6 days

0

43

MTD 753-06857

FUEL CAP

$7.99

$

In Stock, Qty 16

0
