BRD-2620 - Echo Bed Redefiner Edger (SN: U05715001001 - U05715999999) Redefiner Assembly Parts Diagram

Bed Redefiner Edger

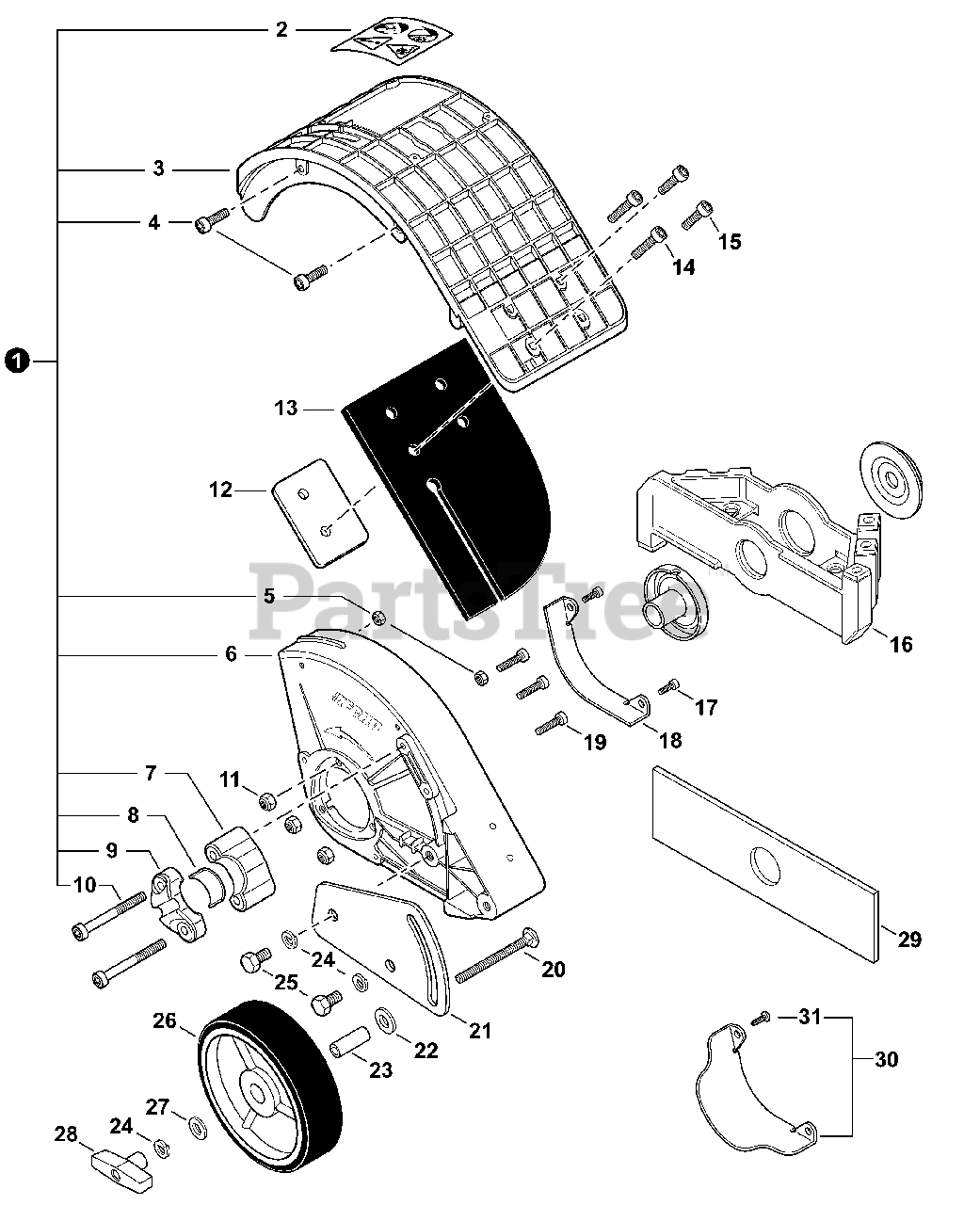

Redefiner Assembly Parts Diagram

  • Title

1

Echo P021035461

BED REDEFINER KIT

Note: Includes ITEMS 2-10

$112.99

$

In Stock, Qty 6

0

2

Echo X505002591

LABEL, CAUTION

$9.49

$

In Stock, only 2 left!

0

3

Echo C550000281

SHIELD, DEBRIS

$14.99

$

In Stock, only 3 left!

0

4

Echo V804000050

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

5

Echo 90056000004

NUT, LOCK 4

$0.99

$

In Stock, Qty 20+

0

6

Echo C550000272

SHIELD, BLADE

$85.99

$

In Stock, only 2 left!

0

7

Echo C518000140

BRACKET - INNER

$1.49

$

In Stock, Qty 6

0

8

Echo V129000130

PAD, FOAM

$1.49

$

In Stock, only 3 left!

0

9

Echo C518000130

BRACKET - OUTER

$1.49

$

In Stock, Qty 6

0

10

Echo V806000070

SCREW - 6×35

$0.99

$

In Stock, Qty 10

0

11

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

12

Echo C552000120

PLATE, FLAP

$2.99

$

In Stock, Qty 12

0

13

Echo C550000290

FLAP, DEBRIS

$11.99

$

In Stock, Qty 7

0

14

Echo V804000010

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 14

0

15

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 11

0

16

Echo 99944208000

BLADE, REDEFINER

$155.99

$

In Stock, only 2 left!

0

17

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 11

0

18

Echo 69902552630

GUARD, SHIELD

$3.49

$

In Stock, Qty 20+

0

19

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

20

Echo 61025055330

BOLT 5/16"-18×2-1/2"

$2.49

$

In Stock, Qty 20+

0

21

Echo C712000110

BRACKET, WHEEL

$8.49

$

In Stock, Qty 7

0

22

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 20+

0

23

Echo 30242452630

COLLAR 12

$3.99

$

In Stock, Qty 20+

0

24

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

25

Echo 90010008014

BOLT 8×14

$0.99

$

In Stock, Qty 20+

0

26

Echo C730000120

WHEEL

$11.99

$

In Stock, Qty 12

0

27

Echo 90060200008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

28

Echo V299000670

KNOB, FASTENER

$3.99

$

In Stock, Qty 20+

0

29

Echo 69601552632

BLADE - 2 PK

$10.99

$

In Stock, Qty 5

0

30

Echo 900104

GUARD KIT, SHIELD

Note: Includes ITEM 31

$10.99

$

In Stock, only 3 left!

0

31

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0
