BRD-280 - Echo Bed Redefiner Edger (SN: T69914001001 - T69914999999) Gear Case Parts Diagram

Bed Redefiner Edger

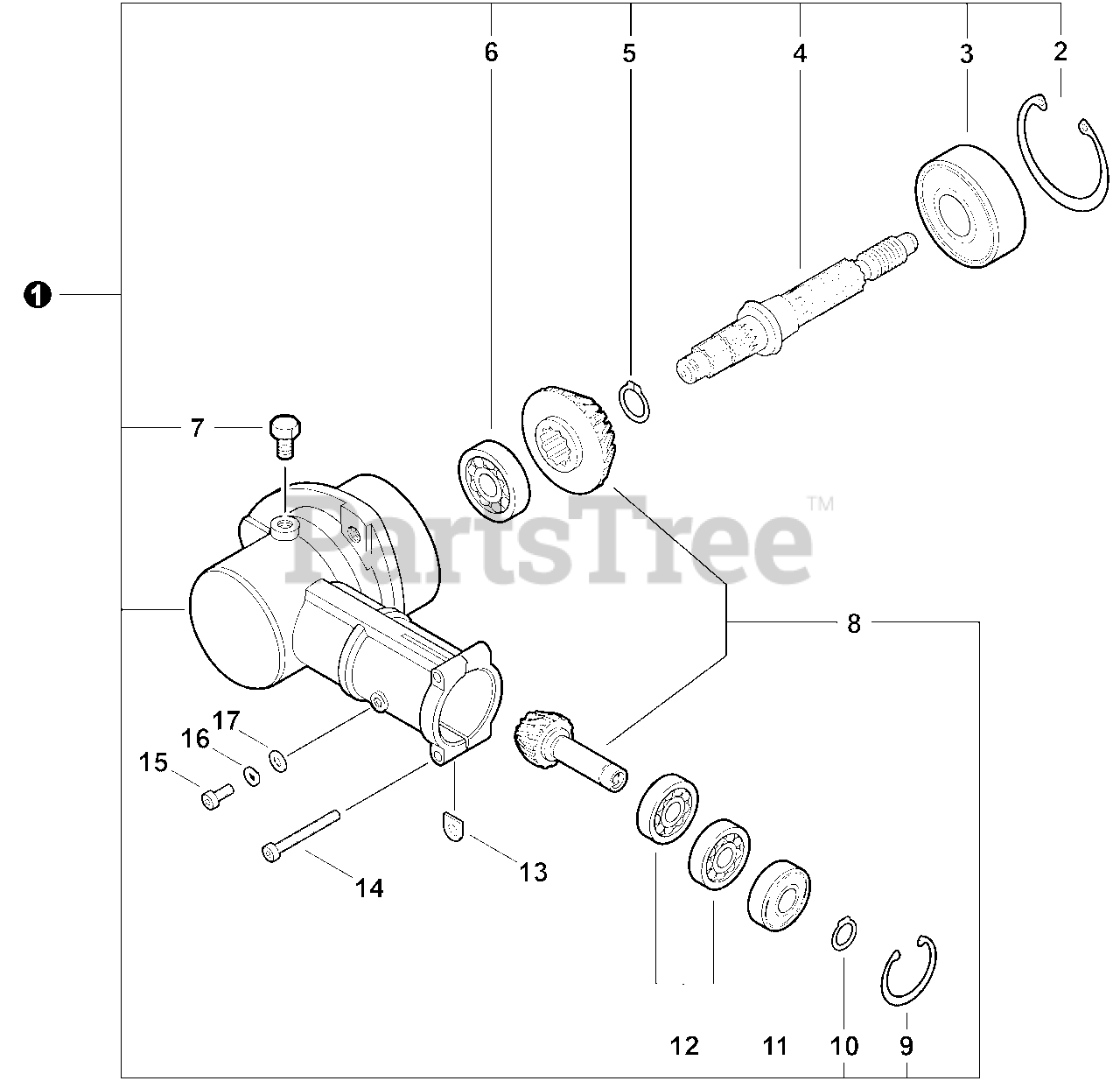

Gear Case Parts Diagram

  • Title

1

Echo C051001230

GEAR CASE ASSY
(Superseded to C051001231)

Note: Includes Items 2-12

$157.99

$

In Stock, only 2 left!

0

2

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 20+

0

3

Echo 90081206302

BEARING, BALL 6302

$19.99

$

In Stock, only 3 left!

0

4

Echo C534001050

SHAFT, GEAR

$67.99

$

In Stock, only 2 left!

0

5

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

6

Echo 90081000629

BEARING, BALL 629

$18.99

$

In Stock, only 2 left!

0

7

Echo 610434-50031

BOLT M8×8

$2.49

$

In Stock, Qty 7

0

8

Echo P021046190

GEAR SET
(Superseded to P021046191)

$82.99

$

Usually ships in 2-4 days

0

9

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

10

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

11

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

12

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

13

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

15

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

16

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

17

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0
