BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 402082300 - 404314158) (2018) Hood and Frame Assembly Parts Diagram

36" Power Broom, Kohler CH270

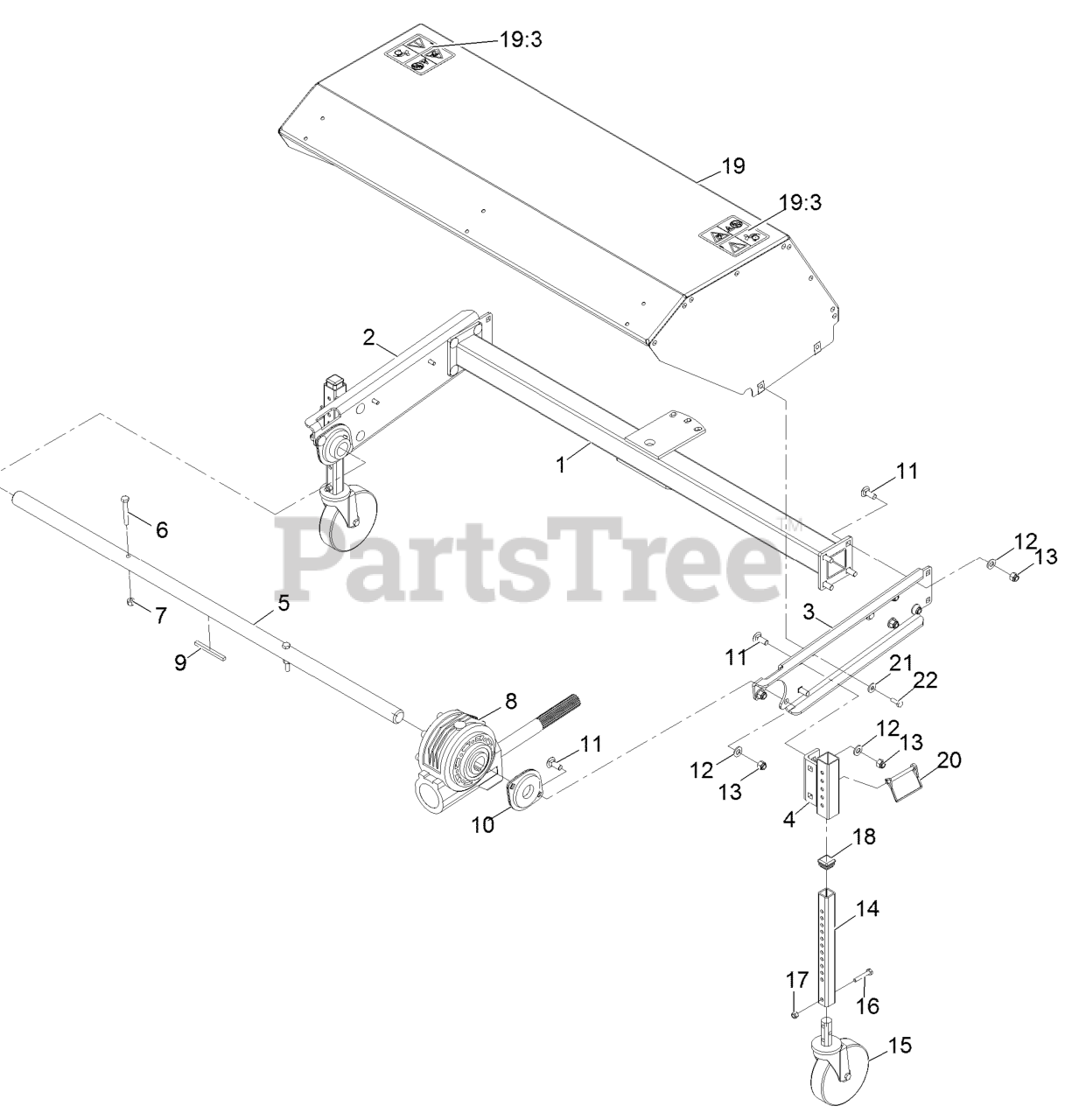

Hood and Frame Assembly Parts Diagram

  • Title

1

Exmark 116-8544

Frame

$454.99

$

Usually ships in 3-6 days

0

2

Exmark 116-8546

Arm-Right

$213.99

$

Usually ships in 3-6 days

0

3

Exmark 116-8545

Arm-Left

$213.99

$

Usually ships in 3-6 days

0

4

Exmark 116-8543

Caster-Bracket

$169.99

$

Usually ships in 3-6 days

0

5

Exmark 116-8114

Shaft

$340.99

$

Usually ships in 3-6 days

0

6

Exmark 322-11

Screw-HH 5/16-18 X 2 1/4
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

7

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

8

Exmark 116-8115

Gearbox-Worm

$2055.99

$

Usually ships in 3-6 days

0

9

Exmark 83-2800

Key-Straight

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 116-8116

Bearing-Flange

$159.99

$

Usually ships in 3-6 days

0

11

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 20+

0

12

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

13

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

14

Exmark 116-8223

Tube-Square, Height Adjust

$71.99

$

In Stock, only 1 left!

0

15

Exmark 116-8117

Caster-Wheel

$106.99

$

Usually ships in 3-6 days

0

16

Exmark 321-9

Screw-HH 1/4-20 X 1 1/2

$4.99

$

In Stock, only 2 left!

0

17

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

18

Exmark 103-3202

Cap

$1.49

$

In Stock, only 1 left!

0

19

Exmark 116-8123

Broom Hood ASM

$357.99

$

Usually ships in 3-6 days

0

19:3

Exmark 116-8140

Decal-Warning

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 116-8224

Pin-Wire, Lock

$20.99

$

In Stock, Qty 13

0

21

Exmark 3256-2

Washer-1/4 Std
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+
