BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 406294345 - 408644345) (Rev A) (2020) Control Panel Assembly Parts Diagram

36" Power Broom, Kohler CH270

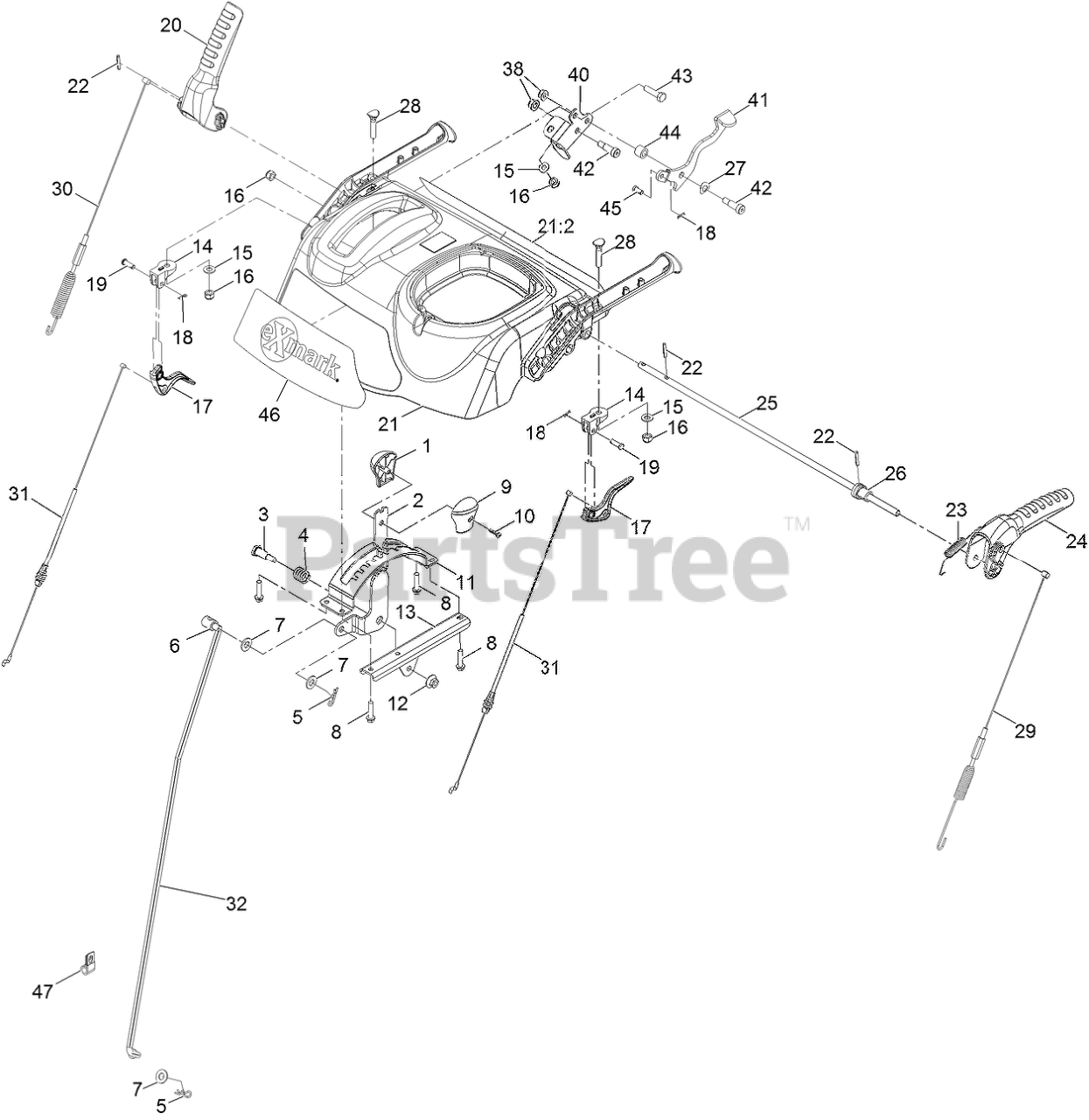

Control Panel Assembly Parts Diagram

  • Title

1

Exmark 106-4423

KNOB-SHIFT, RH

$8.49

$

In Stock, only 4 left!

0

2

Exmark 106-7278-03

SELECTOR-SPEED

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 63-2650

SCREW-SHOULDER

$8.49

$

In Stock, only 2 left!

0

4

Exmark 136-7121

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

6

Exmark 136-7193

TRUNNION-ROD

$8.49

$

In Stock, only 4 left!

0

7

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Exmark 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 12

0

9

Exmark 105-9999

KNOB-SHIFT, LH

$8.49

$

In Stock, only 4 left!

0

10

Exmark 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Exmark 106-7277-03

GUIDE-SELECTOR, SPEED

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 130-9775-03

BRACKET-SELECTOR, SPEED

$11.99

$

Usually ships in 3-6 days

0

14

Exmark 105-9980

MOUNT-LEVER, CLUTCH

$8.99

$

Usually ships in 3-6 days

0

15

Exmark 3256-70

WASHER-FLAT

$1.99

$

In Stock, Qty 10

0

16

Exmark 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 18

0

17

Exmark 106-4505

LEVER-CLUTCH

$9.49

$

Usually ships in 3-6 days

0

18

Exmark 108-2992

PIN-HAIR

$1.49

$

In Stock, only 1 left!

0

19

Exmark 1-808265

PIN-CLEVIS

$3.99

$

In Stock, only 2 left!

0

20

Exmark 106-4413

LEVER-AUGER

$38.99

$

Usually ships in 3-6 days

0

21

Exmark 116-7667

PANEL, CONTROL W/DECAL CE

$191.99

$

Usually ships in 3-6 days

0

21:2

Exmark 116-7668

DECAL-CONTROL PANEL BACK,

$17.99

$

Usually ships in 3-6 days

0

22

Exmark 32121-125

PIN-SPRING

$0.99

$

In Stock, Qty 10

0

23

Exmark 136-7315

SPRING-TENSION

$6.99

$

In Stock, only 2 left!

0

24

Exmark 106-4410

LEVER-TRACTION

$28.99

$

Usually ships in 3-6 days

0

25

Exmark 136-7100

ROD-LOCKOUT

$29.99

$

Usually ships in 3-6 days

0

26

Exmark 107-1043

CAM-LOCKOUT

$26.99

$

Usually ships in 3-6 days

0

27

Exmark 3290-212

WASHER-SPRING

$4.49

$

Usually ships in 3-6 days

0

28

Exmark 107-3018

SCREW-HANDLE

$3.99

$

In Stock, only 3 left!

0

29

Exmark 120-0132

CABLE-TRACTION

$28.99

$

In Stock, only 4 left!

0

30

Exmark 115-5685

CABLE-AUGER

$50.99

$

In Stock, only 2 left!

0

31

Exmark 107-8896

CABLE-CLUTCH

$31.99

$

In Stock, only 2 left!

0

32

Exmark 136-7109

ROD-SHIFT

$28.99

$

In Stock, only 2 left!

0

38

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Exmark 116-7669

BRACKET-LEVER, BROOM ANGL

$21.99

$

Usually ships in 3-6 days

0

41

Exmark 116-7670

LEVER-THUMB, BROOM ANGLE

$27.99

$

Usually ships in 3-6 days

0

42

Exmark 119-6915

SCREW-SHOULDER, HSH

$9.99

$

Usually ships in 3-6 days

0

43

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

44

Exmark 116-7793

TUBE-SPACER

$6.49

$

Usually ships in 3-6 days

0

45

Exmark 146319

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

46

Exmark 116-7786

DECAL-EXMARK LOGO

$20.99

$

Usually ships in 3-6 days

0

47

Exmark 1-323229

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0
