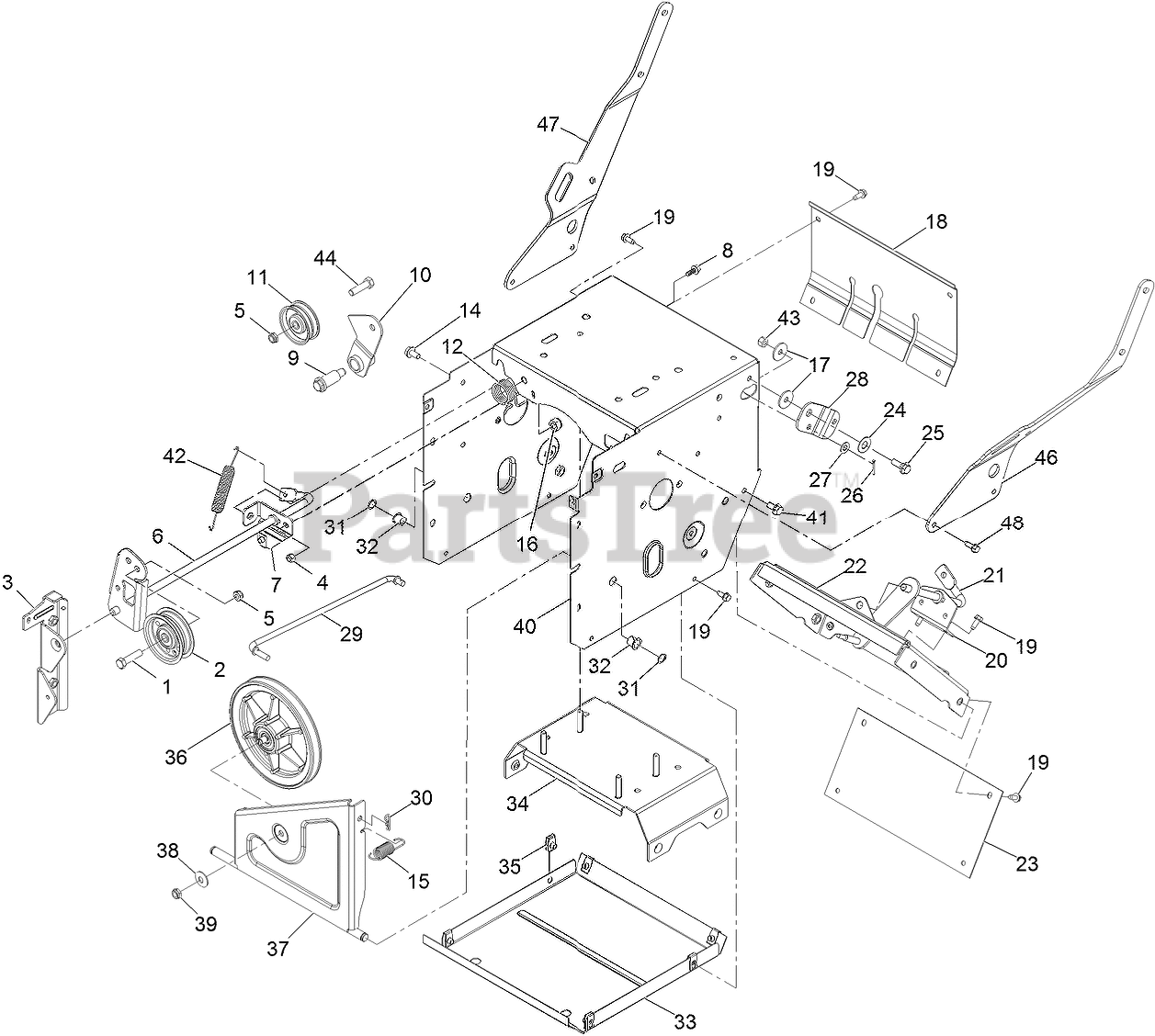

BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 406294345 - 408644345) (Rev A) (2020) Main Frame Assembly Parts Diagram

36" Power Broom, Kohler CH270

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Exmark 92-7104

PULLEY-IDLER

$31.99

$

In Stock, only 2 left!

0

3

Exmark 136-7112

BRACKET-IMPELLER, IDLER

$23.99

$

Usually ships in 3-6 days

0

4

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

6

Exmark 107-3838-03

IMPELLER CLUTCH ASM

$43.99

$

Usually ships in 3-6 days

0

7

Exmark 136-7181

BRACKET-IMPELLER, CLUTCH

$6.99

$

Usually ships in 3-6 days

0

8

Exmark 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

9

Exmark 136-7116

BOLT-SHOULDER

Note: Apply light coat of anti-seize to pivot surface.

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 108-5058

ARM-IDLER, TRACTION

$37.99

$

Usually ships in 3-6 days

0

11

Exmark 3-4244

PULLEY-IDLER

$28.99

$

In Stock, only 2 left!

0

12

Exmark 108-7332

SPRING-TORSION

$6.99

$

In Stock, only 2 left!

0

14

Exmark 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

15

Exmark 107-1003

SPRING-EXTENSION

$5.99

$

In Stock, only 2 left!

0

16

Exmark 3296-76

NUT-LOCK, NI

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 5-4460

WASHER-PIVOT

$8.49

$

In Stock, only 3 left!

0

18

Exmark 108-0022-03

COVER-UPPER

$18.99

$

Usually ships in 3-6 days

0

19

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

0

20

Exmark 136-7114

BRACKET-SHIFT, ROD

$6.99

$

Usually ships in 3-6 days

0

21

Exmark 136-7106

TRACTION LEVER ASM

$53.99

$

Usually ships in 3-6 days

0

22

Exmark 108-0026-03

SHIFT PLATE ASM

$59.99

$

Usually ships in 3-6 days

0

23

Exmark 106-7345-03

COVER-LOWER

$12.99

$

Usually ships in 3-6 days

0

24

Exmark 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

25

Exmark 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, only 3 left!

0

26

Exmark 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Exmark 136-7110

BELLCRANK

$6.99

$

Usually ships in 3-6 days

0

29

Exmark 136-7101

LINK-SPEED, CONTROL

$15.99

$

Usually ships in 3-6 days

0

30

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

31

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

32

Exmark 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

33

Exmark 106-7330-03

PAN-BOTTOM

$28.99

$

Usually ships in 3-6 days

0

34

Exmark 116-7678

BRACE-FRAME

$66.99

$

Usually ships in 3-6 days

0

35

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

36

Exmark 136-7319

PULLEY-TRACTION ASM

$112.99

$

Usually ships in 3-6 days

0

37

Exmark 136-7118

BRACKET-WHEEL, FRICTION

$85.99

$

Usually ships in 3-6 days

0

38

Exmark 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, Qty 6

0

39

Exmark 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

40

Exmark 120-9832-03

TRACTION FRAME ASM

$210.99

$

Usually ships in 3-6 days

0

41

Exmark 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

42

Exmark 136-7115

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

43

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 13

0

46

Exmark 116-7672-03

BRACE-HANDLE, LH

$48.99

$

Usually ships in 3-6 days

0

47

Exmark 116-7673-03

BRACE-HANDLE, RH

$48.99

$

Usually ships in 3-6 days

0

48

Exmark 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0
